Rifle Scope Product Details

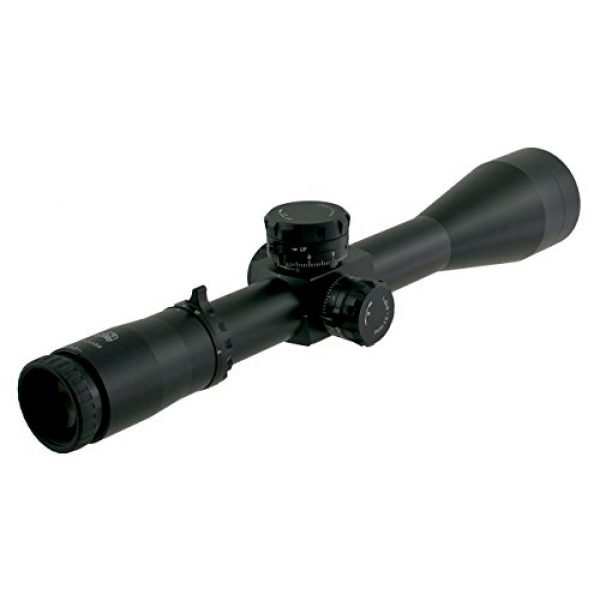

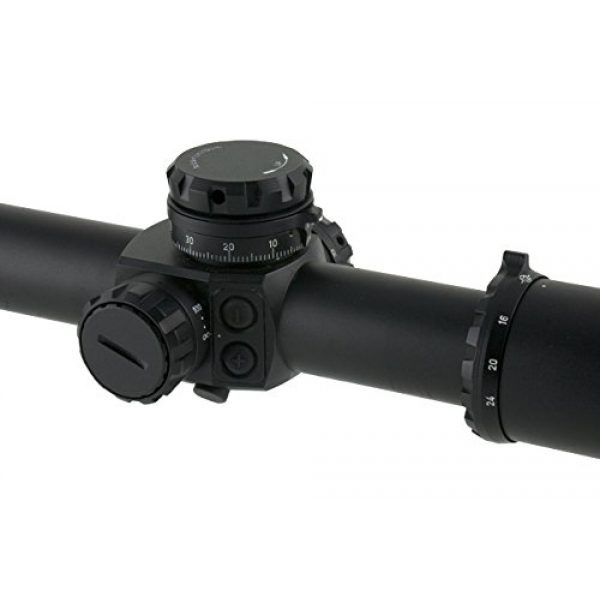

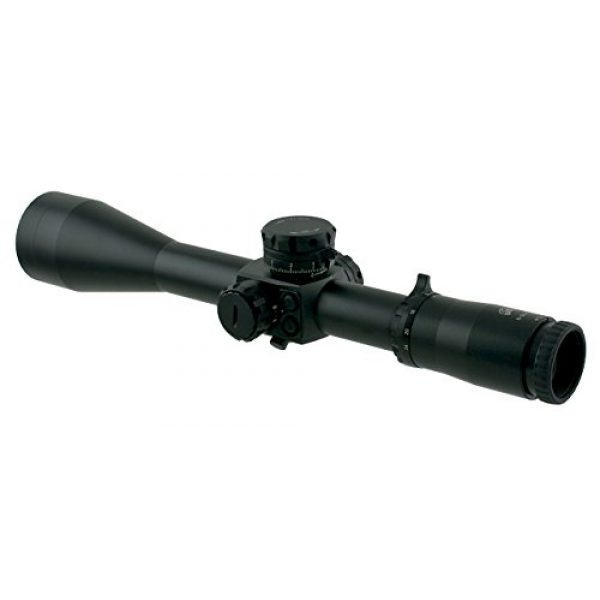

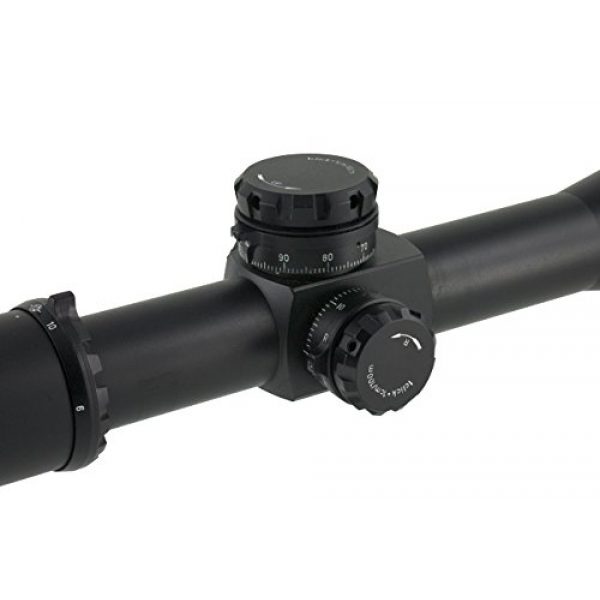

IOR Valdada 6-24×56 35mm Tactical FFP MIL/MIL Illuminated MP-8 Xtreme X1 SF (We Sell All Products)

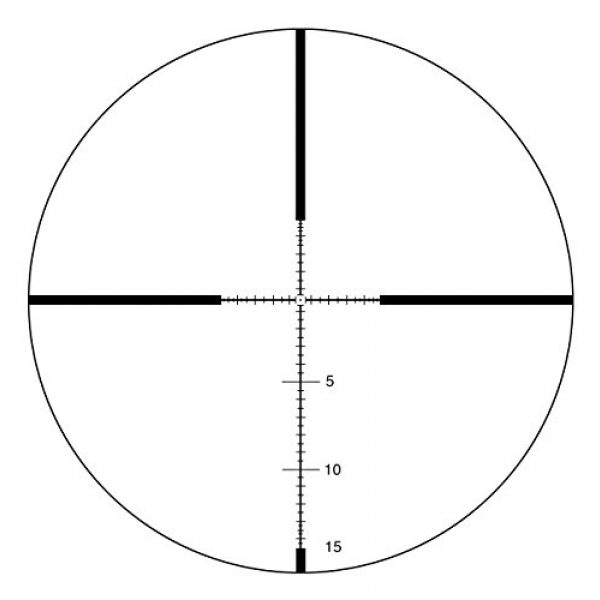

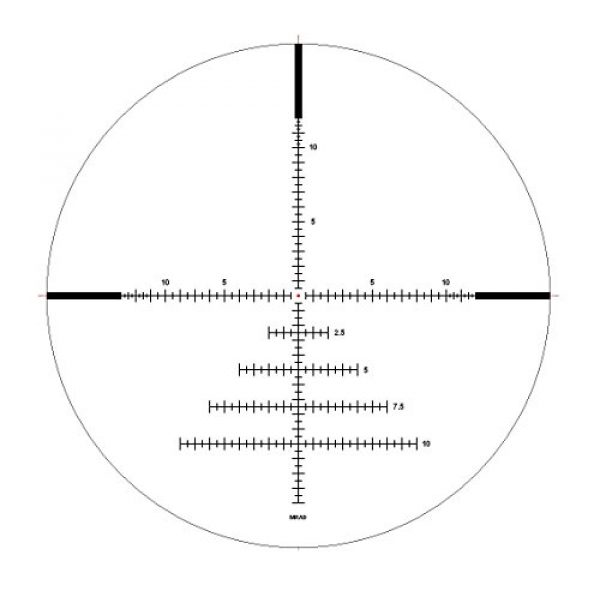

6-24×56 35mm FFP MIL/MIL LONG RANGE New FFP Tactical scope model, with “zero stop”, digital illumination and secondary point of impact variable index. Other features include our Modified MP-8 dot reticule, 0.1 MRAD adjustments, SF, 35mm tube, exceptional field of view, great eyerelief and mag lock support system. Glass quality is outstanding, as are the tracking and repeatability of the scope. This is one of the finest FFP scopes ever made. TECHNICAL FEATURES: MAGNIFICATION 6-24X OBJECTIVE SIZE 56 mm FIELD OF VIEW (at 100 yds.) 29 ft – 6 ft EXIT PUPIL 9.33 – 2.33 mm EYE RELIEF 3.75 inches DIOPTRICAL ADJUSTMENT -4 to +4 dpt. RETICULE – RANGE OF ADJUSTMENT 20 MRADS CLICK VALUE 0.1 MRADS TUBE DIAMETER 35 mm LENGTH 16 inches WEIGHT 38 oz. SIDE PARALLAX ADJUSTMENT 30 yds. to infinity
Rifle Scope Product Features
Give Us a Ring at 812-917-5653
Rings Included
Sent Directly From Valdada
About the IOR Valdada Manufacturer
IOR Valdada is a premium supplier for weapon scopes, optics, mounts, and other components used for guns like rifles and long guns. They innovate and supply their scopes and related products making the most of building materials which are resilient and long lasting. This includes the IOR Valdada 6-24×56 35mm Tactical FFP MIL/MIL Illuminated MP-8 Xtreme X1 SF (We Sell All Products) by IOR Valdada. For additional shooting goods, visit their website.
What You Need to Know About Rifle Optics
Rifle scopes enable you to precisely aim a rifle at various targets by aligning your eye with the target over a distance. They accomplish this through zoom by making use of a set of lenses within the scope. The scope’s alignment can be dialed in for the consideration of various environmental things like wind and elevation increases to make up for bullet drop.
The scope’s function is to understand exactly where the bullet will land based on the sight picture you are seeing using the scope as you align the scope’s crosshair or reticle with the intended point of impact. The majority of modern rifle optics have around 11 parts which are found within and externally on the optic. These optic pieces consist of the rifle scope’s body, lenses, elevation turrets, focus rings, and other elements. Learn about the eleven parts of rifle scopes.
About Rifle Optic Varieties
Rifle scopes can be either “first focal plane” or “second focal plane” kind of scopes. The type of focal plane an optic has establishes where the reticle or crosshair is located relative to the optic’s magnification. It literally indicates the reticle is located behind or in front of the magnifying lens of the scope. Selecting the most effective type of rifle optic is based upon what sort of shooting or hunting you anticipate doing.
First Focal Plane Glass Facts
Focal plane scopes (FFP) include the reticle in front of the zoom lens. These styles of scopes are beneficial for:
- Quick acquisition, far away kinds of shooting
- Shooting circumstances where calculations are marginal
- Experienced shooters who have an idea for their aim point “hold over” as well as “lead” ratios for their firearm
- Shooters who do not mind the reticle is bigger and occupies more visual sight room than a SFP reticle
Second Focal Plane Glass
Second focal plane scopes (SFP) come with the reticle behind the magnification lens. In the FFP example with the SFP scope, the 5x “zoom” 100 yard tick reticle measurement would be 1/5th of the non “zoom” tick.
- Far away forms of shooting where shooters have increased time to make ballistic calculations
- Shooting where most of the shots occur within shorter ranges and spaces
- Shooters who select a clearer optic picture without area used up by the enlarged FFP reticle
Rifle Scope Magnification
The amount of zoom a scope offers is figured out by the diameter, density, and curvatures of the lenses inside of the rifle scope. The zoom of the scope is the “power” of the scope.
Fixed Single Power Lens Rifle Glass Info
A single power rifle scope and optic uses a magnification number designator like 4×32. This implies the zoom power of the scope is 4x power and the objective lens is 32mm. The magnification of this kind of optic can not change because it is fixed.
Adjustable Power Lens Scope Facts
Variable power rifle scopes use enhanced power. The power modification is handled using the power ring part of the scope near the rear of the scope by the eye bell.
The Power and Range of Rifle Optics
Here are some recommended scope power settings and the ranges where they may be efficiently used. High power glass will not be as beneficial as lower powered rifle scope glass given that too much magnification can be a negative aspect depending on your shooting distance. The same idea goes for longer distances where the shooter needs to have sufficient power to see exactly where to best aim the rifle.
Rifle Glass Lens Finishing
All top teir rifle optic and scope lenses are covered. Lens coating can be an essential aspect of a rifle system when purchasing high end rifle optics and scope equipment.
Details on Rifle Glass Lens Coatings – HD Versus ED
Some glass producers even use “HD” or high-definition lens coverings which make the most of different processes, rare earth compounds, elements, and polarizations to draw out various colors and viewable target visibility through lenses. This high-def coating is normally used with higher density glass which brings down light’s capability to refract by means of the lens glass. Some scope producers use “HD” to describe “ED” meaning extra-low dispersion glass. ED handles how colors are represented on the chroma spectrum and the chromatic aberration or difference which is similarly called color distortion or fringing. Chromatic aberration may be visible over items with hard edges and outlines as light hits the item from specific angles.
Single Finishing Versus Multi-Coating for Scopes
Various scope lenses can also have different finishings applied to them. All lenses generally have at least some type of treatment or covering applied to them prior to being used in a rifle scope or optic. Because the lens isn’t just a raw piece of glass, they require performance enhancing coatings. It is part of the finely tuned optic. It requires a coating to be applied to it so that the lens will be efficiently functional in many types of environments, degrees of sunlight (full VS shaded), and other shooting conditions.
This lens treatment can protect the lens from scratches while decreasing glare and other less helpful things experienced in the shooting environment while sighting in with the scope. The quality of a single covered lens depends on the scope producer and how much you paid for it.
Some scope makers also make it a point to specify if their optic lenses are coated or “multi” coated. Being “better” depends on the manufacturer’s lens treatment technology and the quality of products used in constructing the rifle scope.
Glass Lens Anti-water Finish
Water on a lens doesn’t assist with keeping a clear sight picture through a scope at all. Lots of top of the line and military grade scope companies will coat their lenses with a hydrophobic or hydrophilic covering.
Alternatives for Installing Rifle Scopes on Firearms
Mounting solutions for scopes are available in a few choices. There are the standard scope rings which are individually mounted to the optic and one-piece scope mounts which cradle the scope. These various types of mounts also typically come in quick release versions which use throw levers which permit rifle operators to quickly mount and remove the scopes.
Hex Key Optic Ring Mounts
Standard, clamp design mounting scope rings use hex head screws to mount to the flattop style Picatinny scope mount rails on rifles. These types of scope mounts use a couple of different rings to support the optic, and are made from 7075 T6 billet aluminum which is designed for long range precision shooting. This type of scope install is fine for rifles which require a long lasting, rock solid mount which will not move no matter how much the scope is moved or abused.
Quick-Release Cantilever Scope Ring Mounts
These types of quick-release rifle scope mounts can be used to rapidly take off a scope and connect it to a different rifle. Numerous scopes can also be swapped out if they all use a similar style mount. These types of mounts come in handy for rifles which are carried a lot, to swap out the optic from the rifle for protecting the scope, or for scopes which are used between multiple rifles or are situationally focused.
Rifle Glass Tube Sealing and Gas Purging
Moisture inside your rifle optic can mess up a day of shooting and your pricey optic by bringing about fogging and producing residue inside of the scope tube. A lot of scopes prevent moisture from getting in the scope tube with a system of sealing O-rings which are waterproof.
Gas Purged Optic Tubes
Another part of preventing the accumulation of moisture within the rifle scope tube is filling the tube with a gas like nitrogen. Given that this space is currently occupied by the gas, the glass is less altered by temp shifts and pressure variations from the external environment which might potentially permit water vapor to permeate in around the seals to fill the vacuum which would otherwise exist. These are good qualities of a decent rifle scope to look for.
