Description
Rifle Scope Product Details

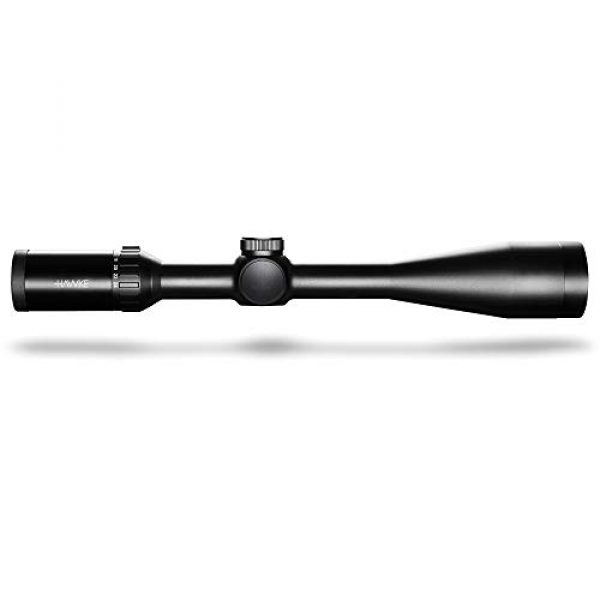

Hawke Vantage SF Riflescope 1″
Rifle Scope Product Features
GREAT VALUE, HIGH PERFORMANCE, VERSATILE SCOPE with 11 layer Fully Multi-Coated lenses, for excellent clarity, light and contrast
SIDE FOCUS CONTROL for parallax adjustment to infinity and 1/4 MOA low–profile ‘no-snag’ fingertip turrets
HALF MIL DOT RETICLE designed to be exact at 10x with multiple aim points for hold over and hold under.
EXCELLENT BUILD QUALITY – with a durable 1 inch mono-tube chassis for superior strength and stability
HAWKE LIFETIME WORLDWIDE WARRANTY – genuine product from the brand leader in affordable, high performance gun scopes, spotting scopes and binoculars
The Vantage Side Focus rifle scopes allow parallax adjustment to infinity with side controls positioned within easy reach on the saddle. The eye relief that’s so important on scopes for guns is a generous 3.5″.
Vantage riflescopes also boast a fast focus eye bell and high torque zoom ring for smooth, easy magnification adjustment which stays firmly in place after the recoil.
Waterproof and shockproof with nitrogen-purged optics to prevent fogging and misting, the riflescope 1″ chassis is machined from a single piece of lightweight, aircraft-grade aluminum and incorporates a specialist erector system to maximize internal stability.

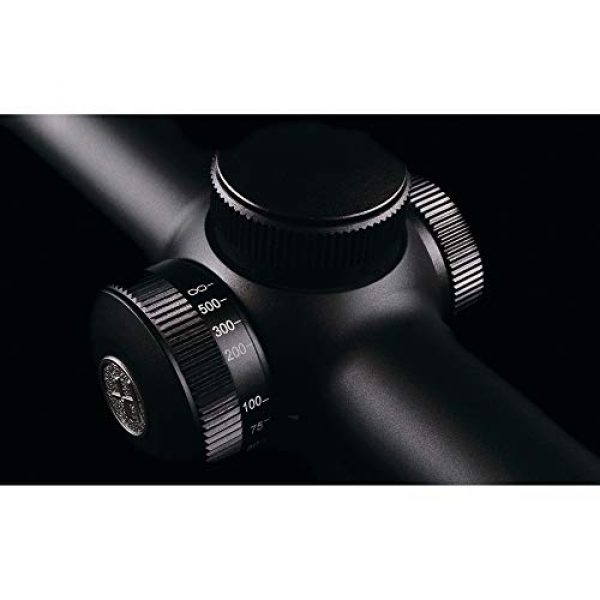

LOW PROFILE 1/4 MOA NO SNAG FINGERTIP TURRETS
Model 14 162, the Hawke Vantage riflescope 6-24×44 SF has smooth, precise side focus controls to adjust the focus distance and parallax setting of the scope, and low profile MOA “no-snag’ fingertip turrets.

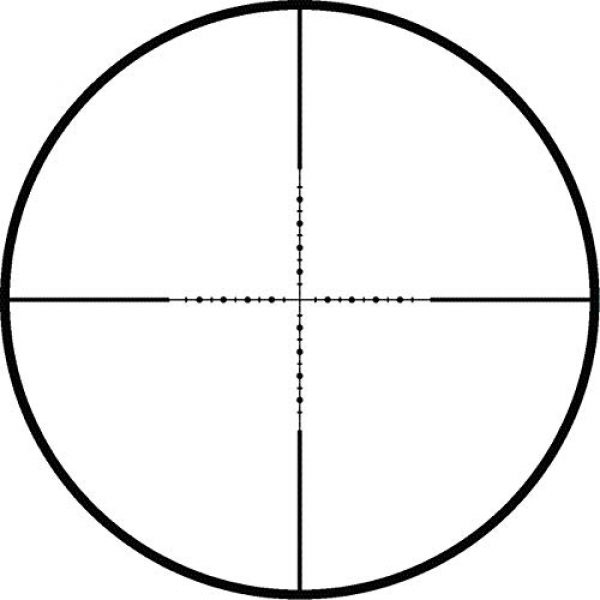

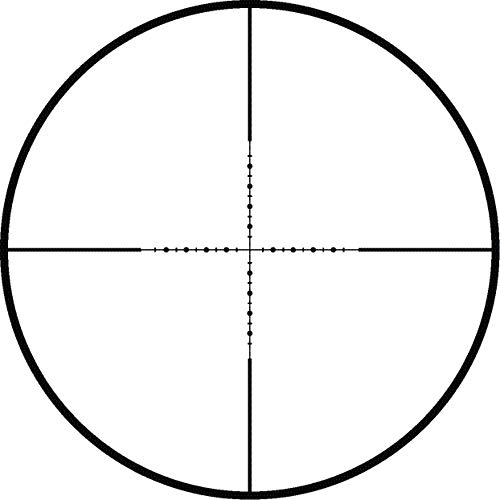

HALF MIL DOT RETICLE
Designed to be exact at 10x. Multiple aim points for holdover and hold under. Between each dot is a dash for more choice when selecting an Aimpoint
NO FAULT PEACE OF MIND
British brand Hawke makes innovative, feature-rich precision instruments that offer great value for money. Exceptional engineering and build quality means that Hawke rifle scopes give you the accurate and precise vision you need. In the event your product becomes damaged or defective Hawke will repair it at no charge to you.
WHAT’S IN THE BOX
6-24×44 SF Riflescope 1″
Lens Cloth
Lens Covers
TECHNICAL
Chassis: 1″ Mono-tube
Optical System: 6-24x
Objective: 44mm
Reticle: Half Mil Dot
Focus/Parallax: Side Focus – 14m / 15yds to Infinity
Field of View: m @100m / ft @100yds7.6 – 1.9m / 22.9 – 5.8ft
Eye relief: 89mm / 3.5″
Length: 342mm / 13.5”
Weight: 505g / 17.8oz
Waterproof, Shockproof, Nitrogen purged. All calibre rated.
FULL FEATURE LIST
11 layer fully multi-coated optics for maximum clarity
Side focus control for parallax adjustment to infinity
1 inch mono-tube chassis for superior strength
14 MOA low profile no-snag fingertip turrets
Fast focus eyebell and high torque zoom ring
Threaded objective/ocular for optional accessories
About the Hawke Scope Maker
Hawke is a premium company for firearm scopes, optics, mounts, and other components used for guns like rifles and long guns. They style and make their scopes, mounts, and related products by using materials which are resilient and long lasting. This includes the Hawke Vantage SF Riflescope 1″ by Hawke. For additional shooting products, visit their site.
What You Need to Know About Rifle Glass
Rifle scopes allow you to specifically aim a rifle at various targets by aligning your eye with the target over a range. They do this through zoom by utilizing a set of lenses within the scope. The scope’s positioning can be adapted for consideration of numerous environmental factors like wind speed and elevation to make up for bullet drop.
The scope’s purpose is to help shooters understand precisely where the bullet will hit based on the sight picture you are viewing via the optic as you line up the scope’s crosshair or reticle with the target. Many contemporary rifle optics have around 11 parts which are arranged within and on the exterior of the optic. These optic pieces consist of the rifle scope’s body, lenses, windage and elevation turrets or dials, objective focus rings, and other elements. See all eleven parts of scopes.
The Types of Rifle Scopes
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. Going for the perfect type of rifle scope is based around what type of shooting you plan on doing.
First Focal Plane Optics
Focal plane scopes (FFP) include the reticle in front of the zoom lens. These kinds of scopes are helpful for:
- Quick acquisition, long distance types of shooting
- Shooting scenarios where estimations are low
- Experienced shooters who understand their aim point “hold over” and also “lead” relationships for their firearm
- Shooters who don’t mind the reticle is enlarged and takes up more visual sight area than a SFP reticle
About Second Focal Plane Optics
Second focal plane optics (SFP) feature the reticle to the rear of the magnifying lens. This triggers the reticle to stay at the same dimensions in connection with the amount of zoom being used. The effect is that the reticle measurements adapt based on the magnification employed to shoot over greater distances considering that the reticle markings represent various increments which can vary with the magnification. In the FFP illustration with the SFP scope, the 5x “zoom” one hundred yard tick measurement would be 1/5th of the non “zoom” tick reticle measurement. These particular varieties of scopes work for:
- Far away types of shooting where shooters have extra time to make ballistic estimations
- Shooting where most of the shots occur within much shorter distances and ranges
- Shooters who prefer a clearer optic sight picture without room taken up by the larger size FFP reticle
Details on Rifle Optic Zoom
The level of scope magnification you need depends upon the kind of shooting you wish to do. Just about every style of rifle glass supplies some level of magnification. The level of zoom a scope supplies is identified by the size, thickness, and curvatures of the lenses within the rifle scope. The magnification of the scope is the “power” of the glass. This implies what the shooter is aiming at through the scope is magnified times the power factor of what can normally be seen by human eyes.
Info About Fixed Power Lens Glass
A single power rifle scope or optic comes with a zoom number designator like 4×32. This indicates the zoom power of the scope is 4x power while the objective lens is 32mm. The zoom of this type of optic can not adjust considering that it is a set power scope.
Adjustable Power Lens Rifle Glass Details
Variable power rifle scopes can be modified between magnified levels. The power modification is achieved by the power ring part of the scope near the back of the scope by the eye bell.
Rifle Scope Power Level and Range Correlation
Here are some advised scope powers and the ranges where they can be successfully used. High power glass will not be as useful as lower magnification optics considering too much zoom can be a negative aspect depending on your shooting distance. The exact same idea applies to extended ranges where the shooter needs adequate power to see exactly where to best aim the rifle.
Lens Covering for Glass
All modern rifle scope and optic lenses are layered. There are different types and qualities of lens finishings. When considering luxury rifle scope units, Lens covering can be a vital element of defining the capability of the rifle. The glass lenses are one of the most vital parts of the optic since they are what your eye looks through while sighting a rifle in on the point of impact. The finish on the lenses protects the lens exterior and also improves anti glare capabilities from refracted direct sunlight and color exposure.
HD Versus ED Rifle Scope Lens Coatings
Some scope brands likewise use “HD” or high-definition lens coatings which use different procedures, chemicals, aspects, and polarizations to draw out various colors and viewable quality through the lens. Some scope manufacturers use “HD” to refer to “ED” implying extra-low dispersion glass.
Single Covering Versus Multi-Coating for Rifle Scopes
Various optic lenses can also have various coatings used to them. All lenses typically have at least some type of treatment or covering used to them prior to being used in a rifle scope or optic.
Single coated lenses have a treatment applied to them which is generally a protective and improving multi-purpose treatment. This lens treatment can safeguard the lens from scratches while lowering glare and other less beneficial things experienced in the shooting environment while sighting in with the scope. The quality of a single covered lens depends upon the scope company and the amount you spent for it. Both are indications of the lens quality.
Some scope makers also make it a point to define if their optic lenses are covered or “multi” covered. This means the lens has several treatments applied to them. If a lens receives numerous treatments, it can prove that a manufacturer is taking numerous actions to fight various natural elements like an anti-glare finish, a scratch resistant anti-abrasion finishing, followed by a hydrophilic covering. This additionally doesn’t always imply the multi-coated lens is better than a single layered lens. Being “better” is dependent on the producer’s lens treatment solutions and the quality of materials used in building the rifle glass.
Anti-water Lens Coatings
Water on an optic’s lens doesn’t help with keeping a clear sight picture through a scope at all. Many top of the line and premium scope makers will coat their lenses with a hydrophobic or hydrophilic covering. The Steiner Optics Nano-Protection is a fine example of this kind of treatment. It deals with the exterior of the Steiner scope lens so the H2O molecules can not bind to it or create surface tension. The outcome is that the water beads slide off of the scope to maintain a clear, water free sight picture.
Scope Installation Options
Installing options for scopes are available in a few options. There are the standard scope rings which are separately mounted to the scope and one-piece mounts which cradle the scope. These different kinds of mounts also normally can be found in quick release versions which use manual levers which enable rifle operators to rapidly install and remove the optics.
Optic Mounting Solutions with Hex Key Rings
Basic, clamp type mounting scope rings use hex head screws to position to the flattop style Picatinny scope mount rails on rifles. These kinds of scope mounts use a pair of individual rings to support the optic, and are normally made from 7075 T6 billet aluminum or similar materials which are created for long distance accuracy shooting. This form of scope mount is good for rifles which need to have a durable, hard use mount which will not shift no matter just how much the scope is moved or jarring the rifle takes. These are the style of mounts you want for a dedicated scope setup on a long distance scouting or competitors rifle that will almost never need to be changed or recalibrated. Blue 242 Loctite threadlocker can additionally be used on screws to stop the hex screw threads from wiggling out after they are mounted safely in place. An example of these rings are the 30mm style made by the Vortex Optics brand. The set generally costs around $200 USD
Quick-Release Cantilever Optic Rings
These types of quick-release rifle scope mounts can be used to quickly remove a scope from a rifle and reattach it to a different rifle. Multiple scopes can also be switched out if they all use a similar style mount. The quick detach design is CNC crafted from anodized 6061 T6 aluminum and the mounting levers connect tightly to a flat top design Picatinny rail. This permits the scope to be sighted in while on the rifle, taken off of the rifle, and remounted while maintaining precision. These types of mounts are useful and convenient for shooting platforms which are moved around a lot, to remove the scope from the rifle for protection, or for aiming systems which are used between a number of rifles. An example of this mount type is the 30mm mount designed by the Vortex Optics brand. It usually costs around $250 USD
Rifle Glass Tube Sealing and Gas Purging
Moisture inside your rifle scope can mess up a day of shooting and your expensive optic by causing fogging and producing residue inside of the scope tube. Most scopes avoid wetness from going into the scope tube with a system of sealing O-rings which are water resistant.
Info Around Scope Tube Gas Purging
Another component of avoiding the accumulation of wetness inside of the rifle scope’s tube is filling the tube with a gas like nitrogen. Given that this space is already occupied by the gas, the scope is less affected by condition shifts and pressure distinctions from the outdoor environment which could potentially enable water vapor to leak in around the seals to fill the void which would otherwise exist. These are good qualities of a decent rifle scope to seek out.
