Description
Rifle Scope Product Details

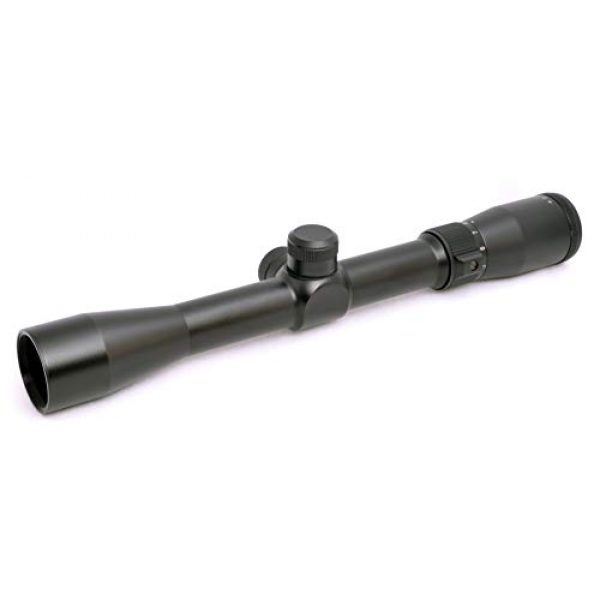

Hammers Plinking Rifle Scope 3-9×32 with 22 Dovetail Rings Fast Focus Eyepiece One Piece Tube
Magnification: 3x -9x
1 inch tube body in matte black anodized finish

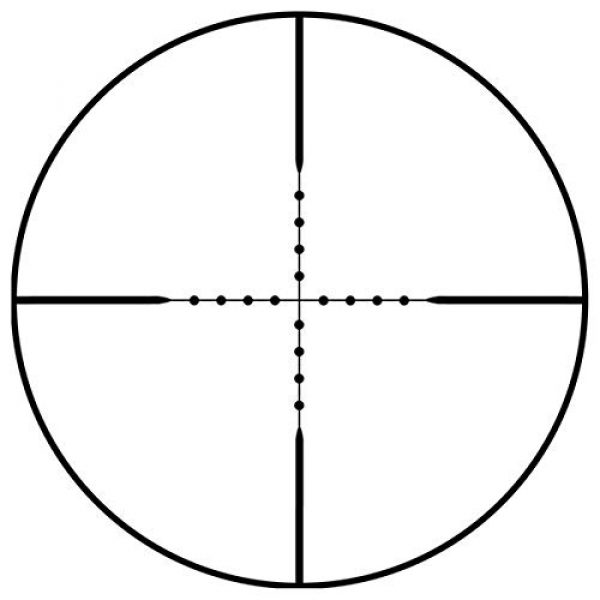

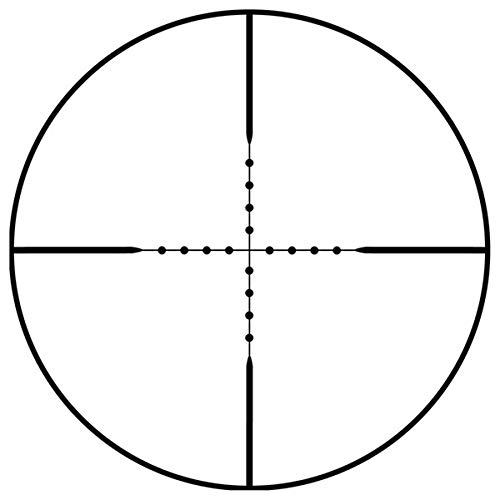

4 Plex reticle
Fully coated 32mm objective lens

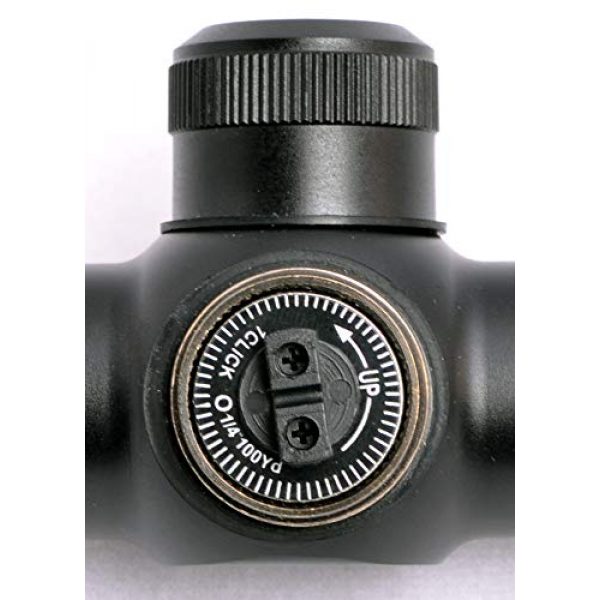

Finger adjustable windage/elevation adjustments with 1/4moa click value
Field of view: 38.96ft-12.57ft @100yards
Parallex free at 100yards
Eye relief: 3.35inch @3x; 2.48inch @9x
Overall lenght of the scope: 12inch
Bungee corded lens caps included

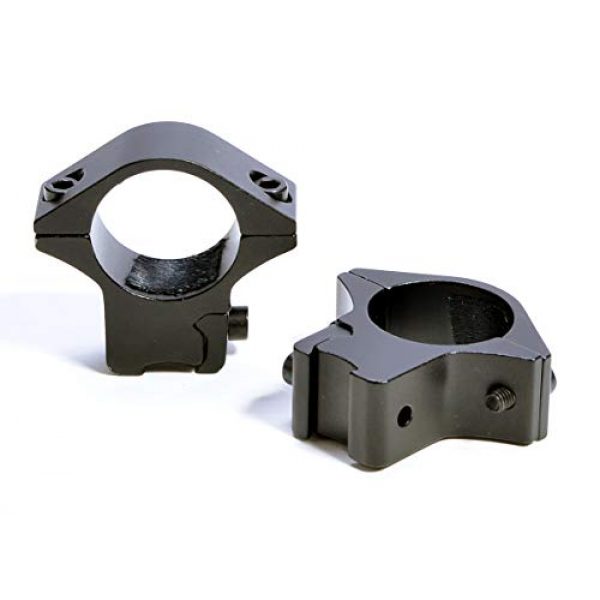

Includes 22 dovetail scope rings
Rifle Scope Product Features
A lightweight good quality riflescope of classic style with Mil-Dot wire reticlewith updated features
Stronger one piece tube construction for better shock resistance and alignment
Fully coated optics
Finger adjustable turret screws
Include 22 dovetail scope rings
About the Hammers Scope Maker
Hammers is a premium manufacturer for rifle scopes, optics, mounting solutions, and other add-ons used for firearms like rifles and long guns. They create and supply their products making the most of materials which are durable and long lasting. This includes the Hammers Plinking Rifle Scope 3-9×32 with 22 Dovetail Rings Fast Focus Eyepiece One Piece Tube by Hammers. For more shooting goods, visit their site.
About Rifle Scopes
Rifle scopes allow you to exactly aim a rifle at various targets by aligning your eye with the target at range. They do this through magnifying the target by using a set of lenses within the scope. The scope’s alignment can be dialed in for the consideration of varied environmental things like wind and elevation increases or decreases to make up for bullet drop.
The scope’s function is to help the shooter understand exactly where the bullet will hit based upon the sight picture you are seeing using the optic as you line up the scope’s crosshair or reticle with the intended target. The majority of modern rifle scopes and optics have around eleven parts which are found inside and externally on the optic. These optic pieces include the rifle scope’s body, lenses, adjustment turrets, objective focus rings, and other components. See all eleven parts of scopes.
Rifle Optic Varieties
Rifle scopes can be either “first focal plane” or “second focal plane” type of optics. Picking the best type of rifle glass is based on what type of shooting you plan on doing.
First Focal Plane Optic Info
Focal plane scopes (FFP) feature the reticle in front of the magnifying lens. This induces the reticle to increase in size based upon the extent of magnification being used. The result is that the reticle measurements are the same at the enhanced range as they are at the non magnified range. As an example, one tick on a mil-dot reticle at one hundred yards without “zoom” is still the same tick at one hundred yards using 5x “zoom”. These kinds of scopes are useful for:
- Quick acquisition, far away kinds of shooting
- Shooting situations where computations are minimal
- Experienced shooters who know their aim point “hold over” plus “lead” equations for their long guns
- Shooters who do not mind the reticle is enlarged and takes up more visual eyesight area than a SFP reticle
About Second Focal Plane Glass
Second focal plane glass (SFP) come with the reticle behind the zoom lens. This triggers the reticle to stay at the same scale relative to the level of zoom being used. The result is that the reticle measurements shift based on the zoom employed to shoot over longer distances due to the fact that the reticle markings present different increments which vary with the magnification. In the FFP example with the SFP glass, the 5x “zoom” 100 yard tick measurement would be 1/5th of the non “zoom” tick. These particular varieties of scopes are handy for:
- Long distance forms of shooting where shooters have more time to make ballistic calculations
- Shooting where most shots occur within shorter spaces and ranges
- Shooters who prefer a clearer optic picture with less space taken up by the larger sized FFP reticle
Rifle Glass Zoom
The level of scope magnification you need depends on the style of shooting you intend to do. Almost every kind of rifle scope gives some amount of magnification. The level of magnification a scope provides is determined by the size, thickness, and curves of the lenses inside of the rifle optic. The zoom of the scope is the “power” of the scope. This means what the shooter is aiming at through the scope is magnified times the power factor of what can typically be seen by human eyes.
Fixed Single Power Lens Optic Details
A single power rifle scope will have a zoom number designator like 4×32. This means the magnification power of the scope is 4x power and the objective lens is 32mm. The zoom of this type of optic can not fluctuate since it is a set power scope.
Variable Power Lens Rifle Glass
Variable power rifle scopes use variable power levels. The power adjustment is accomplished by making use of the power ring part of the scope near the back of the scope by the eye bell.
The Power and Range Correlation of Rifle Optics
Here are some advised scope power levels and the distances where they can be efficiently used. Highly magnified optics will not be as useful as lower magnification optics considering too much zoom can be a negative aspect depending on your shooting distance. The exact same idea relates to extended distances where the shooter needs to have enough power to see precisely where to properly aim the rifle at the target.
Details on Glass Lens Coating
All contemporary rifle optic lenses are covered in special coatings. There are different types and qualities of coverings. Lens finishing is an essential aspect of a rifle’s setup when thinking about high end rifle optics and targeting equipment. The glass lenses are one of the most crucial parts of the optic because they are what your eye sees through while sighting a rifle in on the target. The coating on the lenses safeguards the lens surface area as well as assists with anti glare from refracted natural light and color perception.
Info on Lens Coatings – HD Versus ED
Some scope makers also use “HD” or high-def glass finishings that take advantage of various procedures, aspects, polarizations, and chemicals to draw out a wide range of color ranges and viewable target definition through lenses. This high-definition covering is typically used with greater density glass which lowers light’s chance to refract by means of the lens glass. Some scope suppliers use “HD” to describe “ED” indicating extra-low dispersion glass. ED handles how certain colors are represented on the chromatic spectrum and the chromatic aberration or deviance which is also called color distortion or fringing. Chromatic aberration can be noticeable around items with well defined shapes as light hits the item from specific angles.
Single Optic Lens Finishing Versus Multi-Coating
Various scope lenses can even have various coatings applied to them. All lenses typically have at least some kind of treatment or covering applied to them before being used in a rifle scope or optic. This is because the lens isn’t just a raw piece of glass. It becomes part of the carefully tuned optic. It requires a coating to be applied to it so that the lens will be optimally functional in lots of kinds of environments, degrees of sunlight (full VS shade), and other shooting conditions.
Single covered lenses have a treatment applied to them which is generally a protective and improving multi-purpose treatment. This lens treatment can shield the lens from scratches while lowering glare and other less helpful things experienced in the shooting environment while sighting in with the optic. The quality of a single layered lens depends on the scope producer and how much you spent paying for it. Both are signs of the lens quality.
Some scope producers likewise make it a point to specify if their optic lenses are layered or “multi” coated. This means the lens has several treatments applied to the surfaces of the glass. If a lens gets multiple treatments, it can prove that a maker is taking several actions to fight various natural factors like an anti-glare finish, a scratch resistant anti-abrasion finishing, followed by a hydrophilic finishing. This additionally does not necessarily imply the multi-coated lens is much better than a single coated lens. Being “much better” hinges on the maker’s lens treatment techniques and the quality of materials used in constructing the rifle glass.
Hydrophobic Coating for Glass
Water on a lens doesn’t support keeping a clear sight picture through a scope at all. Lots of top of the line or premium scope producers will coat their lenses with a hydrophilic or hydrophobic finish. The Steiner Optics Nano-Protection is a good example of this kind of treatment. It provides protection for the exterior of the Steiner scope lens so the water particles can not bind to it or create surface tension. The outcome is that the water beads move off of the scope to maintain a clear, water free sight picture.
Choices for Mounting Optics on Long Guns
Mounting options for scopes come in a few options. There are the basic scope rings which are separately installed to the scope and one-piece scope mounts which cradle the scope. These various kinds of mounts also normally come in quick release versions which use manual levers which permit rifle operators to rapidly install and dismount the scope.
Hex Key Rifle Glass Rings
Normal, clamp design mounting scope rings use hex head screws to mount to the flattop design Picatinny scope mount rails on rifles. These types of scope mounts use two different rings to support the optic, and are often made from 7075 T6 billet aluminum which is designed for long distance accuracy shooting. This type of scope mount is fine for rifles which need a resilient, sound mounting solution which will not move no matter how much the scope is moved or abused.
Rifle Scope Mounting Solutions with Quick-Release Cantilever Rings
These types of quick-release rifle scope mounts can be used to rapidly remove a scope and attach it to a different rifle. Multiple scopes can even be switched out if they all use a compatible style mount. These types of mounts are handy for rifle platforms which are transported a lot, to remove the optic from the rifle for protection, or for scopes which are used between several rifles or are situationally focused.
About Rifle Scope Tube Sealing and Gas Purging
Moisture inside your rifle glass can mess up a day on the range and your expensive optic by resulting in fogging and creating residue inside of the scope’s tube. A lot of scopes prevent wetness from entering the scope tube with a system of sealing O-rings which are water resistant. Typically, these water resistant scopes can be submerged underneath 20 or 30 feet of water before the water pressure can push moisture past the O-rings. This should be ample humidity avoidance for conventional use rifles for hunting and sporting purposes, unless you plan on taking your rifle on your motorboat and are worried about the scope still working if it goes overboard and you can still retrieve the gun.
Rifle Scope Gas Purging
Another part of avoiding the accumulation of moisture within the rifle scope’s tube is filling the tube with a gas like nitrogen. Considering that this space is currently taken up by the gas, the optic is less altered by condition shifts and pressure differences from the external environment which could possibly enable water vapor to permeate in around the seals to fill the void which would otherwise be there. These are good qualities of a good rifle scope to seek out.
