Description
Rifle Scope Product Details

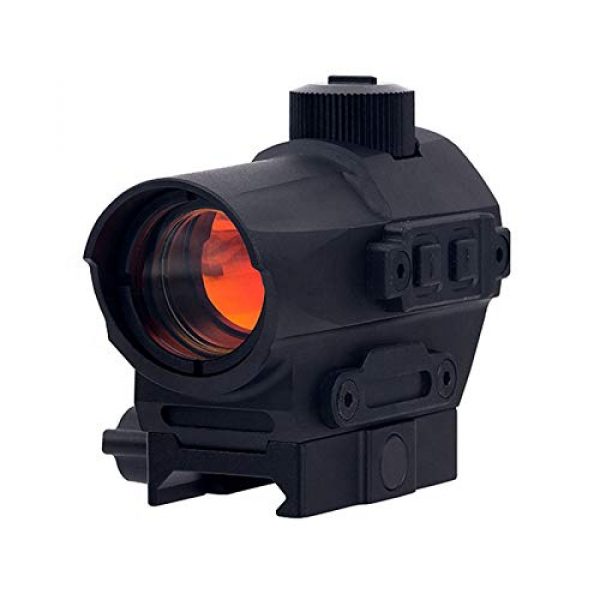

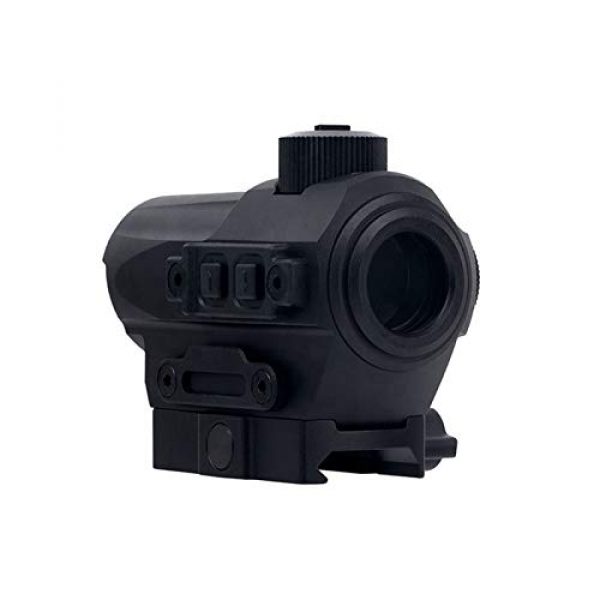

Fashion Sport Outdoor Hunting red dot riflescope 1X27 Red Dot Sight 1.5 MOA Manual Key Switch with 20mm Riser Mount Rifle Scope
Gently Notice:
a. The red dot may appear blurry if the dot intensity is set too high for the ambient light conditions. This is most likely to occur indoors with artificial,fluorescent lighting.
b. An illumination setting that is too high for ambient light conditions typically results in a dot that appears distorted and non-concentric. For the best results, increase the red dot setting until the scope gives the user an aiming reference that is perceptible but not glaring.
c. This red dot be designed for wargame and airsoft only. DO NOT use it onto the fire with much heavy recoil !
Reticle Type: Single-Dot
Using:Outdoor Hunting
Material:6061 aviation aluminum
Reticle color:Red

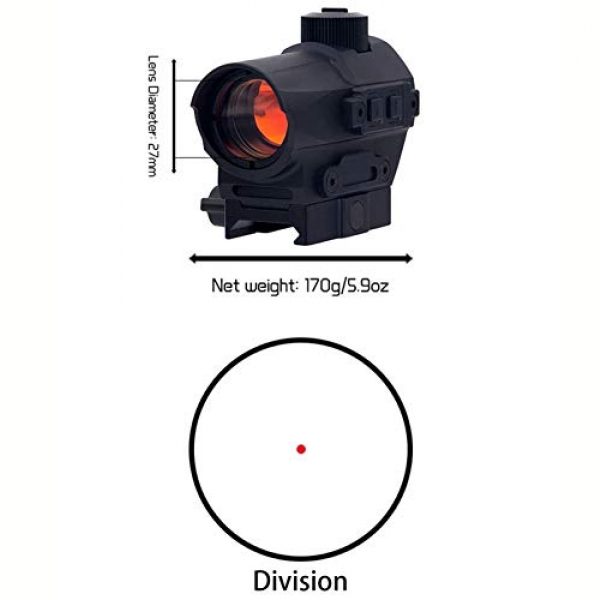

Lens Diameter:27mm
Color:Gray
Magnification:1x
Dot Size:1.5 MOA
Exit pupil:30mm
Rail size:20mm
Brightness Settings:10 daylight
Switch:Manual key switch
Mount:MIL-STD 1913 rail optional quick disconnect
Battery Type:CR2032 * 1(not included)
Net weight: 170g/5.9oz
Package weight: 310g/10.9oz

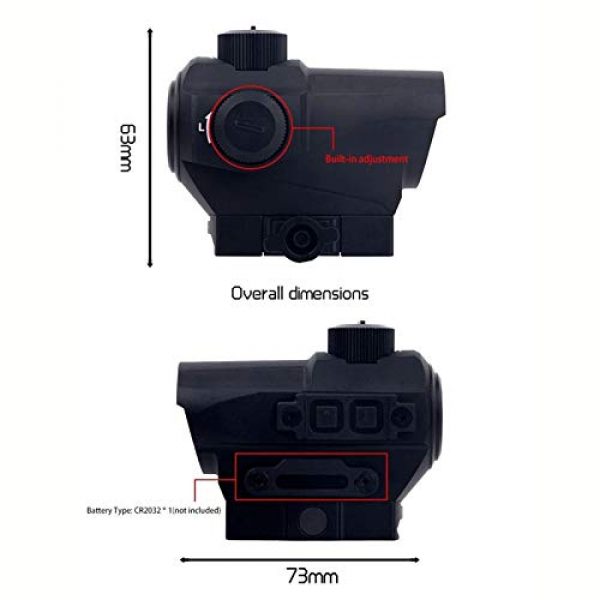

Overall dimensions: 73 x 36 x 63mm(L x W x H)
Package size:13x10x 7cm/5.11×3.9×2.7in (L x W x H)

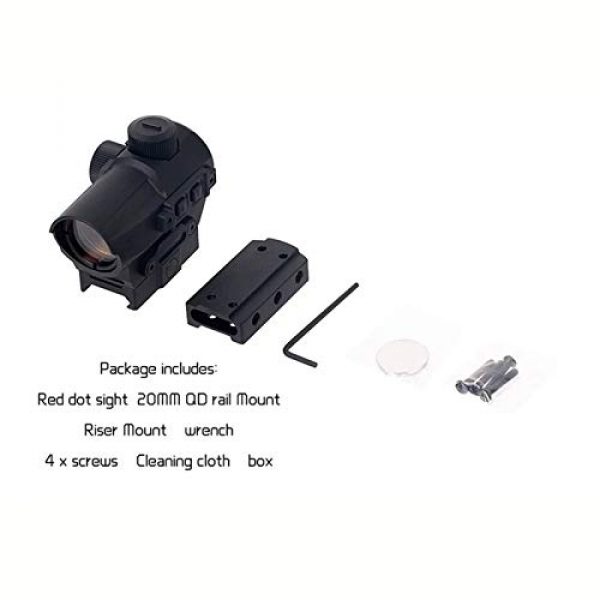

Package includes:
Red dot sight 20MM QD rail Mount
Riser Mount
wrench
4 x screws
Cleaning cloth
Rifle Scope Product Features
1x Magnification

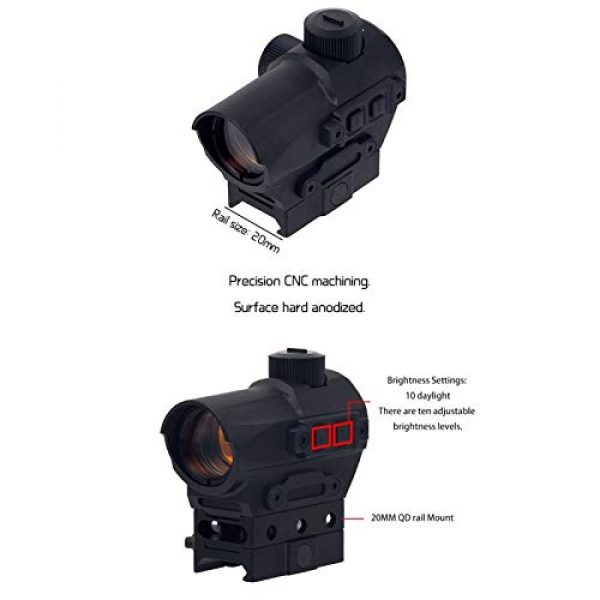

Precision CNC machining.
Surface hard anodized.
There are ten adjustable brightness levels.
Reticle Type:Single-Dot.
About the Fashion Sport Company
Fashion Sport is a premium producer for rifle scopes, optics, mounting solutions, and other components used for firearms like rifles and long guns. They create and manufacture their mounts and related products making the most of materials which are long lasting and resilient. This includes the Fashion Sport Outdoor Hunting red dot riflescope 1X27 Red Dot Sight 1.5 MOA Manual Key Switch with 20mm Riser Mount Rifle Scope by Fashion Sport. For more shooting products, visit their site.
Information Rifle Optics
Rifle scopes enable you to precisely aim a rifle at different targets by aligning your eye with the target at range. They accomplish this through magnifying the target by using a series of lenses inside the scope. The scope’s alignment can be adjusted to account for different natural things like wind speed and elevation to make up for bullet drop.
The scope’s function is to help the shooter understand precisely where the bullet will hit based on the sight picture you are viewing through the scope as you align the scope’s crosshair or reticle with the intended target. The majority of modern rifle scopes have around 11 parts which are arranged inside and externally on the scope. These parts consist of the rifle scope’s body, lenses, adjustment turrets, objective focus rings, and other elements. Learn about the eleven parts of glass.
Rifle Glass Varieties
Rifle scopes can be either “first focal plane” or “second focal plane” kind of scopes. The form of focal plane an optic has identifies where the reticle or crosshair lies in relation to the optic’s zoom. It actually indicates the reticle is behind or ahead of the magnification lens of the optic. Selecting the most effective kind of rifle scope is based on what kind of hunting or shooting you anticipate doing.
About First Focal Plane Glass
Focal plane scopes (FFP) feature the reticle in front of the zoom lens. These types of scopes are useful for:
- Quick acquisition, far away kinds of shooting
- Shooting scenarios where calculations are minimal
- Experienced shooters who have an idea for their aim point “hold over” and “lead” relationships for their firearm
- Shooters who don’t mind the reticle is bigger and takes up more visual eyesight space than a SFP reticle
Second Focal Plane Optic Facts
Second focal plane optics (SFP) feature the reticle to the rear of the zoom lens. This triggers the reticle to remain at the exact same dimensions relative to the quantity of magnification being used. The effect is that the reticle measurements adjust based on the zoom employed to shoot over greater ranges given that the reticle measurements represent various increments which vary with the zoom. In the FFP example with the SFP optic, the 5x “zoom” 100 yard tick reticle measurement would be 1/5th of the non “zoom” tick reticle measurement. These particular kinds of optics are convenient for:
- Long distance kinds of shooting where shooters have extra time to make ballistic estimations
- Shooting where most shots occur within much shorter distances and ranges
- Shooters who want a clearer optic picture without room used up by the larger size FFP reticle
Zoom for Rifle Glass
The amount of zoom a scope provides is determined by the size, thickness, and curvatures of the lenses inside of the rifle scope. The magnification of the scope is the “power” of the scope.
Fixed Single Power Lens Rifle Scopes
A single power rifle optic uses a zoom number designator like 4×32. This implies the magnification power of the scope is 4x power and the objective lens is 32mm. The zoom of this type of optic can not change since it is fixed.
Info About Variable Power Lens Glass
Variable power rifle scopes have adjustable power. These types of scopes will note the magnification level in a configuration such as 2-10×32. These numbers mean the magnification of the scope could be set between 2x and 10x power. This additionally utilizes the power levels in-between 2 and 10. The power manipulation is accomplished by employing the power ring part of the scope near the back of the scope by the eye bell piece.
Optic Power Level and Ranges
Here are some advised scope power settings and the ranges where they can be efficiently used. Consider that high magnification glass will not be as practical as lower powered scopes due to the fact that too much zoom can be a negative thing in certain situations. The very same idea applies to longer distances where the shooter needs sufficient power to see exactly where to properly aim the rifle.
Info on Lens Finishes
All modern-day rifle scope lenses are covered in special coatings. There are different types and qualities of lens finishes. Lens finish can be a crucial element of a rifle’s setup when considering high end rifle optics and scope systems. The glass lenses are among the most significant components of the optic given that they are what your eye looks through while sighting a rifle in on the point of impact. The covering on the lenses protects the lens exterior as well as helps with anti glare from excess natural light and color recognition.
ED Versus HD Optics
Some scope suppliers additionally use “HD” or high-definition lens coatings that take advantage of different processes, elements, polarizations, and chemical applications to enhance separate color ranges and viewable target definition through the lens. This HD finishing is often used with increased density glass which drops light’s chance to refract by means of the lens glass. Some scope suppliers use “HD” to refer to “ED” meaning extra-low dispersion glass. ED handles how certain colors are presented on the chromatic spectrum and the chromatic aberration which is also called color distortion or fringing. Chromatic aberration can be obvious around items with hard outlines as light hits the item from specific angles.
Info on Single Finishing Versus Multi-Coating
Different scope lenses can even have various coatings applied to them. All lenses usually have at least some type of treatment or coating applied to them before they are used in a rifle scope or optic assembly. This is because the lens isn’t simply a raw piece of glass. It becomes part of the finely tuned optic. It must have a coating applied to it so that the lens will be optimally functional in numerous kinds of environments, degrees of sunlight (full VS shade), and other shooting conditions.
Single coated lenses have a treatment applied to them which is generally a protective and improving multi-purpose treatment. This lens treatment can safeguard the lens from scratches while reducing glare and other less useful things experienced in the shooting environment while sighting in with the scope. The quality of a single layered lens depends upon the scope manufacturer and how much you spent on it. Both the make and cost are signs of the lens quality.
Some scope makers also make it a point to define if their optic lenses are coated or “multi” covered. Being “better” depends on the maker’s lens treatment technology and the quality of materials used in constructing the rifle scope.
Anti-water Rifle Glass Lens Covering
Water on an optic’s lens does not support retaining a clear sight picture through a scope whatsoever. Many top of the line and high-end scope producers will coat their lenses with a hydrophilic or hydrophobic covering. The Steiner Optics Nano-Protection is a good example of this kind of treatment. It provides protection for the exterior surfaces of the Steiner glass lens so the water particles can not bind to it or create surface tension. The outcome is that the water beads slide off of the scope to keep a clear, water free sight picture.
Choices for Installing Optics on Long Guns
Installing solutions for scopes can be found in a few options. There are the basic scope rings which are individually installed to the scope and one-piece scope mounts which cradle the scope. These different kinds of mounts also typically come in quick release versions which use throw levers which permit rifle operators to quickly mount and remove the optics.
Hex Key Rifle Scope Ring Mounting Solutions
Standard, clamp-on style mounting optic rings use hex head screws to mount to the flattop design Picatinny scope mounting rails on the tops of rifles. These kinds of scope mounts use double detached rings to support the optic, and are normally constructed from 7075 T6 billet aluminum or similar materials which are designed for long distance accuracy shooting. This kind of scope mount is great for rifles which need a long lasting, hard use mount which will not change regardless of just how much the scope is moved about or abuse the rifle takes. These are the style of mounts you should get for a dedicated optics system on a long distance hunting or competitors long gun which will pretty much never need to be altered or recalibrated. Blue 242 Loctite threadlocker can also be used on the screws to keep the hex screws from wiggling out after they are mounted safely in position. An example of these mounting rings are the 30mm style from the Vortex Optics company. The set normally costs around $200 USD
Quick-Release Cantilever Optic Rings
These types of quick-release rifle scope mounts can be used to rapidly remove a scope from a rifle and reattach it to a different rifle. If they all use a similar style mount, multiple scopes can often be swapped out in the field. The quick detach design is CNC machined from anodized 6061 T6 aluminum and the mounting levers attach nicely to a flat top style Picatinny rail. This permits the scope to be sighted in while on the rifle, removed from the rifle, and remounted while preserving precision. These kinds of mounts are useful and handy for rifles which are moved a lot, to remove the optic from the rifle for protection, or for scopes which are employed between a number of rifles. An example of this mount type is the 30mm mount from Vortex Optics. It normally costs around $250 USD
Sealing and Gas Purging for Optic Tubes
Moisture inside your rifle optic can mess up a day of shooting and your pricey optic by triggering fogging and producing residue inside of the scope tube. Many scopes prevent moisture from entering the scope tube with a system of sealing O-rings which are waterproof.
Gas Purged Scope Tubes
Another element of preventing the accumulation of wetness inside of the rifle scope’s tube is filling the tube with a gas like nitrogen. Since this area is already taken up by the gas, the optic is less altered by temp changes and pressure differences from the outdoor environment which might potentially permit water vapor to leak in around the seals to fill the vacuum which would otherwise exist. These are good qualities of a decent rifle scope to seek out.
