Description
Rifle Scope Product Details

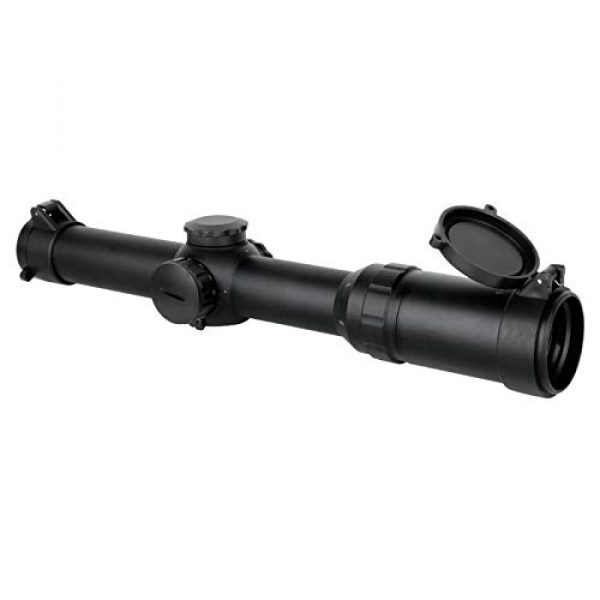

EUTOPETIAN 1-4×24 Rifle-Scope for Hunting-Illuminated Tactical Scope 1-4x Riflescope
EUTOPETIAN rifle scope engineered for hunting. It’s fully coated optics maximize light transmission for a clear and bright image.
With EUTOPETIAN riflescope, we ensure durability and rigidity. Reliable rifle scopes that are sure and appropriate to hunters and shooters.
Tactical Rifle Scope 1-4×24 IR
Specifications:
Model Number: 1-4X24 IR
Magnification Type (Fixed) /Value (Variable): 1-4x
Objective Lens Diameter: 24mm
Ocular Lens Diameter: 34mm
Lens Coating: FMC
Body Tube Diameter: 30mm
Internal Spring Type: Side Conical Spring
Length: 274mm
Weight: 500g
Construction type (1 / 2 Piece): 1
Color / Finish: Black
Waterproof (Y / N): yes
Fogproof (Y / N): yes
Shockproof (Y / N): yes
Ocular Focus (Y / N): yes
Parallax Adjustment (Y / N): 100yds
Parallax Adjustment Range: None
Adjustment Turret Type: None
Windage Adjustment Range: 50MOA-50MOA
Elevation Adjustment Range: 50MOA-50MOA
Click Value/Type: 1/2MOA
Reticle Type (Etched / Wire): Glasses
Eye Relief: 102-96mm
Exit Pupil: 17mm 6mm
Field of View (FOV): 20° 5°5′
Ocular Outside Diameter: 42.5mm
Diopter Compensation: -2 dpr–+2 dpr
NOTE: Mounting Kit is not included
Rifle Scope Product Features
DURABLE & HIGH PRECISION: EUTOPETIAN rifle scope model is 1-4×24 IR, it is shockproof, waterproof, fog, and dustproof. It is fully multi-coated optics that effectively reduce reflected light and increases the transmission of light giving you a brighter image. Its magnification type is 1-4x, the objective lens is 24mm, and has an eye relief of 102-96mm.

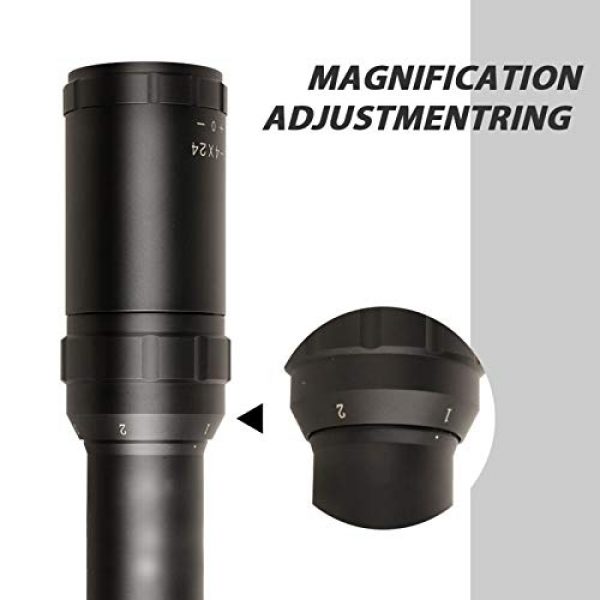

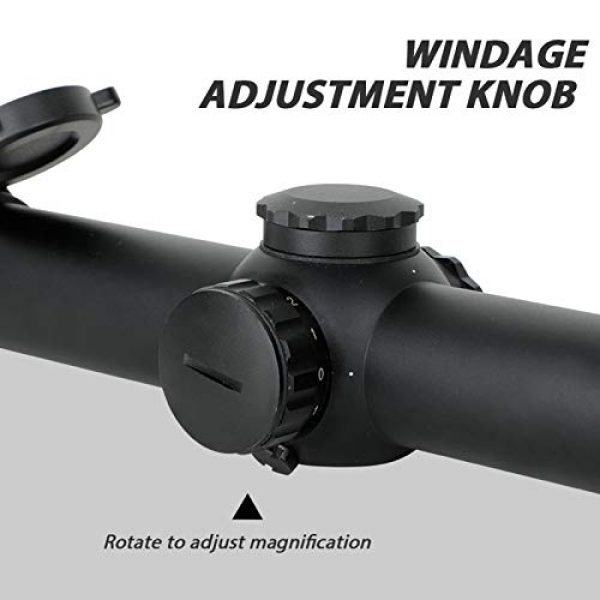

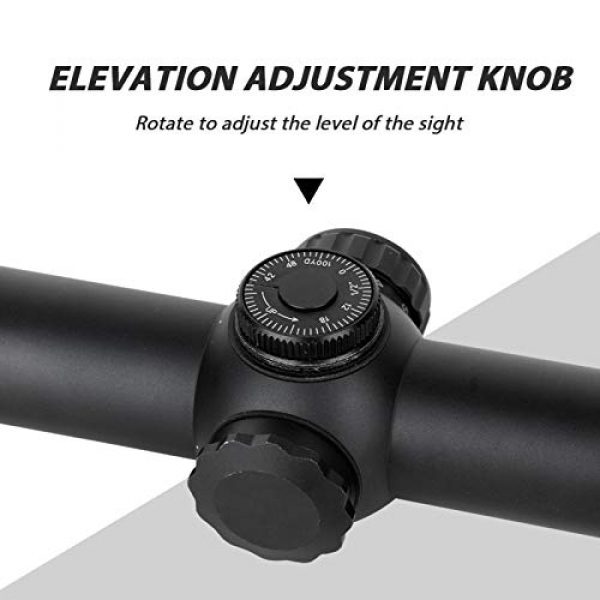

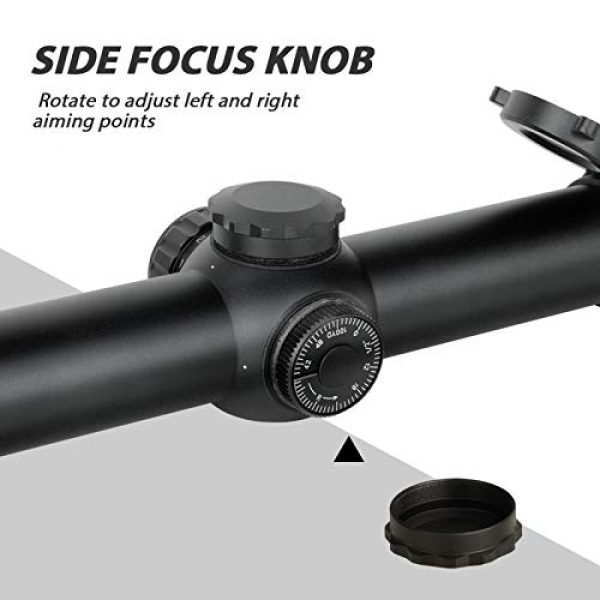

ADJUSTABLE KNOB: EUTOPETIAN rifle scopes windage adjustment knob can be rotated to adjust the magnification. The side focus knob is also rotatable to adjust left and right aiming points, as well as the elevation adjustment knob, you can rotate is to adjust the level of the sight.

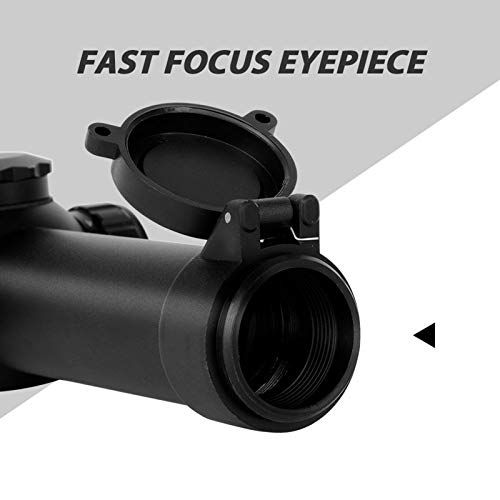

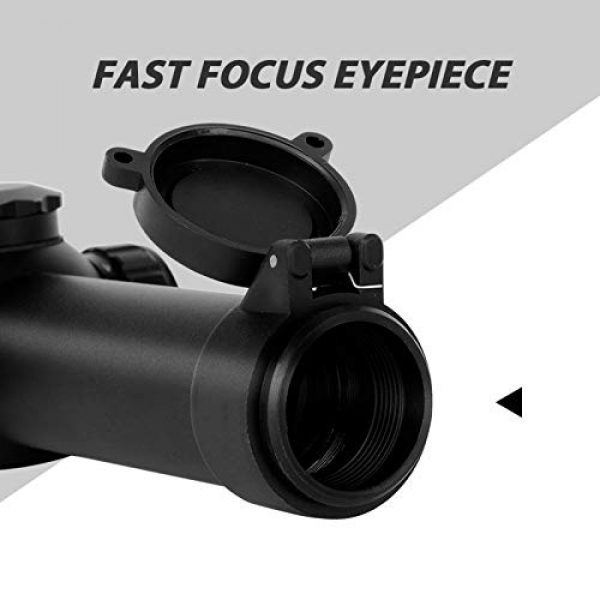

EXCELLENT FOCUS: EUTOPETIAN rifle scopes for hunting fast-focus eyepiece can be adjusted with the rotation of the diopter setting to suit your eyes, reticle, and even the target at the same time. Note: Mounting kit not included.

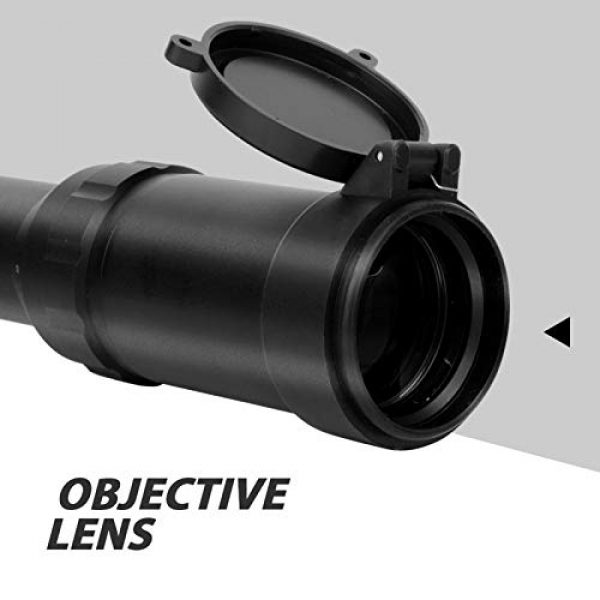

FULLY BENEFICIAL: With the objective lens of this 1-4x scope, it will transmit light back to the ocular lens, which is the lens closest to your eye. It will help you a lot in targeting a subject. Suitable for hunters and shooters. EUTOPETIAN tactical rifle scopes is with easy-to-read ranging information that remains constant regardless of magnification.
Tired of always missing your subject You might want to try EUTOPETIAN rifle scopes and have the finest hunting experience all throughout. So, click now. Concerns or inquiries EUTOPETIAN Customer Service is just one message away. Happy to serve.
About the EUTOPETIAN Scope Maker
EUTOPETIAN is a premium company for firearm scopes, optics, mounts, and other components used for guns like rifles and long guns. They style and make their mounts and related products making the most of building materials which are resilient and long lasting. This includes the EUTOPETIAN 1-4×24 Rifle-Scope for Hunting-Illuminated Tactical Scope 1-4x Riflescope by EUTOPETIAN. For more shooting items, visit their website.
Scope Details
Rifle scopes enable you to exactly align a rifle at different targets by lining up your eye with the target at range. They accomplish this through magnifying the target by employing a series of lenses within the scope. The scope’s positioning can be dialed in for the consideration of numerous environmental elements like wind speed and elevation increases or decreases to account for bullet drop.
The scope’s function is to help the shooter understand exactly where the bullet will hit based upon the sight picture you are seeing with the scope as you line up the scope’s crosshair or reticle with the intended target. Many modern rifle scopes and optics have around eleven parts which are located within and outside of the optic. These optic pieces include the rifle scope’s body, lenses, modification dials, focus rings, and other elements. Learn about the eleven parts of optics.
The Types of Rifle Scopes
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. Choosing the best type of rifle glass is based around what type of shooting you plan on doing.
First Focal Plane Scope Details
Focal plane scopes (FFP) include the reticle in front of the magnification lens. These kinds of scopes are beneficial for:
- Quick acquisition, far away types of shooting
- Shooting situations where calculations are low
- Experienced shooters who have an idea for their target “hold over” and also “lead” relationships for their firearms
- Shooters who don’t mind the reticle is bigger and takes up more visual sight room than a SFP reticle
Second Focal Plane Glass Facts
Second focal plane optics (SFP) include the reticle to the rear of the magnification lens. This causes the reticle to stay at the same scale in relation to the volume of magnification being used. The result is that the reticle dimensions adjust based upon the magnification used to shoot over greater distances because the markings present different increments which can vary with the magnification level. In the FFP example with the SFP glass, the 5x “zoom” 100 yard tick measurement would be 1/5th of the non “zoom” tick. These particular varieties of optics are convenient for:
- Far away kinds of shooting where shooters have increased time to make ballistic computations
- Shooting where most shots take place within shorter ranges and distances
- Shooters who like a clearer optic picture without area used up by the larger size FFP reticle
Ins and Outs of Scope Zoom
The amount of zoom a scope offers is figured out by the diameter, thickness, and curvatures of the lenses inside of the rifle scope. The magnification of the scope is the “power” of the scope.
Single Power Lens Glass
A single power rifle scope and optic comes with a magnification number designator like 4×32. This means the magnification power of the scope is 4x power while the objective lens is 32mm. The magnification of this kind of scope can not adjust since it is a fixed power optic.
Variable Power Lens Optics
Variable power rifle scopes can be tweaked between magnified levels. The power adjustment is performed using the power ring part of the scope near the rear of the scope by the eye bell.
Rifle Scope Power and Ranges
Here are some recommended scope power settings and the distances where they could be effectively used. Highly magnified rifle scope glass will not be as efficient as lower magnification level optics given that too much magnification can be a negative aspect depending on your shooting distance. The very same idea applies to extended ranges where the shooter needs adequate power to see precisely where to best aim the rifle at the target.
Info on Lens Coating
All present day rifle optic and scope lenses are layered. Lens covering is a vital element of a rifle system when looking into high end rifle optics and scope setups.
Details on Glass Lens Coatings – HD Versus ED
Some rifle glass suppliers will also use “HD” or high-definition lens coatings that make the most of different processes, chemical applications, polarizations, and elements to enhance a wide range of color ranges and viewable target definition through the lens. This high-definition coating is commonly used with higher density glass which lowers light’s capability to refract through the lens glass. Some scope vendors use “HD” to describe “ED” signifying extra-low dispersion glass. ED deals with how certain colors are presented on the chroma spectrum and the chromatic aberration or deviance which is similarly called color distortion or fringing. Chromatic aberration is often visible around objects with defined outlines as light hits the item from certain angles.
Optic Lens Single Finishing Versus Multi-Coating
Different optic lenses can also have various coatings applied to them. All lenses typically have at least some type of treatment or covering applied to them before being used in a rifle scope or optic.
Single coated lenses have a treatment applied to them which is normally a protective and boosting multi-purpose treatment. This lens treatment can safeguard the lens from scratches while reducing glare and other less beneficial things experienced in the shooting environment while sighting in with the scope. The quality of a single layered lens depends upon the scope designer and how much you paid for it. Both the make and cost are indicators of the lens quality.
Some scope manufacturers likewise make it a point to specify if their optic lenses are coated or “multi” covered. This implies the lens has multiple treatments applied to them. If a lens gets several treatments, it can indicate that a company is taking multiple actions to fight various natural elements like an anti-glare coating, a scratch resistant anti-abrasion covering, followed by a hydrophilic covering. This additionally does not necessarily imply the multi-coated lens will perform better than a single covered lens. Being “much better” depends on the manufacturer’s lens treatment solutions and the quality of materials used in creating the rifle scope.
Hydrophobic Finishing for Scopes
Water on an optical lens does not support maintaining a clear sight picture through a scope at all. Lots of top of the line or high-end optic manufacturers will coat their lenses with a hydrophilic or hydrophobic covering. The Steiner Optics Nano-Protection is a fine example of this type of treatment. It treats the exterior surfaces of the Steiner glass lens so the H2O molecules can not bind to it or create surface tension. The outcome is that the water beads roll off of the scope to keep a clear, water free sight picture.
Options for Installing Glass on Firearms
Mounting options for scopes come in a few options. There are the basic scope rings which are separately mounted to the optic and one-piece scope mounts which cradle the scope. These different types of mounts also typically are made in quick release variations which use toss levers which allow rifle operators to rapidly mount and remove the scope.
Hex Key Optic Rings
Basic, clamp type mounting scope rings use hex head screws to position to the flattop design Picatinny scope mount rails on the tops of rifles. These varieties of scope mounts use double individual rings to support the optic, and are normally constructed from 7075 T6 billet aluminum which are designed for far away precision shooting. This form of scope mount is great for rifle systems which require a resilient, rock solid mount which will not change despite just how much the scope is moved or abuse the rifle takes. These are the design of mounts you really want to have for a devoted scope setup on a long distance scouting or competition long gun that will rarely need to be altered or adjusted. Blue 242 Loctite threadlocker can also be used to prevent the hex screws from wiggling out after they are installed securely in position. An example of these mounting rings are the 30mm type made by Vortex Optics. The set normally costs around $200 USD
Quick-Release Cantilever Rifle Scope Ring Mounting Solutions
These types of quick-release rifle scope mounts can be used to quickly connect and remove a scope from a rifle. Several scopes can also be switched out if they all use a similar designed mount. The quick detach mount style is CNC crafted from anodized 6061 T6 aluminum and the mounting levers fasten firmly to a flat top type Picatinny rail. This enables the scope to be sighted in while on the rifle, taken off of the rifle, and remounted while preserving accuracy. These kinds of mounts are useful and beneficial for rifles which are carried a lot, to remove the scope glass from the rifle for protection, or for aiming systems which are utilized between a number of rifles. An example of this mount type is the 30mm mount from Vortex Optics. It usually costs around $250 USD
What to Know About Glass Tube Sealing and Gas Purging
Moisture inside your rifle optic can destroy a day on the range and your expensive optic by triggering fogging and developing residue inside of the scope tube. A lot of scopes prevent wetness from getting in the optical tube with a system of sealing O-rings which are water resistant. Normally, these water resistant scopes can be submerged under 20 or 30 feet of water before the water pressure can force moisture past the O-rings. This should be sufficient wetness avoidance for basic use rifles for hunting and sporting purposes, unless you anticipate taking your rifle aboard a watercraft and are worried about the scope still working if it falls overboard and you can still recover the gun.
Gas Purged Rifle Glass Tubes
Another component of preventing the buildup of wetness inside of the rifle optic tube is filling the tube with a gas like nitrogen. Since this area is already taken up by the gas, the optic is less impacted by temperature level shifts and pressure variations from the outside environment which might possibly enable water vapor to seep in around the seals to fill the void which would otherwise be there. These are good qualities of a good rifle scope to look for.
