Description
Rifle Scope Product Details

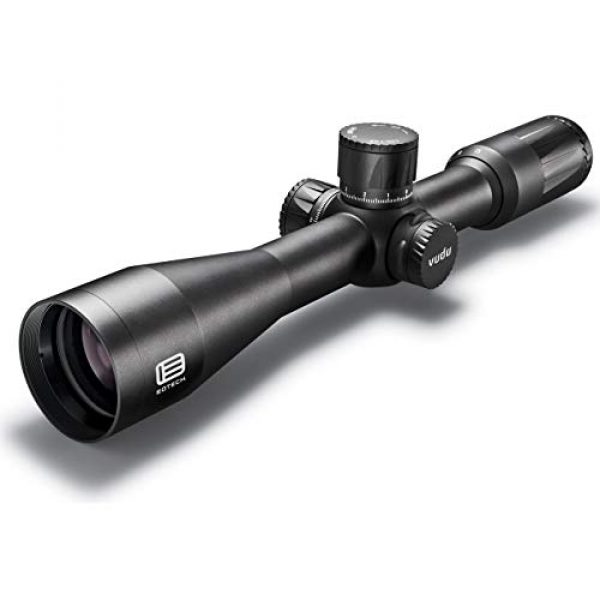

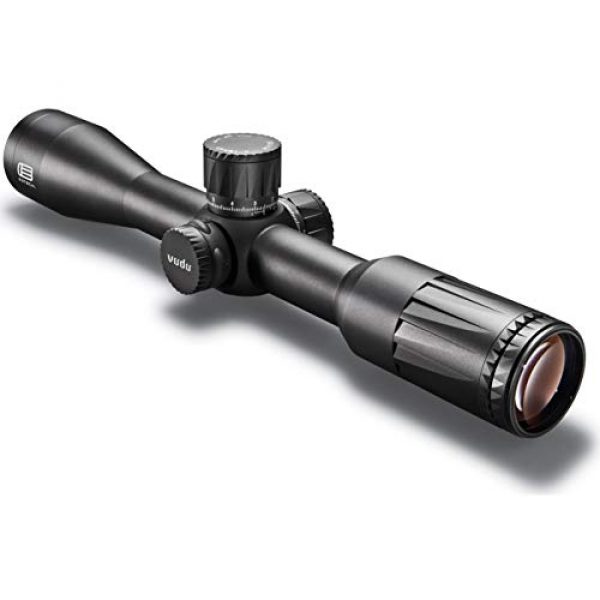

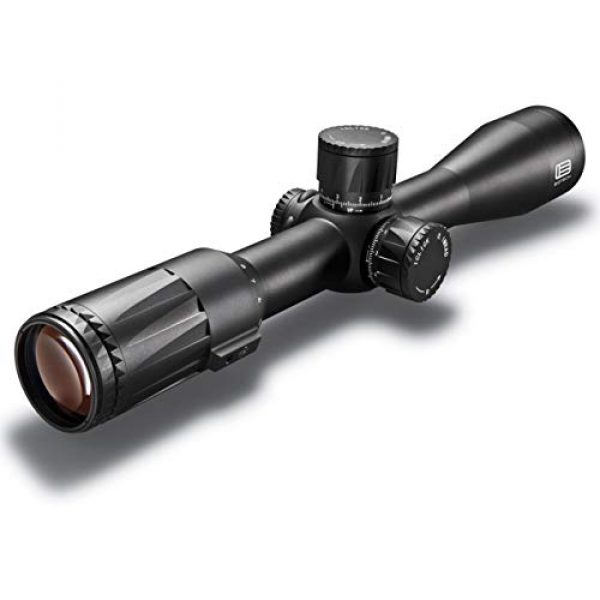

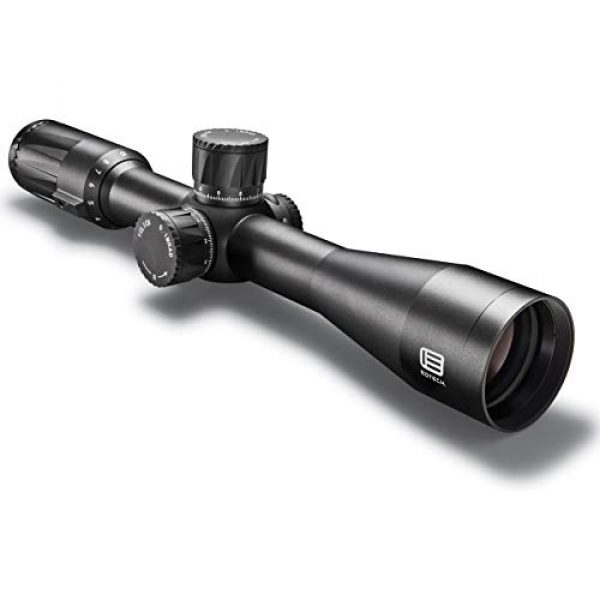

EOTECH Vudu 2.5-10x44mm Precision Rifle Scope
Rifle Scope Product Features
EOTECH Vudu 2.5-10x44mm Precision Rifle Scope with H59 First Focal Plain Reticle (Model VDU2-10FFH59)
First focal plane – Reticle increases in size with magnification
XC High Density Glass – Impressive light transmission and scene clarity
Water, shock & fog resistant
EOTECH Vudu Advantage limited lifetime warranty
POWER OF PRECISION
The EOTECH line of Vudu rifle scopes is where durability, precision and versatility meet. Our rifle scopes are engineered and constructed to meet the most rugged demands of the serious precision shooter.

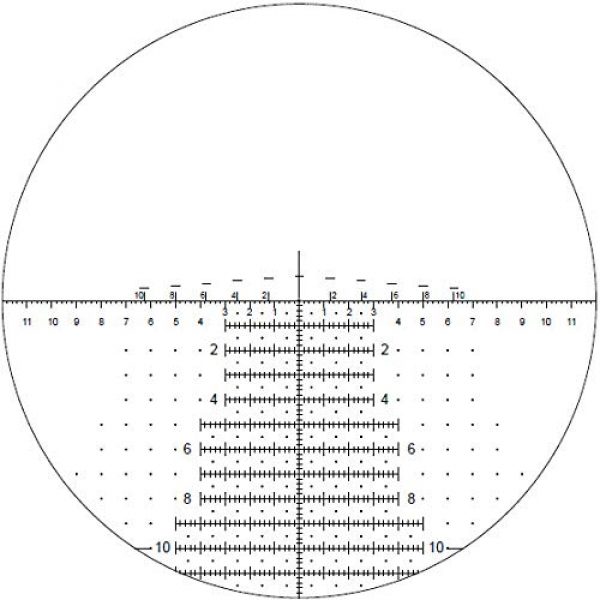

Available in MD1, MD2 or H59 Reticles
First Focal Plane
Objective Lens Diameter – 44mm
Single-Piece 30mm Tube
Illumination Control Push Buttons
XC High-Density Glass
0.25 MOA or 0.1 MRAD Adjustments
Exposed Optical Surface Treatment Lens Coating
Exterior Finish Flat Black; Type III Anodized
Vudu 2.5-10x44mm Scope
Speed and precision to the power of 10
It’s the perfect combination of precise ranging and downrange accuracy to tackle even the toughest shots. The Vudu 2.5-10x rifle scope’s extremely clear XC High-Density glass and first focal plane configuration puts you on target, quicker and with more surgical precision than ever before. With the added durability and edge-to-edge image clarity you won’t find in any competing rifle scope in its class.
When precision, durability and image clarity matter most for your mid-range engagements, the Vudu 2.5-10x is the ideal option
Engineered and constructed to meet the rugged demands of the serious precision shooter
Construction
Aircraft-Grade Aluminum
Aircraft-grade aluminum, single-piece construction with anodized finish for extreme durability.
Surgically Precise Turrets
Ability to re-index to “0” (Zero Stop).
XC High-Density Glass
Extremely clear XC High-Density glass with excellent light transmission.
One-Piece Eyepiece
Magnification ring allows easy, fluid transition from low to high.
One-Piece Eyepiece
Throw-Lever
Push-Button Illumination
1-6×24 FFP 2-10×44 FFP 3.5-18×50 FFp & SFP 5-25×50 FFP 8-32×50 SFP
Magnification 1-6x 2.5-10x 3.5-18x 5-25x 8-32x
Focal Plane First First First & Second First Second
Tube Size 30mm 30mm 34mm 34mm 34mm
Objective 24mm 44mm 50mm 50mm 50mm
Adjustments .5 MOA & .2 MRAD .25 MOA & .1 MRAD .25 MOA & .1 MRAD .1 MRAD .125 MOA
Illuminated Reticle Yes Yes Yes Yes No
Reticle Options SR1, SR2, SR3 MD1, MD2, H59 MD1, MD2, H59, HC1 H59, MD3 HC2
Length 270mm (10.63in) 357mm (14.06in) 377mm (14.84in) 285mm (11.2in) 377mm (14.84in)
Weight 20.1oz (570g) 27.2oz (770g) 33.6oz (952g) 29.5oz (835g) 33.6oz (952g)
About the EOTECH Manufacturer
EOTECH is a premium supplier for rifle scopes, optics, mounting solutions, and other accessories used for firearms like rifles and long guns. They innovate and make their products making the most of building materials which are resilient and long lasting. This includes the EOTECH Vudu 2.5-10x44mm Precision Rifle Scope by EOTECH. For additional shooting items, visit their website.
Info Glass
Rifle scopes enable you to exactly align a rifle at various targets by lining up your eye with the target at range. They do this through magnification by using a series of lenses inside the scope. The scope’s alignment can be adapted for the consideration of many ecological aspects like wind and elevation increases to account for bullet drop.
The scope’s function is to help the shooter understand precisely where the bullet will land based upon the sight picture you are viewing using the optic as you align the scope’s crosshair or reticle with the intended target. Many contemporary rifle scopes have about 11 parts which are arranged inside and on the exterior of the scope body. These optic pieces include the rifle scope’s body, lenses, windage turrets or dials, objective focus rings, and other parts. Learn about the eleven parts of rifle glass.
About Optic Varieties
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. Deciding upon the optimal type of rifle optic is based on what type of shooting you plan to do.
First Focal Plane Glass
Focal plane scopes (FFP) feature the reticle in front of the magnification lens. These kinds of scopes are useful for:
- Quick acquisition, far away kinds of shooting
- Shooting circumstances where estimations are marginal
- Experienced shooters who know their aim point “hold over” as well as “lead” ratios for their firearms
- Shooters who don’t mind the reticle is enlarged and requires more visual eyesight area than a SFP reticle
Second Focal Plane Glass
Second focal plane scopes (SFP) come with the reticle behind the magnification lens. In the FFP example with the SFP scope, the 5x “zoom” 100 yard tick would be 1/5th of the non “zoom” tick.
- Long distance kinds of shooting where shooters have increased time to make ballistic calculations
- Shooting where most of the shots take place within much shorter ranges and proximities
- Shooters who select a clearer optic picture with less area taken up by the larger sized FFP reticle
About Rifle Glass Magnification
The amount of zoom a scope supplies is identified by the size, thickness, and curvatures of the lenses inside of the rifle scope. The zoom of the scope is the “power” of the scope.
Info About Single Power Lens Glass
A single power rifle scope or optic comes with a zoom number designator like 4×32. This implies the magnification power of the scope is 4x power while the objective lens is 32mm. The magnification of this type of scope can not adjust given that it is set from the factory.
Variable Power Lens Glass Info
Variable power rifle scopes use enhanced power. The power adjustment is performed by using the power ring part of the scope near the back of the scope by the eye bell.
The Power and Range of Rifle Scopes
Here are some recommended scope powers and the ranges where they may be effectively used. Highly magnified glass will not be as efficient as lower magnification glass considering too much magnification can be a bad thing. The same idea goes for longer distances where the shooter needs to have adequate power to see exactly where to properly aim the rifle at the target.
Details on Lens Finish
All contemporary rifle scope and optic lenses are layered. There are different types and qualities of lens coatings. Lens coating can be an important element of a rifle when contemplating luxury rifle optics and targeting equipment. The glass lenses are among the most essential pieces of the optic due to the fact that they are what your eye sees through while sighting a rifle in on the target. The coating on the lenses shields the lens surface as well as helps with anti glare capabilities from refracted direct sunlight and color perception.
About Lens Coatings – HD Versus ED
Some scope manufacturers also use “HD” or high-definition lens finishings which use various methods, chemicals, aspects, and polarizations to draw out a wide range of colors and viewable quality through the lens. Some scope makers use “HD” to refer to “ED” meaning extra-low dispersion glass.
Single Finishing Versus Multi-Coating
Various optic lenses can likewise have different finishings applied to them. All lenses generally have at least some type of treatment or finish used to them prior to being used in a rifle scope or optic.
Single layered lenses have a treatment applied to them which is typically a protective and boosting multi-purpose treatment. This lens treatment can safeguard the lens from scratches while decreasing glare and other less helpful things experienced in the shooting environment while sighting in with the optic. The quality of a single coated lens depends upon the scope developer and how much you spent paying for it. Both the make and cost are signs of the lens quality.
Some scope manufacturers similarly make it a point to define if their optic lenses are coated or “multi” coated. Being “better” depends on the manufacturer’s lens treatment technology and the quality of materials used in constructing the rifle scope.
Hydrophobic Lens Covering
Water on a lens does not help with maintaining a clear sight picture through a scope at all. Lots of top of the line and military grade scope makers will coat their lenses with a hydrophobic or hydrophilic coating.
Optic Installation Options
Installing approaches for scopes are available in a few choices. There are the standard scope rings which are separately mounted to the scope and one-piece scope mounts which cradle the scope. These different types of mounts also normally can be found in quick release variations which use toss levers which allow rifle operators to quickly mount and remove the glass.
Hex Key Rifle Glass Ring Mounting Solutions
Standard, clamp style mounting scope rings use hex head screws to mount to the flattop design Picatinny scope mount rails on rifles. These types of scope mounts use a couple of different rings to support the optic, and are often made from 7075 T6 billet aluminum which are developed for long distance accuracy shooting. This type of scope mount is excellent for rifles which require a resilient, sound mount which will not move no matter how much the scope is moved or abuse the rifle takes.
Rifle Optic Mounts with Quick-Release Cantilever Rings
These types of quick-release rifle scope mounts can be used to rapidly detach a scope from a rifle and reattach it to a different rifle. Several scopes can also be switched out if they all use a similar style mount. The quick detach mount style is CNC machined from anodized 6061 T6 aluminum and the mounting levers attach securely to a flat top type Picatinny rail. This allows the scope to be sighted in while on the rifle, removed from the rifle, and remounted while keeping precision. These kinds of mounts are useful and convenient for rifles which are transferred between vehicles a lot, to remove the scope from the rifle for protection, or for scopes which are adopted between multiple rifles. An example of this mount style is the 30mm mount designed by the Vortex Optics manufacturer. It typically costs around $250 USD
Rifle Optic Tube Sealing and Gas Purging
Wetness inside your rifle optic can spoil a day on the range and your pricey optic by causing fogging and creating residue inside of the scope tube. The majority of scopes prevent wetness from going into the scope tube with a series of sealing O-rings which are waterproof. Generally, these water-resistant optics can be immersed under 20 or 30 feet of water before the water pressure can push moisture past the O-rings. This should be plenty of moisture content avoidance for standard use rifles for hunting and sporting purposes, unless you anticipate taking your rifle boating and are concerned about the scope still performing if it goes overboard and you can still find the gun.
Details on Scope Tube Gas Purging
Another component of avoiding the accumulation of wetness inside of the rifle optic’s tube is filling the tube with a gas like nitrogen. Since this space is currently occupied by the gas, the optic is less altered by condition alterations and pressure distinctions from the outdoor environment which could possibly allow water vapor to leak in around the seals to fill the vacuum which would otherwise exist. These are good qualities of a decent rifle scope to seek out.
