Description
Rifle Scope Product Details

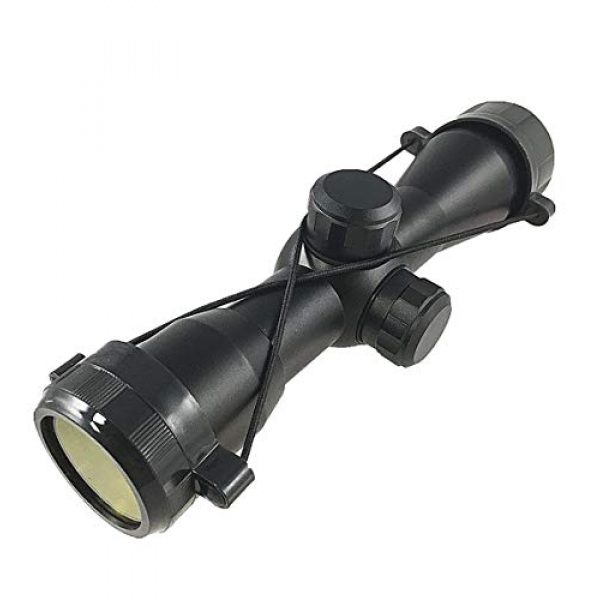

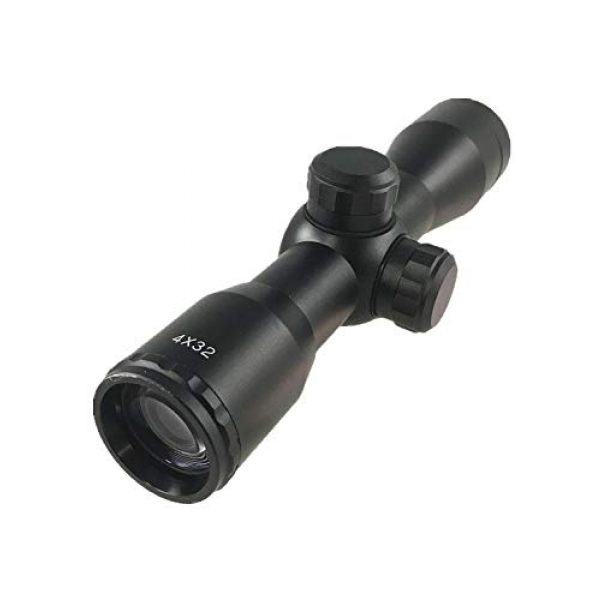

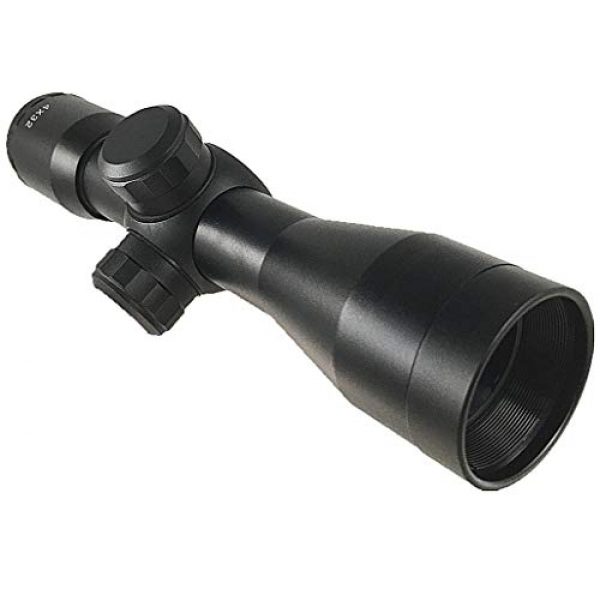

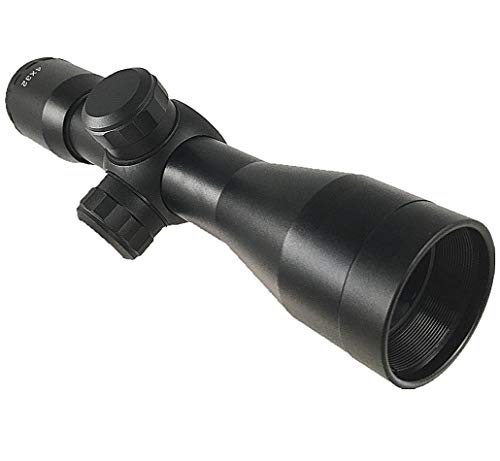

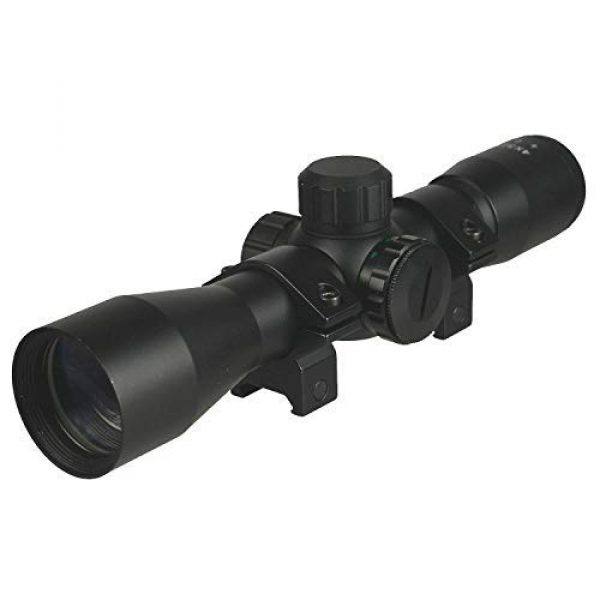

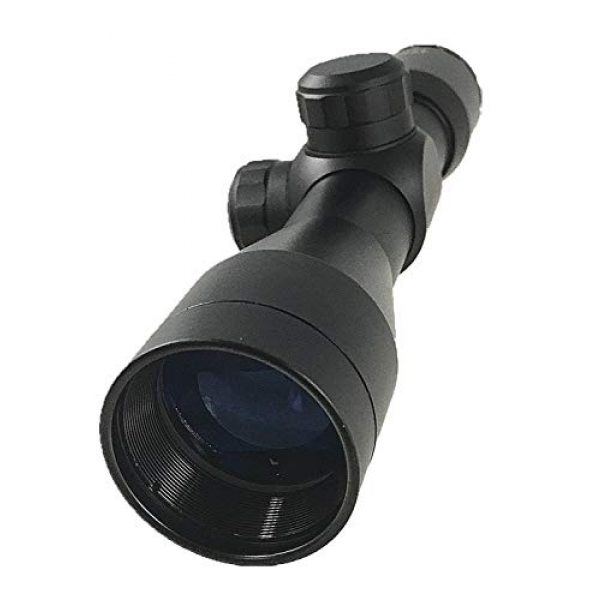

DB TAC 4×32 Anodize Black Color Mil-dot Reticle Slug Scope Picatinny Weaver Mounted Aluminum Hunting Optics Accessory.
Specification: . Magnification:4X
Diopter adjustment range:-2.5D/+3D 1 click=1/4″
Objective diameter(mm)=32
Reticle style: Mil Dot reticle
Exit pupil(mm)=8
Eye reliefe(inchs)=3″
Field of view@100yds:28
Tube diameter:1″
Length(inchs)=7.7
Weight(oz)=8.5
W/E adjust click value@100yds:40M.O.A
Parallex setting(yds):100

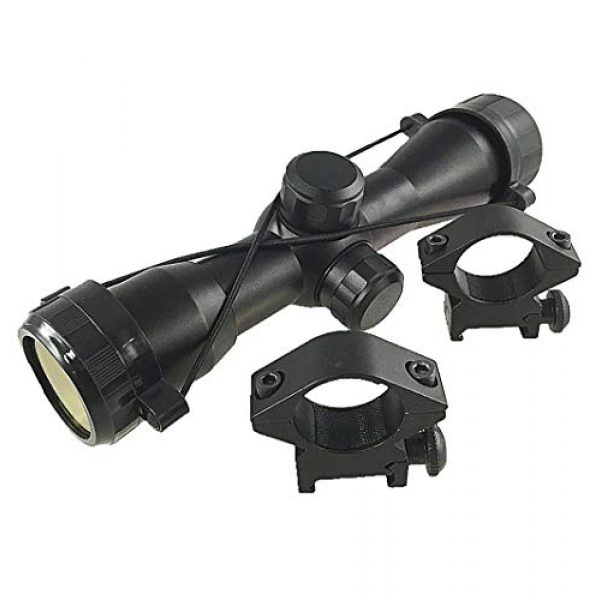

Packing listing 1.Scope

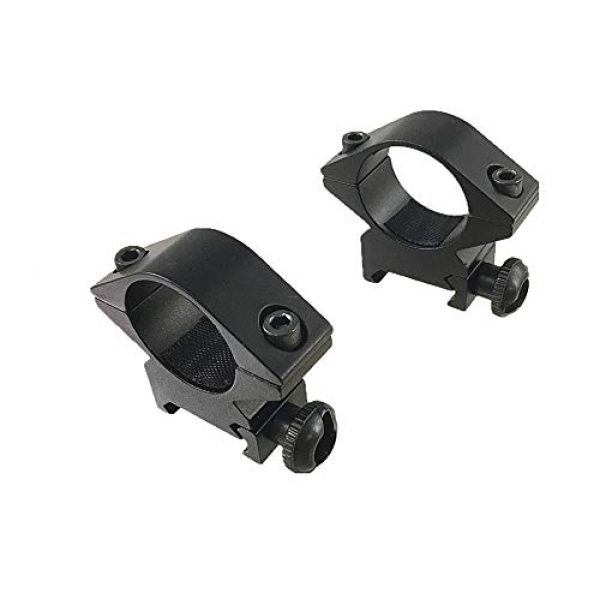

2.A pair of Scope rings(fit 20mm weaver / picatinny rail)
3.Lens Cloth
4.Allen tool
Rifle Scope Product Features
4X32 Compact Multi Range Reticle Scope Red Green With Rings
Windage and elevation adjustment
Fog proof and shock-resistant housing
Weaver / Picatinny 1913 ring mounts included
About the DB TAC INC Company
DB TAC INC is a premium supplier for weapon scopes, optics, mounts, and other add-ons used for firearms like rifles and long guns. They innovate and supply their scopes, mounts, and related products working with elements which are resilient and long lasting. This includes the DB TAC 4×32 Anodize Black Color Mil-dot Reticle Slug Scope Picatinny Weaver Mounted Aluminum Hunting Optics Accessory. by DB TAC INC. For more shooting items, visit their website.
What You Need to Know About Rifle Scopes
Rifle scopes enable you to precisely align a rifle at various targets by lining up your eye with the target over a distance. They do this through magnification by making use of a series of lenses inside the scope. The scope’s alignment can be dialed in for the consideration of varied environmental things like wind and elevation increases to make up for bullet drop.
The scope’s purpose is to help the shooter understand exactly where the bullet will hit based on the sight picture you are viewing with the scope as you line up the scope’s crosshair or reticle with the intended point of impact. Most modern-day rifle scopes and optics have about eleven parts which are located within and on the exterior of the scope. These scope parts consist of the rifle scope’s body, lenses, adjustment turrets, objective focus rings, and other elements. See all eleven parts of a scope.
The Types of Rifle Scopes
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. Choosing the optimal type of rifle scope is based on what type of shooting you plan to do.
First Focal Plane Glass
First focal plane scopes (FFP) feature the reticle before the magnifying lens. This triggers the reticle to increase in size based upon the amount of zoom being used. The result is that the reticle measurements are the same at the amplified range as they are at the non magnified range. One tick on a mil-dot reticle at 100 yards with no “zoom” is still the very same tick at 100 yards with 5x “zoom”. These types of scopes are useful for:
- Quick acquisition, long distance kinds of shooting
- Shooting scenarios where calculations are marginal
- Experienced shooters who recognize their target “hold over” and also “lead” correlations for their rifles
- Shooters who don’t mind the reticle is enlarged and uses up more visual sight area than a SFP reticle
Second Focal Plane Glass Facts
Second focal plane scopes (SFP) feature the reticle to the rear of the magnification lens. In the FFP example with the SFP scope, the 5x “zoom” 100 yard tick would be 1/5th of the non “zoom” tick measurement.
- Far away forms of shooting where shooters have extra time to make ballistic estimations
- Shooting where most shots occur within shorter proximities and ranges
- Shooters who would like a clearer optic sight picture without space taken up by the larger size FFP reticle
Ins and Outs of Scope Zoom
The level of scope zoom you require depends upon the form of shooting you choose to do. Virtually every style of rifle optic gives some degree of zoom. The amount of zoom a scope provides is determined by the dimension, thickness, and curvatures of the lens glass inside of the rifle optic. The magnifying level of the optic is the “power” of the scope. This implies what the shooter is aiming at through the scope is magnified times the power factor of what can normally be seen by human eyes.
Fixed Single Power Lens Glass
A single power rifle optic uses a magnification number designator like 4×32. This means the magnification power of the scope is 4x power while the objective lens is 32mm. The magnification of this type of scope can not adjust given that it is fixed.
Adjustable Power Lens Glass Details
Variable power rifle scopes can be adjusted between magnification levels. It will note the magnification amount in a configuration like 2-10×32. These numbers mean the zoom of the scope can be changed in between 2x and 10x power. This also incorporates the power levels in-between 2 and 10. The power modification is achieved by making use of the power ring part of the scope near the rear of the scope by the eye bell.
Power and Range Correlations
Here are some advised scope powers and the ranges where they can be effectively used. Remember that higher power optics will not be as practical as lower magnification level scope and optics since increased magnification can be a detractor. The exact same idea applies to longer ranges where the shooter needs to have adequate power to see exactly where to properly aim the rifle.
Info on Lens Finishes
All contemporary rifle optic and scope lenses are layered. There are different types and qualities of coatings. Lens coating is a crucial element of a rifle’s setup when thinking of luxury rifle optics and scope equipment. The lenses are among the most essential parts of the glass because they are what your eye sees through while sighting a rifle in on the point of impact. The finish on the lenses protects the lens exterior and even helps with anti glare capabilities from refracted sunshine and color presence.
HD Versus ED Lenses
Some scope producers also use “HD” or high-definition lens finishings which use various methods, chemicals, elements, and polarizations to draw out a wide range of colors and viewable quality through the lens. Some scope producers use “HD” to refer to “ED” implying extra-low dispersion glass.
Optic Lens Single Coating Versus Multi-Coating
Various optic lenses can also have various finishings applied to them. All lenses generally have at least some kind of treatment or coating applied to them before being used in a rifle scope or optic assembly. Since the lens isn’t just a raw piece of glass, they require performance enhancing coatings. It becomes part of the carefully tuned optic. It must have a covering applied to it so that it will be efficiently usable in many types of environments, degrees of sunshine (full light VS shaded), and other shooting conditions.
Single layered lenses have a treatment applied to them which is usually a protective and improving multi-purpose treatment. This lens treatment can safeguard the lens from scratches while minimizing glare and other less beneficial things experienced in the shooting environment while sighting in with the scope. The quality of a single coated lens depends on the scope company and how much you paid for it. Both are indications of the lens quality.
Some scope producers likewise make it a point to define if their optic lenses are layered or “multi” covered. This suggests the lens has had multiple treatments applied to them. If a lens gets multiple treatments, it can indicate that a manufacturer is taking multiple actions to combat various environmental elements like an anti-glare covering, a scratch resistant anti-abrasion finishing, followed by a hydrophilic coating. This additionally doesn’t always imply the multi-coated lens is better than a single coated lens. Being “much better” depends upon the manufacturer’s lens treatment technology and the quality of components used in creating the rifle scope.
Details on Hydrophobic Finish
Water on an optic’s lens doesn’t improve maintaining a clear sight picture through an optic in any way. Lots of top of the line and premium optic manufacturers will coat their lenses with a hydrophilic or hydrophobic coating. The Steiner Optics Nano-Protection is a fine example of this sort of treatment. It treats the exterior surfaces of the Steiner optic lens so the H2O molecules can not bind to it or produce surface tension. The result is that the water beads move off of the scope to preserve a clear, water free sight picture.
Rifle Optic Installing Options
Mounting options for scopes come in a few options. There are the basic scope rings which are individually mounted to the scope and one-piece scope mounts which cradle the scope. These various kinds of mounts also usually can be found in quick release variations which use toss levers which enable rifle operators to rapidly install and remove the scopes.
Hex Key Rifle Glass Rings
Normal, clamp design mounting scope rings use hex head screws to mount to the flattop design Picatinny scope mount rails on rifles. These types of scope mounts use two separate rings to support the optic, and are often made from 7075 T6 billet aluminum which are designed for long distance precision shooting. This type of scope mount is great for rifles which need a durable, sound mount which will not move no matter how much the scope is moved or abuse the rifle takes.
Rifle Glass Mounting Solutions with Quick-Release Cantilever Rings
These types of quick-release rifle scope mounts can be used to rapidly detach a scope and attach it to a different rifle. Several scopes can even be swapped out if they all use a compatible design mount. These types of mounts come in handy for rifles which are carried a lot, to swap out the optic from the rifle for protecting the scope, or for optics which are used between several rifles.
Sealing and Gas Purging for Glass Tubes
Moisture inside your rifle optic can ruin a day of shooting and your pricey optic by triggering fogging and producing residue inside of the scope tube. The majority of scopes prevent wetness from going into the scope tube with a system of sealing O-rings which are waterproof.
Gas Purged Rifle Optic Tubes
Another component of avoiding the accumulation of moisture within the rifle optic’s tube is filling the tube with a gas like nitrogen. Since this space is already occupied by the gas, the glass is less impacted by condition changes and pressure distinctions from the outdoor environment which may potentially allow water vapor to permeate in around the seals to fill the void which would otherwise exist. These are good qualities of a good rifle scope to look for.
