Description
Rifle Scope Product Details

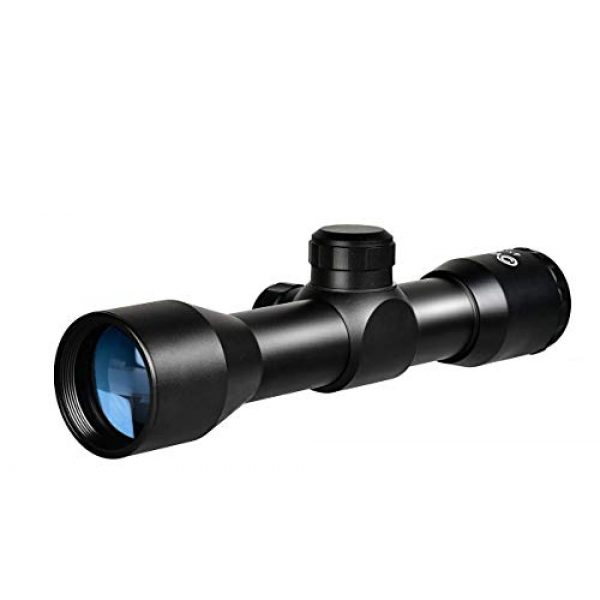

CVLIFE 4×32 Compact Rifle Scope Crosshair Optics Hunting Gun Scope with 20mm Free Mounts
Rifle Scope Product Features
About this item
Magnification:4x;Objective Diameter: 1.26″ (32mm); Eye Relief: 3.3″ (83.82mm) Length: 7.48″(190mm);
With the fully coated optical glass, the rifle scope would give you a bright and high-contrast image.
Made of high-strength aluminum alloy and with its one-piece tube construction, the scope is definitely for greater strength and durability.
Inert gas purged, fog,shock, water proof, this scope can be used under any weather condition.
The length of the whole scope is 7.48″ (190mm), which makes this compact scope suitable for quick moving and aiming.
CVLIFE 4×32 Crosshair Compact Hunting Rifle Scope
Specifications:
Magnification:4X
Objective Diameter:32mm
Field View: 23
Exit Pupil Diameter: 7.9mm
Eye Relief: 4.13″ (105mm)
Click Value: 1/4MOA
Length: 7.48″(190mm)
Featrue:
Made of high quality aluminum alloy and constructed with the ultra strong one-piece tube, this scope is durable.
The length of the scope is only 7.48″(190mm). This compact scope is suitable for quick moving and aiming
The ocular is built with dioptric adjustment lens that can provides nearsighted and farsighted users a clear viewfinder image without the use of eyeglasses.
Scratch-resistant coating protects exterior lenses from scratches, oil and dirt..
Package Included:
1 x 4*32mm Rifle Scope
1 x Lens Cover

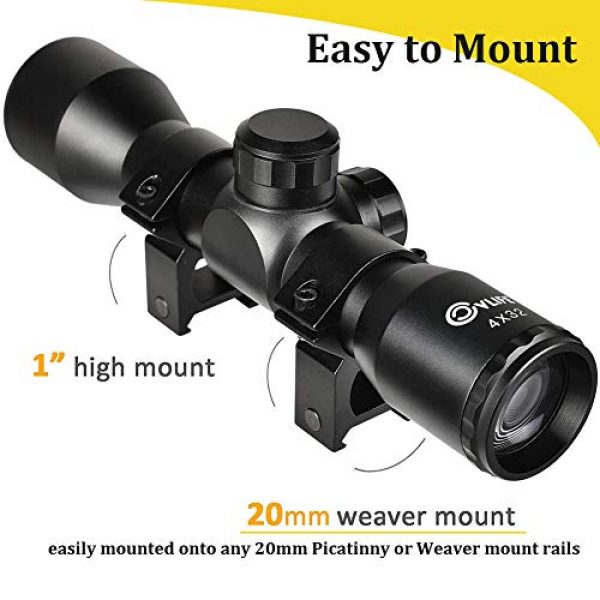

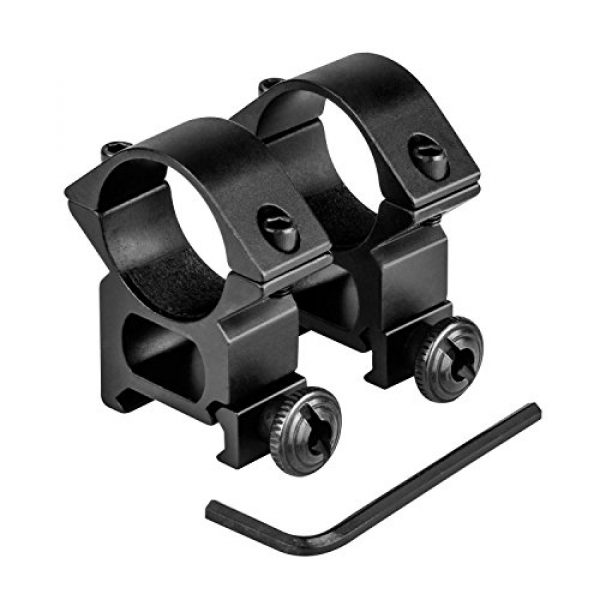

2 x Scope Mount for 20mm Weaver Dovetail Rail Only
1 x Allen key
CVLIFE 2.5-10×40 Illuminated Scope with Red Laser CVLIFE 4×32 Illuminated Scope with Fiber Optic Sight CVLIFE 3-9×40 rifle scope CVLIFE 3-9x40AO rifle scope CVLIFE 3-9×40 Compact Rifle Scope
Reticle Mil dot Mondern Range Finding Fine Duplex Mil dot Mil dot
Objective Diameter 1.57″ (40mm) 1.26”(32mm) 1.57″ (40mm) 1.57″ (40mm) 1.57″ (40mm)
Tube diameter 1.57” 1″ 1″ 1″
With AOAdjustable Objective x x x x
Illuminated Reticle x x x
Reticle Color Red & Green Red & Green & Blue Black Black Black
Size 8.5”(21.6cm) 2.5”(14cm) 12.20″(31cm) 12.20″(31cm) 7.48″ (19cm)
About the CVLIFE Scope Maker
CVLIFE is a premium maker for firearm scopes, optics, mounting solutions, and other accessories used for guns like rifles and long guns. They design and manufacture their mounts, scopes, and related products working with materials which are resilient and long lasting. This includes the CVLIFE 4×32 Compact Rifle Scope Crosshair Optics Hunting Gun Scope with 20mm Free Mounts by CVLIFE. For additional shooting items, visit their site.
What You Need to Know About Rifle Scopes
Rifle scopes enable you to exactly align a rifle at various targets by lining up your eye with the target at range. They accomplish this through zoom by making use of a set of lenses within the scope. The scope’s alignment can be adapted to take into account different ecological aspects like wind and elevation decreases to account for bullet drop.
The scope’s function is to help the shooter understand exactly where the bullet will land based upon the sight picture you are seeing using the scope as you line up the scope’s crosshair or reticle with the intended point of impact. The majority of modern rifle scopes have about 11 parts which are found within and outside of the scope body. These scope parts consist of the rifle scope’s body, lenses, windage and elevation dials, objective focus rings, and other components. Learn about the eleven parts of optics.
The Styles of Rifle Scopes
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. Finding the perfect type of rifle scope is based around what type of shooting you plan to do.
About First Focal Plane Scopes
Focal plane scopes (FFP) feature the reticle in front of the magnification lens. These types of scopes are beneficial for:
- Quick acquisition, long distance types of shooting
- Shooting scenarios where computations are very little
- Experienced shooters who understand their target “hold over” plus “lead” correlations for their firearms
- Shooters who don’t mind the reticle is enlarged and occupies more visual eyesight room than a SFP reticle
Info on Second Focal Plane Glass
Second focal plane optics (SFP) come with the reticle to the rear of the magnifying lens. This causes the reticle to remain at the very same size in relation to the level of zoom being used. The effect is that the reticle dimensions change based upon the zoom chosen to shoot over lengthier distances considering the reticle markings present various increments which change with the magnification level. In the FFP example with the SFP glass, the 5x “zoom” 100 yard tick would be 1/5th of the non “zoom” tick. These varieties of glass are handy for:
- Far away styles of shooting where shooters have extra time to make ballistic computations
- Shooting where most shots happen within much shorter spaces and ranges
- Shooters who would like a clearer optic picture with less area taken up by the bigger FFP reticle
Glass Zoom
The amount of magnification a scope provides is determined by the diameter, thickness, and curvatures of the lenses inside of the rifle scope. The magnification of the scope is the “power” of the scope.
Single Power Lens Rifle Optic Facts
A single power rifle optic or scope comes with a magnification number designator like 4×32. This means the magnification power of the scope is 4x power and the objective lens is 32mm. The magnification of this type of optic can not adjust given that it is a fixed power optic.
Adjustable Power Lens Rifle Scopes
Variable power rifle scopes use enhanced power. The power modification is achieved by making use of the power ring part of the scope near the back of the scope by the eye bell.
Rifle Glass Power and Range Correlation
Here are some suggested scope power levels and the distances where they can be efficiently used. Keep in mind that higher power optics and scopes will not be as effective as lower magnification level glass because too much zoom can be a bad thing. The same idea goes for extended distances where the shooter needs enough power to see where to best aim the rifle at the target.
About Lens Coatings
All modern-day rifle scope and optic lenses are coated. There are various types and qualities of glass coverings. Lens finishing is a crucial element of a rifle when looking into high-end rifle optics and scope units. The glass lenses are one of the most essential parts of the scope considering that they are what your eye looks through while sighting a rifle in on the target. The coating on the lenses shields the lens surface area and even improves anti glare capabilities from excess direct sunlight and color discernibility.
Details on Lens Coatings – HD Versus ED
Some scope makers also use “HD” or high-definition lens coatings which use different techniques, aspects, chemicals, and polarizations to draw out various colors and viewable definition through the lens. Some scope manufacturers use “HD” to refer to “ED” implying extra-low dispersion glass.
Rifle Scope Lens Single Coating Versus Multi-Coating
Various optic lenses can likewise have different finishes applied to them. All lenses generally have at least some type of treatment or finish used to them before being used in a rifle scope or optic.
Single coated lenses have a treatment applied to them which is generally a protective and enhancing multi-purpose treatment. This lens treatment can shield the lens from scratches while lowering glare and other less helpful things experienced in the shooting environment while sighting in with the scope. The quality of a single covered lens depends upon the scope producer and how much you spent paying for it. The scope’s maker and cost are indications of the lens quality.
Some scope producers similarly make it a point to specify if their optic lenses are coated or “multi” covered. Being “much better” depends on the manufacturer’s lens treatment innovation and the quality of products used in building the rifle scope.
Anti-water Lens Coverings
Water on a lens does not assist with preserving a clear sight picture through a scope at all. Numerous top of the line and military grade optic companies will coat their lenses with a hydrophilic or hydrophobic finish.
Choices for Mounting Rifle Glass on Long Guns
Installing solutions for scopes are available in a couple of options. There are the standard scope rings which are individually installed to the optic and one-piece mounts which cradle the scope. These various kinds of mounts also typically are made in quick release variations which use manual levers which permit rifle shooters to quickly install and dismount the scopes.
Glass Mounts with Hex Key Rings
Standard, clamp type mounting optic rings use hex head screws to fix to the flattop design Picatinny scope mount rails on the tops of rifles. These types of scope mounts use double detached rings to support the scope, and are made from 7075 T6 billet aluminum which are manufactured for long distance accuracy shooting. This kind of scope mount is ideal for rifle systems which need a long lasting, rock solid mount which will not shift no matter just how much the scope is moved or jarring the rifle takes. These are the type of mounts you really want to have for a devoted scope setup on a far away hunting or hard target interdiction firearm which will almost never need to be altered or adjusted. Blue 242 Loctite threadlocker can additionally be used on the scope mount’s screws to keep the hex screws from wiggling out after they are installed securely in position. An example of these rings are the 30mm style from Vortex Optics. The set normally costs around $200 USD
Quick-Release Cantilever Glass Rings
These kinds of quick-release rifle scope mounts can be used to rapidly take off a scope from a rifle and reattach it to a different rifle. If they all use a similar style mount, several scopes can often be swapped on the range. The quick detach mount style is CNC machined from anodized 6061 T6 aluminum and the mounting levers fasten firmly to a flat top design Picatinny rail. This allows the scope to be sighted in while on the rifle, removed from the rifle, and remounted back on the rifle while keeping the original sighting settings. These types of mounts are useful and beneficial for rifles which are carried a lot, to remove the optic from the rifle for protection, or for optics which are adopted between several rifles. An example of this mount type is the 30mm mount from the Vortex Optics brand. It usually costs around $250 USD
What to Know About Rifle Optic Tube Sealing and Gas Purging
Wetness inside your rifle glass can destroy a day on the range and your expensive optic by causing fogging and making residue inside of the scope’s tube. The majority of optics protect against wetness from entering the scope tube with a series of sealing O-rings which are waterproof. Generally, these water-resistant scopes can be immersed beneath 20 or 30 feet of water before the water pressure can force moisture past the O-rings. This should be ample wetness prevention for standard use rifles, unless you intend on taking your rifle sailing and are worried about the scope still functioning if it goes over the side and you can still recover the gun.
Rifle Optic Gas Purging
Another component of preventing the accumulation of moisture within the rifle scope’s tube is filling the tube with a gas like nitrogen. Given that this space is currently taken up by the gas, the optic is less impacted by temp alterations and pressure variations from the outdoor environment which might potentially permit water vapor to permeate in around the seals to fill the vacuum which would otherwise be there. These are good qualities of a good rifle scope to look for.
