Rifle Scope Product Details

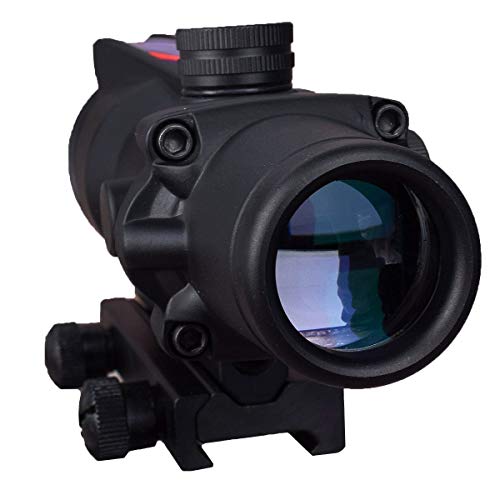

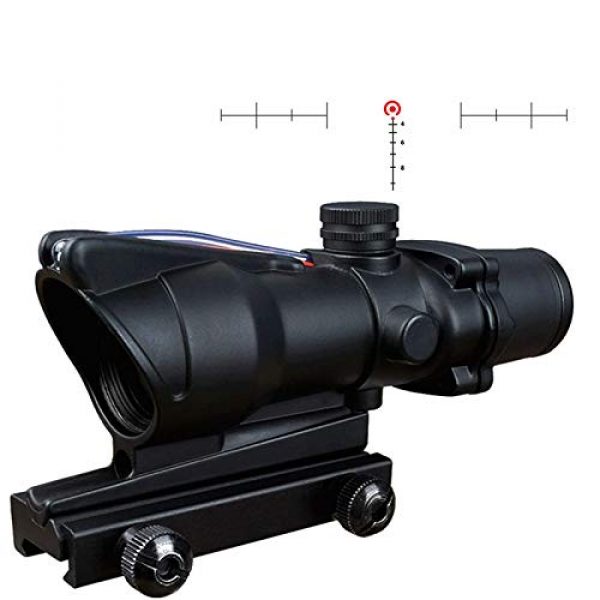

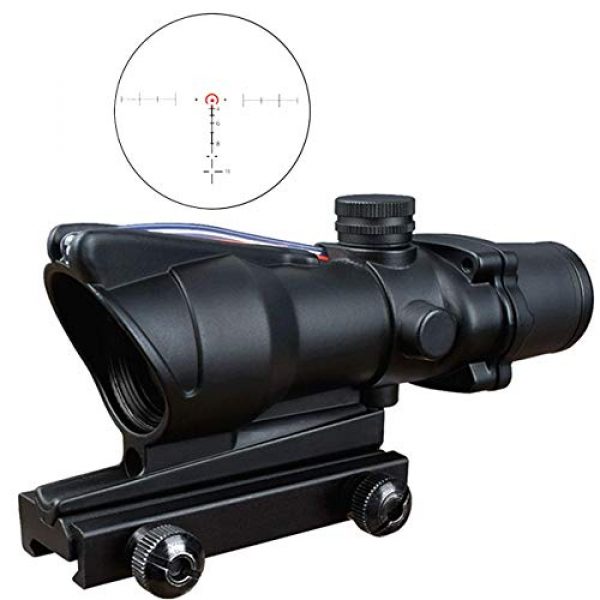

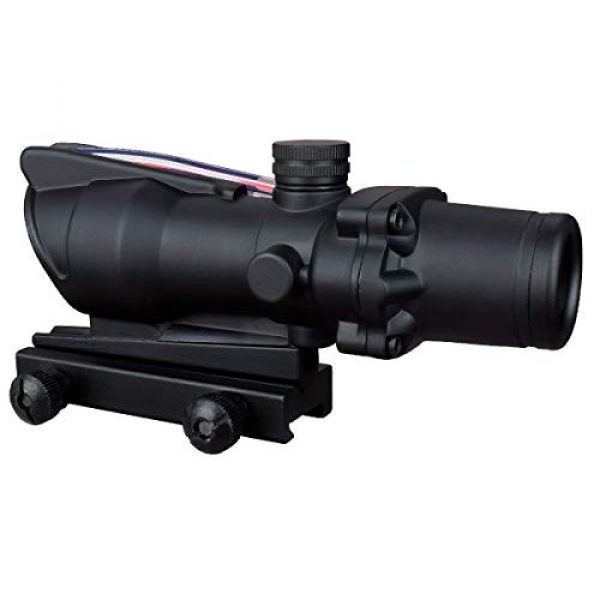

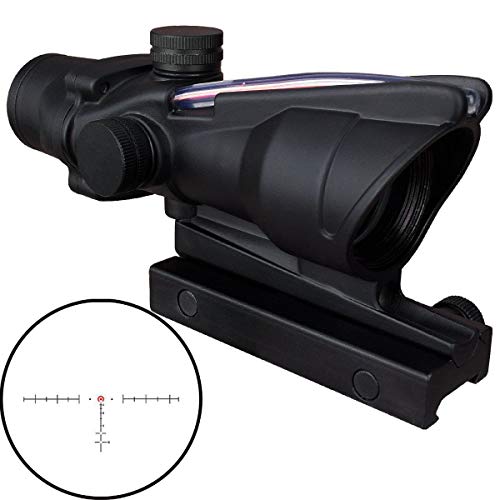

CTOPTIC 4×32 Scope Red Horseshoe Reticle Hunting RifleScopes Optic Sight Reticle Real Red Fiber
Specification:
Objective lens diameter: 32 mm
Magnification: 4X
Eye relief: 1.5″ (38mm)
Combined Weight: 460g
Field of view:6°15′
Field of view@100yds:10.06m
Windage & Elevation adjusters: 1/2 in
Disply Resolution: 5.7
Exit pupil:6mm
Max.Elevation/Windage(moa):50 (Example: 25 MOA is roughly 25 MOA from center)
Rifle Scope Product Features
About this item
Suitable for any 20mm RIS weaver standard rail.
Full metal casting with rubberized matte black finish.
Adjustable windage and elevation, multi-coated front lens, parallax free

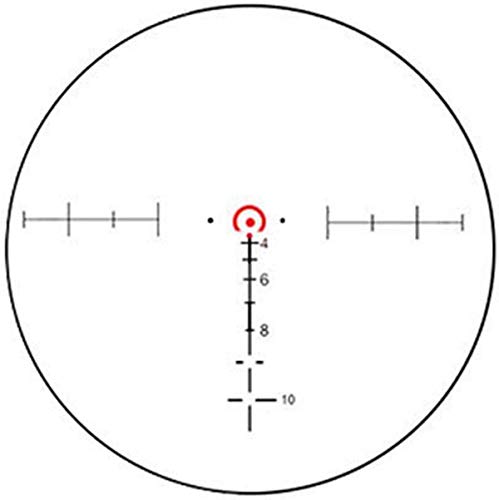

Up to 600 meter red illuminated (at day light ) Horseshoe reticle
Illuminated aiming dot will be automatically adjusted the brightness based on available light.
About the CTOPTIC Manufacturer
CTOPTIC is a premium supplier for firearm scopes, optics, mounts, and other accessories used for firearms like rifles and long guns. They style and build their mounts, scopes, and related products by choosing materials which are long lasting and durable. This includes the CTOPTIC 4×32 Scope Red Horseshoe Reticle Hunting RifleScopes Optic Sight Reticle Real Red Fiber by CTOPTIC. For additional shooting items, visit their website.
Facts About Scopes
Rifle scopes enable you to precisely aim a rifle at various targets by lining up your eye with the target over a range. They accomplish this through magnification by using a series of lenses within the scope. The scope’s positioning can be adjusted for consideration of many natural considerations like wind speed and elevation increases or decreases to make up for bullet drop.
The scope’s function is to understand precisely where the bullet will land based upon the sight picture you are viewing using the optic as you align the scope’s crosshair or reticle with the intended point of impact. The majority of modern-day rifle scopes have about eleven parts which are arranged within and outside of the scope. These optic pieces include the rifle scope’s body, lenses, windage and elevation dials or turrets, focus rings, and other components. See all eleven parts of optics.
About Optic Styles
Rifle scopes can be either “first focal plane” or “second focal plane” type of optics. Picking the optimal type of rifle optic is based around what type of shooting you plan to do.
First Focal Plane Scope Info
First focal plane scopes (FFP) feature the reticle ahead of the magnifying lens. This causes the reticle to increase in size based upon the amount of magnification being used. The result is that the reticle measurements are the same at the enhanced distance as they are at the non magnified range. For example, one tick on a mil-dot reticle at one hundred yards without “zoom” is still the exact same tick at one hundred yards with 5x “zoom”. These kinds of scopes are valuable for:
- Quick acquisition, far away kinds of shooting
- Shooting scenarios where estimations are very little
- Experienced shooters who know their aim point “hold over” as well as “lead” relationships for their firearms
- Shooters who do not mind the reticle is enlarged and requires more visual eyesight area than a SFP reticle
About Second Focal Plane Glass
Second focal plane optics (SFP) come with the reticle behind the zoom lens. This causes the reticle to stay at the same scale in relation to the volume of zoom being used. The result is that the reticle measurements alter based on the magnification used to shoot over lengthier distances because the markings present distinct increments which fluctuate with the zoom. In the FFP illustration with the SFP scope, the 5x “zoom” 100 yard tick would be 1/5th of the non “zoom” tick reticle measurement. These kinds of scopes work for:
- Far away forms of shooting where shooters have more time to make ballistic computations
- Shooting where most shots take place within shorter ranges and spaces
- Shooters who would like a clearer optic picture without space used up by the bigger FFP reticle
Magnification for Rifle Glass
The measure of scope zoom you require depends upon the style of shooting you would like to do. Pretty much every style of rifle glass gives some amount of magnification. The level of zoom a scope provides is established by the diameter, thickness, and curvatures of the lenses within the rifle optic. The magnifying level of the scope is the “power” of the scope. This implies what the shooter is observing through the scope is amplified times the power element of what can usually be seen by human eyes.
Single Power Lens Glass
A single power rifle optic or scope will have a magnification number designator like 4×32. This means the magnification power of the scope is 4x power while the objective lens is 32mm. The zoom of this kind of optic can not change because it is set from the factory.
Info About Adjustable Power Lens Rifle Scopes
Variable power rifle scopes use enhanced power. The power adjustment is accomplished by using the power ring part of the scope near the back of the scope by the eye bell.
Glass Power and Range Correlation
Here are some recommended scope power levels and the distances where they can be efficiently used. Bear in mind that higher power optics and scopes will not be as efficient as lower magnification level optics since excessive zoom can be a negative thing in certain situations. The exact same idea goes for longer distances where the shooter needs sufficient power to see exactly where to best aim the rifle.
Lens Finishing for Rifle Glass
All modern-day rifle scope lenses are covered in special coatings. There are various types and qualities of coverings. Lens finishing can be an important aspect of a rifle’s setup when looking at luxury rifle optics and scope equipment. The glass lenses are one of the most essential components of the glass due to the fact that they are what your eye looks through while sighting a rifle in on the target. The covering on the lenses safeguards the lens surface area and even assists with anti glare from excess sunlight and color perception.
HD Versus ED Lens Coatings
Some rifle scope suppliers additionally use “HD” or high-def lens coverings which employ various procedures, rare earth compounds, elements, and polarizations to enhance numerous colors and viewable target visibility through the lens. This high-definition coating is commonly used with increased density glass which brings down light’s chance to refract by means of the lens glass. Some scope vendors use “HD” to refer to “ED” meaning extra-low dispersion glass. ED handles how certain colors are presented on the chromatic spectrum and the chromatic aberration or deviance which is also called color distortion or fringing. Chromatic aberration can be obvious over objects with defined shapes as light hits the item from various angles.
Single Coating Versus Multi-Coating
Different scope lenses can also have different finishings applied to them. All lenses typically have at least some kind of treatment or finish applied to them before being used in a rifle scope or optic assembly. This is because the lens isn’t simply a raw piece of glass. It is part of the carefully tuned optic. It needs to have a coating placed on it so that the lens will be efficiently usable in many types of environments, degrees of sunlight (full VS shade), and other shooting conditions.
This lens treatment can protect the lens from scratches while reducing glare and other less advantageous things experienced in the shooting environment while sighting in with the scope. The quality of a single layered lens depends on the scope producer and how much you paid for it.
Some scope manufacturers also make it a point to define if their optic lenses are layered or “multi” covered. This indicates the lens has several treatments applied to the surfaces of the glass. If a lens receives numerous treatments, it can indicate that a producer is taking several steps to fight various environmental aspects like an anti-glare coating, a scratch resistant anti-abrasion coating, followed by a hydrophilic covering. This also doesn’t necessarily indicate the multi-coated lens is much better than a single layered lens. Being “better” depends upon the manufacturer’s lens treatment technology and the quality of materials used in building the rifle scope.
Anti-water Lens Coverings
Water on an optic’s lens does not improve keeping a clear sight picture through an optic at all. Lots of top of the line or high-end scope manufacturers will coat their lenses with a hydrophobic or hydrophilic coating. The Steiner Optics Nano-Protection is a good example of this type of treatment. It deals with the exterior of the Steiner glass lens so the water molecules can not bind to it or develop surface tension. The outcome is that the water beads move off of the scope to maintain a clear, water free sight picture.
Choices for Mounting Rifle Glass on Firearms
Mounting solutions for scopes are available in a couple of options. There are the standard scope rings which are individually installed to the optic and one-piece mounts which cradle the scope. These different kinds of mounts also generally come in quick release variations which use manual levers which permit rifle operators to rapidly mount and dismount the scopes.
Rifle Glass Mounting Solutions with Hex Key Rings
Standard, clamp-on design mounting optic rings use hex head screws to mount to the flattop style Picatinny scope mount rails on rifles. These styles of scope mounts use two detached rings to support the scope, and are usually constructed from 7075 T6 billet aluminum which are designed for far away accuracy shooting. This form of scope mount is ideal for rifles which require a durable, rock solid mount which will not shift no matter just how much the scope is moved or jarring the rifle takes. These are the design of mounts you want for a devoted optics system on a long distance scouting or interdiction firearm which will hardly ever need to be altered or recalibrated. Blue 242 Loctite threadlocker can also be used on screws to keep the hex screw threads from backing out after they are installed securely in place. An example of these rings are the 30mm type made by Vortex Optics. The set normally costs around $200 USD
Optic Mounting Solutions with Quick-Release Cantilever Rings
These kinds of quick-release rifle scope mounts can be used to quickly connect and take off a scope from a rifle. Several scopes can also be swapped out if they all use a similar style mount. The quick detach design is CNC machined from anodized 6061 T6 aluminum and the mounting levers attach securely to a flat top style Picatinny rail. This lets the scope to be sighted in while on the rifle, removed from the rifle, and remounted while maintaining precision. These types of mounts come in convenient for rifles which are moved around a lot, to take off the scope glass from the rifle for protection, or for sight systems which are used in between several rifles. An example of this mount type is the 30mm mount designed by the Vortex Optics manufacturer. It typically costs around $250 USD
Details on Scope Tube Sealing and Gas Purging
Wetness inside your rifle optic can destroy a day of shooting and your expensive optic by triggering fogging and developing residue inside of the scope tube. The majority of scopes prevent wetness from going into the scope tube with a system of sealing O-rings which are waterproof.
Info on Glass Tube Gas Purging
Another part of avoiding the accumulation of moisture within the rifle scope’s tube is filling the tube with a gas like nitrogen. Given that this space is currently occupied by the gas, the scope is less altered by temperature level shifts and pressure differences from the outside environment which might potentially allow water vapor to seep in around the seals to fill the vacuum which would otherwise be there. These are good qualities of a decent rifle scope to look for.
