Description
Rifle Scope Product Details

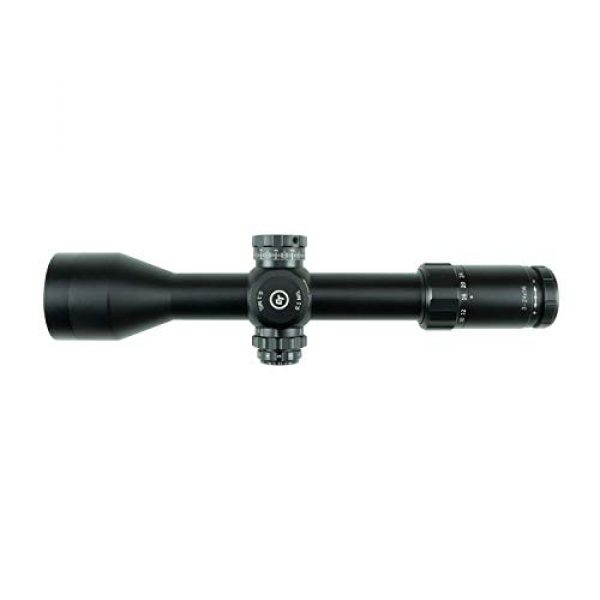

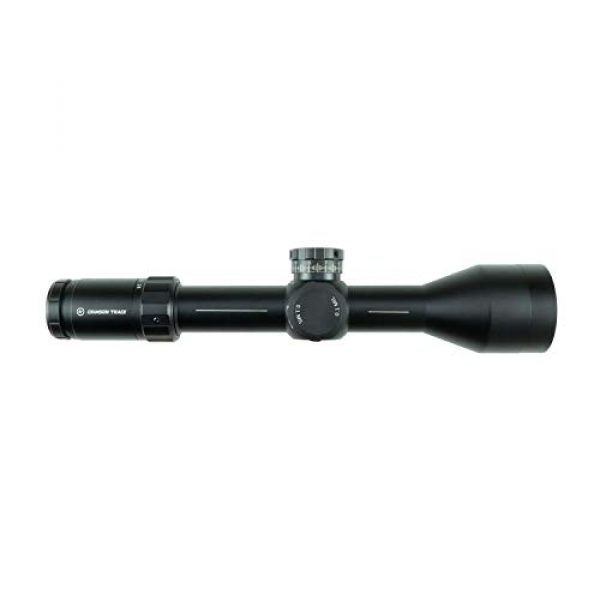

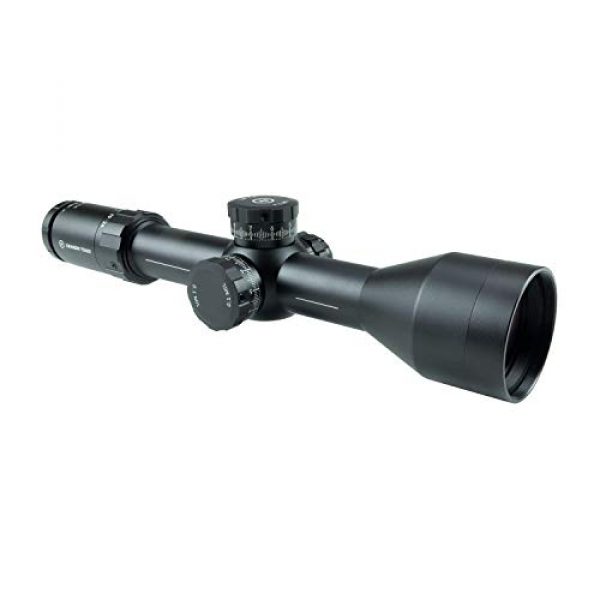

Crimson Trace 5-Series, 3-24x56mm, FFP LR1-MIL, Tactical Rifle Scope
Crimson Trace: performance tested to elevate your confidence. – Before any Crimson Trace 5-Series Rifle Scope can be mounted, it’s rigoursly tested. Not just once, but with an 8-step environmental testing process, undergoing simulations for extreme conditions and re-testing to verify the original baseline is maintained. Based on the MIL-STD-810G test protocol, it’s widely considered as a benchmark across the industry. The result is ED glass paired with an MoC coating to protect the lens and minimize color shifts allowing for a clearer, more natural sight picture. Aircraft-grade 6061-T6 aluminum construction maintains durability and sheds weight. The illuminated first focal plane reticle scales to show a correct ballistic hold at any magnification. Exposed turrets allow precise 0.1 MIL adjustments with Zero-Stop for a simplified return to zero. Inside the 34mm tube is nitrogen-purged and O-ring sealed for waterproof, fogproof performance. 11 illumination levels maximize your preferences in a variety of light levels; Side focus adjustment from 20 yards to infinity; Zero Stop turret with resettable zero allows windage and elevation adjustments for optimal long-range precision hunting; Laser-etched leveling indicators on the side body for a quick and precise start to mounting; Magnification: 3-24X; Objective Lens Diameter: 56mm; Reticle: First focal plane LR1-MIL; Illumination levels: 11; Eye Relief: 3.5″; Field of View @ 100 yds.: 35′ at 3X; Tube Size: 34mm; Turret Style: Zero Reset; Adjustment Gradation: 0.1 MIL; Max. Elevation Adjustment: 32 MIL; Max. Windage Adjustment: 20 MIL; Parallax Setting: 20 yards to infinity; Waterproof: Yes; Fogproof: Yes; Battery: (1) CR2032; Length: 13.9″; Weight: 34.9 oz.; Mfg. Number: CTL-5324
Rifle Scope Product Features
POWER: The 3-24x56mm scope makes objects seem three to 24 times closer than with the naked eye, featuring a 56mm Objective Lens constructed to meet the needs of precision and tactical shooters who demand the best. Coupled with an Advanced Illuminated Reticle to provide quick target acquisition and adjustments.

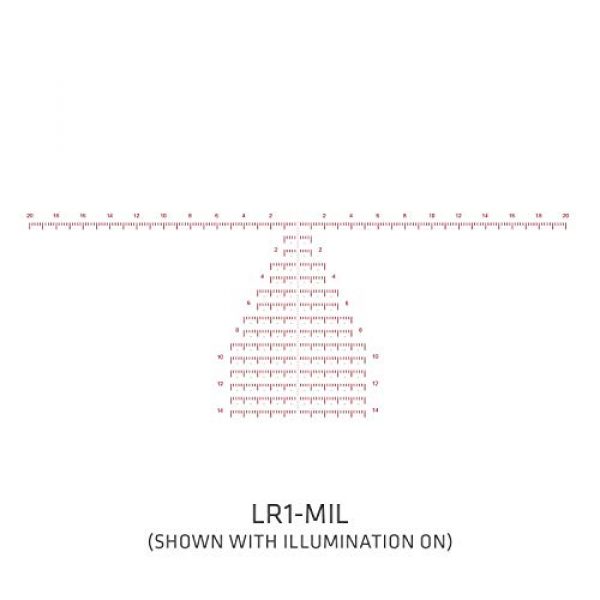

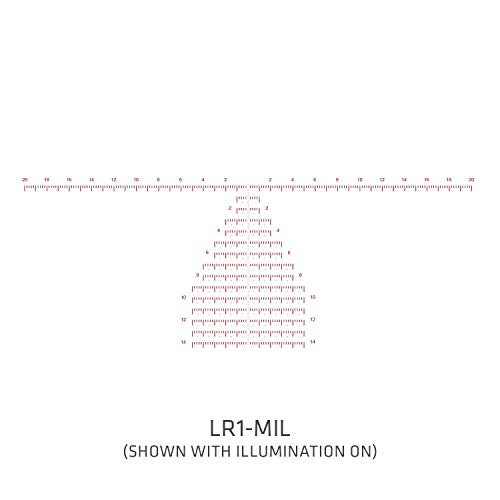

FIRST FOCAL PLANE (FFP): Glass etched, LR1-MIL Advanced Illuminated reticle sits in front of the magnification mechanism, scaling to provide correct ballistic hold points at any range. This feature allows the reticle to be sighted in at any part of the magnification scale and precise range measurements. Numerous windage holding points allow for on the fly adjustments during ever-changing environmental conditions. Premium, Fully Multi-Coated ED Glass leads to enhanced image quality across the vi
EXPOSED TURRETS with MR1-MIL ADVANCED RETICLE: Allowing for elevation and windage adjustments makes the 5-Series optimal for long range precision, hunting applications while being lightweight. Zero-Stop for simplified return to zero and 2nd rotation indicator. Incredibly forgiving eye-box with diopter adjustment to maintain a focused reticle.
QUALITY MANUFACTURING: Single piece 34mm Anodized Aluminum main tube is constructed to handle the most demanding environments. Waterproof and Fog proof with coated lenses to protect from scratches, oil, and debris. Nitrogen purged and O-Ring sealed.
WARRANTY: Crimson Trace’s Lifetime Protection Guaranteed Warranty and FREE Batteries for Life guarantees a lifetime of performance.
About the Crimson Trace Company
Crimson Trace is a premium company for weapon scopes, optics, mounts, and other components used for guns like rifles and long guns. They create and build their mounts, scopes, and related products making the most of elements which are durable and long lasting. This includes the Crimson Trace 5-Series, 3-24x56mm, FFP LR1-MIL, Tactical Rifle Scope by Crimson Trace. For more shooting items, visit their website.
What You Need to Know About Glass
Rifle scopes allow you to precisely aim a rifle at different targets by aligning your eye with the target at range. They do this through magnifying the target by employing a set of lenses inside the scope. The scope’s positioning can be adjusted for the consideration of separate ecological considerations like wind and elevation to account for bullet drop.
The scope’s function is to help shooters understand exactly where the bullet will land based upon the sight picture you are viewing using the optic as you align the scope’s crosshair or reticle with the intended point of impact. Many modern-day rifle scopes have around 11 parts which are found internally and externally on the scope. These parts consist of the rifle scope’s body, lenses, windage dials or turrets, focus rings, and other components. Learn about the eleven parts of rifle scopes.
About Scope Varieties
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. Selecting the best type of rifle glass depends on what type of shooting you plan to do.
Info on First Focal Plane Optics
Focal plane scopes (FFP) feature the reticle in front of the magnification lens. This triggers the reticle to increase in size based upon the amount of magnification being used. The result is that the reticle measurements are the same at the magnified distance as they are at the non magnified range. For example, one tick on a mil-dot reticle at 100 yards without any “zoom” is still the exact same tick at 100 yards with 5x “zoom”. These types of scopes are beneficial for:
- Quick acquisition, long distance kinds of shooting
- Shooting scenarios where computations are low
- Experienced shooters who understand their target “hold over” plus “lead” equations for their rifles
- Shooters who don’t mind the reticle is bigger and uses up more visual sight room than a SFP reticle
Info About Second Focal Plane Glass
Second focal plane optics (SFP) feature the reticle behind the magnification lens. In the FFP example with the SFP scope, the 5x “zoom” one hundred yard tick would be 1/5th of the non “zoom” tick.
- Far away styles of shooting where shooters have extra time to make ballistic estimations
- Shooting where most shots take place within shorter ranges and spaces
- Shooters who like a clearer optic picture without room taken up by the larger size FFP reticle
Zoom for Rifle Optics
The measure of scope magnification you need depends upon the kind of shooting you plan to do. Almost every style of rifle glass provides some degree of magnification. The quantity of zoom a scope delivers is determined by the dimension, density, and curves of the lens glass within the rifle scope. The magnifying level of the optic is the “power” of the glass. This implies what the shooter is aiming at through the scope is magnified times the power factor of what can normally be seen by human eyes.
Info on Single Power Lens Rifle Scopes
A single power rifle optic will have a magnification number designator like 4×32. This means the magnification power of the scope is 4x power while the objective lens is 32mm. The zoom of this kind of scope can not adjust because it is set from the factory.
Variable Power Lens Rifle Scopes
Variable power rifle scopes use variable power levels. The power change is accomplished by using the power ring part of the scope near the rear of the scope by the eye bell.
The Power and Range of Glass
Here are some advised scope power levels and the distances where they may be successfully used. Always remember that high magnification glass will not be as efficient as lower powered glass due to the fact that too much magnification can be a detractor. The exact same idea goes for extended ranges where the shooter needs increased power to see precisely where to best aim the rifle.
Rifle Glass Lens Covering
All contemporary rifle scope lenses are coated. There are different types and qualities of glass lens coatings. When considering luxury rifle targeting systems, Lens covering can be an important component of defining the rifle’s capability. The glass lenses are among the most essential pieces of the optic since they are what your eye looks through while sighting a rifle in on the target. The covering on the lenses offers protection to the lens surface area as well as assists with anti glare from excess sunlight and color exposure.
About Lens Coatings – HD Versus ED
Some scope companies also use “HD” or high-definition glass coatings which apply different processes, elements, rare earth compounds, and polarizations to extract separate colors and viewable target visibility through the lens. This high-def finishing is typically used with more costly, high density lens glass which lowers light’s ability to refract through the lens glass. Some scope vendors use “HD” to refer to “ED” meaning extra-low dispersion glass. ED handles how certain colors are presented on the chroma spectrum and the chromatic aberration which is also called color distortion or fringing. Chromatic aberration is often noticeable over things with hard outlines as light hits the object from various angles.
Single Finishing Versus Multi-Coating
Different optic lenses can likewise have different coverings used to them. All lenses normally have at least some type of treatment or covering applied to them prior to being used in a rifle scope or optic.
This lens treatment can protect the lens from scratches while lowering glare and other less beneficial things experienced in the shooting environment while sighting in with the scope. The quality of a single layered lens depends on the scope maker and how much you paid for it.
Some scope makers also make it a point to define if their optic lenses are covered or “multi” covered. This indicates the lens has multiple treatments applied to the surfaces. If a lens gets numerous treatments, it can prove that a company is taking several actions to combat various natural factors like an anti-glare covering, a scratch resistant anti-abrasion finish, followed by a hydrophilic finishing. This additionally does not necessarily suggest the multi-coated lens is much better than a single coated lens. Being “much better” depends on the manufacturer’s lens treatment techniques and the quality of products used in developing the rifle scope.
Hydrophobic Lens Coatings
Water on an optical lens does not assist with keeping a clear sight picture through an optic in any way. Numerous top of the line or premium optic makers will coat their lenses with a hydrophilic or hydrophobic finishing. The Steiner Optics Nano-Protection is a fine example of this sort of treatment. It deals with the exterior of the Steiner scope lens so the H2O molecules can not bind to it or create surface tension. The result is that the water beads sheet off of the scope to preserve a clear, water free sight picture.
Choices for Mounting Scopes on Firearms
Installing approaches for scopes come in a few choices. There are the standard scope rings which are individually mounted to the optic and one-piece mounts which cradle the scope. These various kinds of mounts also normally can be found in quick release variations which use throw levers which enable rifle operators to rapidly install and remove the glass.
Rifle Optic Mounting Solutions with Hex Key Rings
Basic, clamp-on style mounting optic rings use hex head screws to mount to the flattop design Picatinny scope mount rails on the tops of rifles. These kinds of scope mounts use double separate rings to support the scope, and are normally constructed from 7075 T6 billet aluminum which are designed for far away accuracy shooting. This type of scope mount is exceptional for rifle systems which are in need of a resilient, rock solid mount which will not move regardless of how much the scope is moved about or jarring the rifle takes. These are the style of mounts you should get for a devoted optics setup on a long distance scouting or interdiction firearm that will rarely need to be changed or adjusted. Blue 242 Loctite threadlocker can also be used on the screws to stop the hex screw threads from backing out after they are installed firmly in position. An example of these rings are the 30mm style made by the Vortex Optics brand. The set normally costs around $200 USD
Quick-Release Cantilever Scope Rings
These types of quick-release rifle scope mounts can be used to rapidly attach and detach a scope from a rifle before reattaching it to a different rifle. Numerous scopes can also be swapped out if they all use a compatible design mount. These types of mounts are convenient for rifle platforms which are carried a lot, to swap out the optic from the rifle for protecting the scope, or for optics which are used between several rifles or are situationally focused.
Info on Rifle Optic Tube Sealing and Gas Purging
Wetness inside your rifle scope can mess up a day of shooting and your expensive optic by causing fogging and producing residue inside of the scope tube. A lot of scopes avoid wetness from going into the scope tube with a system of sealing O-rings which are waterproof.
What to Know About Rifle Scope Tube Gas Purging
Another component of avoiding the buildup of wetness within the rifle scope’s tube is filling the tube with a gas like nitrogen. Given that this space is currently taken up by the gas, the glass is less affected by condition shifts and pressure variations from the external environment which may potentially allow water vapor to leak in around the seals to fill the vacuum which would otherwise exist. These are good qualities of a decent rifle scope to look for.
