Description
Rifle Scope Product Details

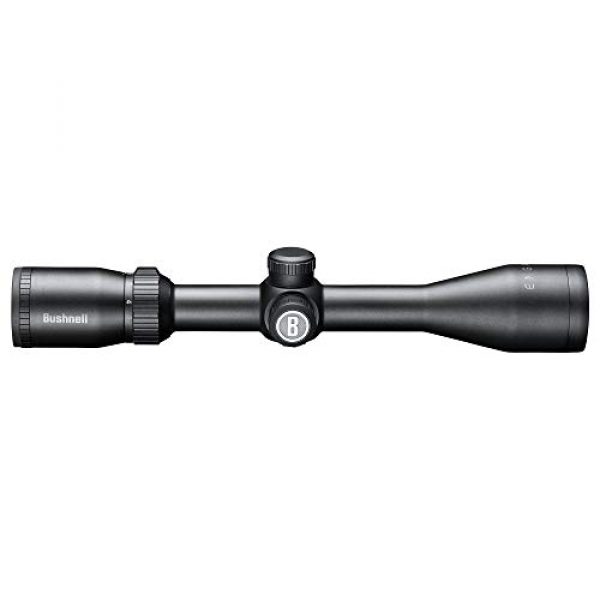

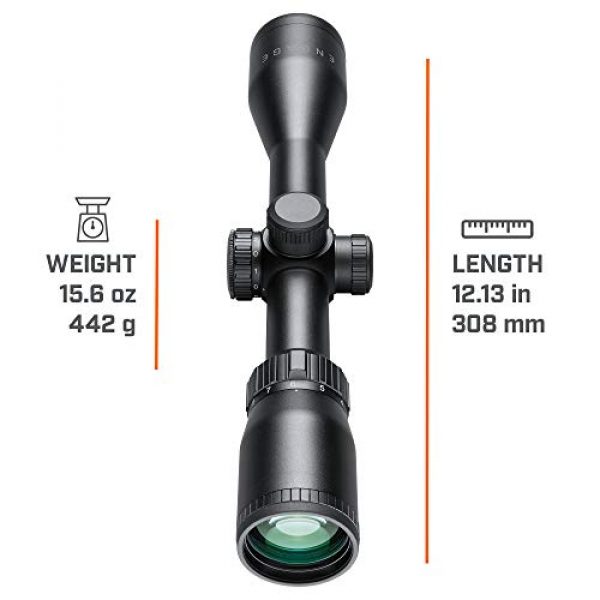

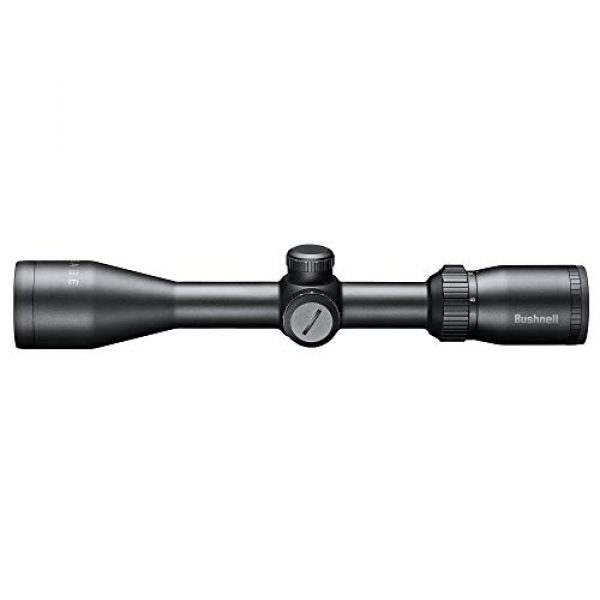

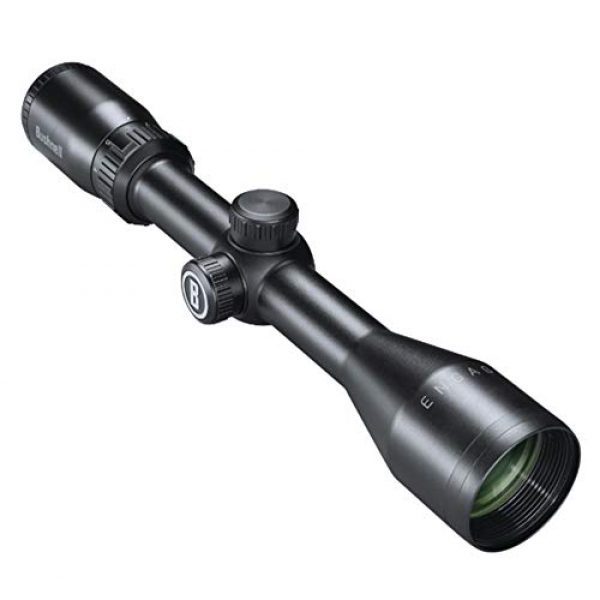

Bushnell Engage Riflescope 3-9×40 Illuminated_RE3940BS9
Bushnell optics in this model delivers best-in-class resolution and contrast through the use of high definition glass and fully multi-coated lenses.

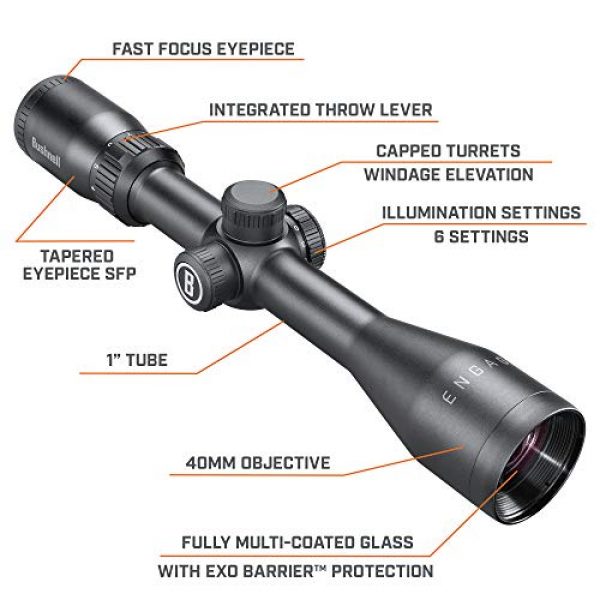

Rifle Scope Product Features

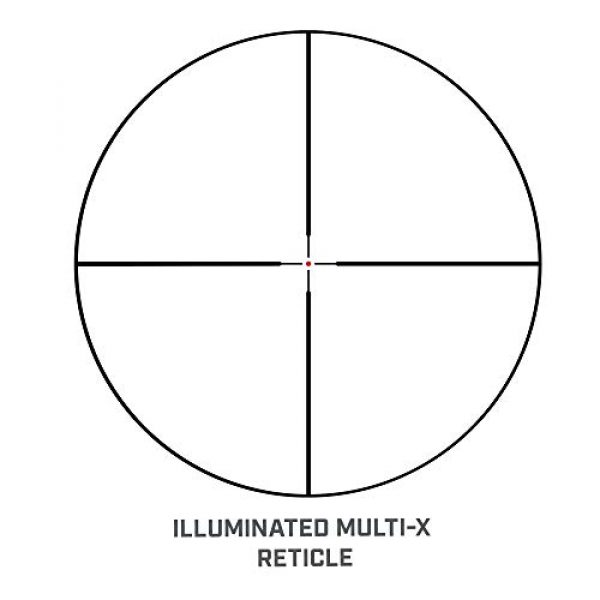

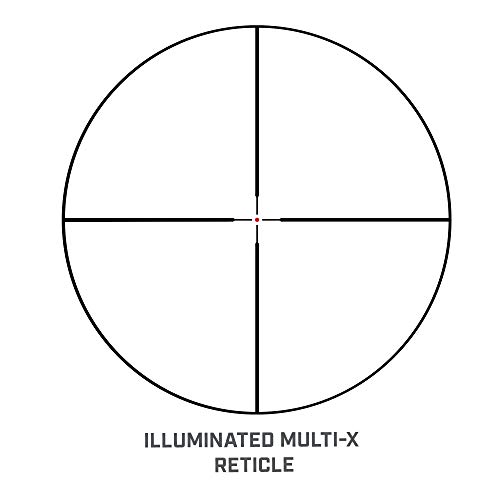

Illuminated center dot allows for easier target acquisition
Fully multi-coated optic with Ultra wide band coatings for superior optical clarity in any Condition
Exo Barrier bonds to exterior lens surfaces, and repels water, oil, fog, dust and debris making sure you can see your target in any Condition
Ultimate resolution and large exit pupil
About the Bushnell Company
Bushnell is a premium producer for firearm scopes, optics, mounting solutions, and other accessories used for firearms like rifles and long guns. They innovate and supply their scopes and related products by using materials which are long lasting and resilient. This includes the Bushnell Engage Riflescope 3-9×40 Illuminated_RE3940BS9 by Bushnell. For more shooting goods, visit their website.
Information Optics
Rifle scopes enable you to precisely align a rifle at various targets by lining up your eye with the target at range. They accomplish this through magnification by using a series of lenses inside the scope. The scope’s alignment can be dialed in to account for various environmental elements like wind speed and elevation increases or decreases to make up for bullet drop.
The scope’s purpose is to help shooters understand precisely where the bullet will hit based on the sight picture you are viewing via the scope as you line up the scope’s crosshair or reticle with the intended target. Many modern-day rifle scopes have about eleven parts which are located within and externally on the optic. These parts consist of the rifle scope’s body, lenses, elevation turrets, objective focus rings, and other components. Learn about the eleven parts of rifle scopes.
Rifle Glass Varieties
Rifle scopes can be either “first focal plane” or “second focal plane” kind of scopes. The type of focal plane an optic has establishes where the reticle or crosshair is located in relation to the scopes magnification. It simply means the reticle is located behind or in front of the magnification lens of the optic. Picking the very best type of rifle optic is based on what type of shooting or hunting you anticipate doing.
First Focal Plane Optics
Focal plane scopes (FFP) come with the reticle in front of the magnifying lens. This induces the reticle to increase in size based upon the amount of zoom being used. The benefit is that the reticle measurements are the same at the amplified distance as they are at the non amplified range. One tick on a mil-dot reticle at one hundred yards with no “zoom” is still the exact same tick at one hundred yards by using 5x “zoom”. These types of scopes are beneficial for:
- Quick acquisition, long distance types of shooting
- Shooting situations where computations are marginal
- Experienced shooters who know their target “hold over” and also “lead” ratios for their firearm
- Shooters who don’t mind the reticle is enlarged and uses up more visual sight space than a SFP reticle
Second Focal Plane Optic Facts
Second focal plane glass (SFP) come with the reticle behind the magnifying lens. This triggers the reticle to remain at the same overall size in relation to the volume of magnification being used. The effect is that the reticle measurements alter based upon the zoom applied to shoot over greater ranges considering the reticle markings present distinct increments which fluctuate with the zoom level. In the FFP illustration with the SFP glass, the 5x “zoom” 100 yard tick measurement would be 1/5th of the non “zoom” tick reticle measurement. These sorts of glass work for:
- Far away types of shooting where shooters have additional time to make ballistic calculations
- Shooting where most of the shots take place within shorter ranges and proximities
- Shooters who want a clearer optic sight picture with less area used up by the larger size FFP reticle
Zoom for Rifle Optics
The quantity of scope magnification you require is based on the kind of shooting you intend to do. Practically every kind of rifle glass supplies some degree of magnification. The amount of zoom a scope offers is established by the size, density, and curves of the lenses within the rifle scope. The magnification level of the scope is the “power” of the opic. This suggests what the shooter is checking out through the scope is magnified times the power factor of what can typically be seen by human eyes.
Info on Single Power Lens Rifle Scopes
A single power rifle optic and scope will have a zoom number designator like 4×32. This indicates the magnification power of the scope is 4x power while the objective lens is 32mm. The zoom of this kind of optic can not change given that it is fixed.
Adjustable Power Lens Rifle Optics
Variable power rifle scopes can be adjusted between magnification levels. These types of scopes will note the zoom level in a configuration such as 2-10×32. These numbers suggest the magnification of the scope could be adjusted between 2x and 10x power. This additionally includes the powers in-between 2 and 10. The power modification is accomplished using the power ring part of the scope near the back of the scope by the eye bell.
Rifle Optic Power and Ranges
Here are some suggested scope powers and the ranges where they can be successfully used. Highly magnified scopes will not be as useful as lower magnification level glass due to the fact that too much zoom can be a bad thing. The same applies to extended ranges where the shooter needs adequate power to see exactly where to properly aim the rifle at the target.
Lens Finish for Scopes
All contemporary rifle scope and optic lenses are layered. There are various types and qualities of finishings. When considering luxury rifle optical units, Lens covering can be a very important aspect of defining the rifle’s capability. The lenses are one of the most vital parts of the optic given that they are what your eye sees through while sighting a rifle in on the point of impact. The finishing on the lenses offers protection to the lens exterior and also improves anti glare from excess daylight and color profiles.
Details on Lens Coatings – HD Versus ED
Some rifle glass manufacturers also use “HD” or high-definition glass coverings that take advantage of different processes, rare earth compounds, aspects, and polarizations to enhance different colors and viewable target visibility through lenses. This HD covering is frequently used with more costly, high density glass which drops light’s ability to refract through the lens glass. Some scope vendors use “HD” to describe “ED” meaning extra-low dispersion glass. ED deals with how colors are represented on the chromatic spectrum and the chromatic aberration which is also called color distortion or fringing. Chromatic aberration can be visible over things with hard shapes as light hits the item from particular angles.
Single Coating Versus Multi-Coating for Rifle Optics
Different optic lenses can likewise have various coverings used to them. All lenses usually have at least some type of treatment or finishing applied to them before being used in a rifle scope or optic.
This lens treatment can safeguard the lens from scratches while minimizing glare and other less useful things experienced in the shooting environment while sighting in with the scope. The quality of a single layered lens depends on the scope manufacturer and how much you paid for it.
Some scope producers likewise make it a point to define if their optic lenses are covered or “multi” coated. This implies the lens has multiple treatments applied to the surfaces of the glass. If a lens receives numerous treatments, it can establish that a company is taking numerous actions to fight different natural aspects like an anti-glare finishing, a scratch resistant anti-abrasion finishing, followed by a hydrophilic covering. This additionally does not always imply the multi-coated lens will perform much better than a single layered lens. Being “better” hinges on the maker’s lens treatment solutions and the quality of glass used in developing the rifle glass.
Anti-water Covering for Rifle Glass
Water on a lens doesn’t help with keeping a clear sight picture through a scope at all. Lots of top of the line and military grade scope companies will coat their lenses with a hydrophilic or hydrophobic finish.
Alternatives for Mounting Optics on Firearms
Installing options for scopes can be found in a few options. There are the standard scope rings which are individually installed to the optic and one-piece scope mounts which cradle the scope. These different types of mounts also usually are made in quick release versions which use manual levers which permit rifle operators to quickly mount and remove the optics.
Scope Mounts with Hex Key Rings
Standard, clamp-on design mounting scope rings use hex head screws to mount to the flattop design Picatinny scope mount rails on rifles. These kinds of scope mounts use two independent rings to support the scope, and are usually constructed from 7075 T6 billet aluminum or similar materials which are designed for far away accuracy shooting. This kind of scope mount is excellent for rifle systems which need a resilient, rock solid mount which will not move despite how much the scope is moved about or jarring the rifle takes. These are the design of mounts you really want to have for a devoted optics setup on a far away scouting or sniper competition firearm that will pretty much never need to be modified or recalibrated. Blue 242 Loctite threadlocker can additionally be used on the screws to protect against the hex screws from wiggling out after they are installed safely in place. An example of these rings are the 30mm style made by the Vortex Optics company. The set usually costs around $200 USD
Quick-Release Cantilever Optic Rings
These types of quick-release rifle scope mounts can be used to rapidly attach and take off a scope from a rifle before reattaching it to a different rifle. Numerous scopes can even be swapped out if they all use a similar style mount. These types of mounts come in handy for long guns which are carried a lot, to remove the optic from the rifle for protecting the scope, or for scopes which are used between multiple rifles or are situationally focused.
Sealing and Gas Purging for Rifle Glass Tubes
Wetness inside your rifle optic can destroy a day on the range and your pricey optic by resulting in fogging and creating residue within the scope tube. Most optics prevent wetness from getting in the scope tube with a series of sealing O-rings which are water resistant. Normally, these optics can be immersed underneath 20 or 30 feet of water before the water pressure can push moisture past the O-rings. This should be sufficient moisture content prevention for basic use rifles for hunting and sporting purposes, unless you plan on taking your rifle aboard a watercraft and are concerned about the scope still working if it goes overboard and you can still find the rifle.
Gas Purged Scope Tubes
Another element of avoiding the buildup of wetness within the rifle optic’s tube is filling the tube with a gas like nitrogen. Considering that this space is already taken up by the gas, the glass is less influenced by condition shifts and pressure distinctions from the outdoor environment which might possibly allow water vapor to permeate in around the seals to fill the vacuum which would otherwise be there. These are good qualities of a decent rifle scope to look for.
