Description
Rifle Scope Product Details

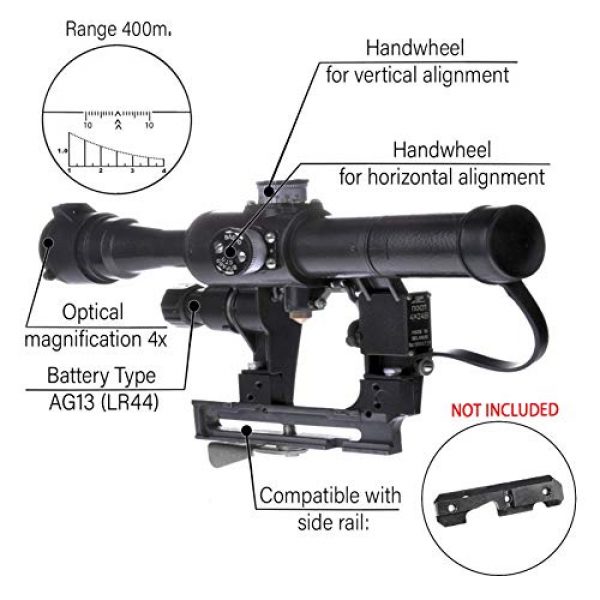

BelOMO POSP 4×24 V (B). Optical Rifle Scope. Russian Side Mount. 400m Rangefinder. 1 MOA. Combloc
POSP 4×24 V (B) model features a 4X magnification power, built-in retractable sunshade, a 400-meter Rangefinder, and makes shooting in insufficient light environment easy with reticle illumination.
The V-clamp makes it easily mountable on any of the rifles equipped with the standard side rail.
Visible magnification, ratio: 4
Angular field of view, degrees: 6
Lens clear aperture, mm: 24
Exit pupil distance, mm: 68.2
Exit pupil diameter, mm: 6
Supply voltage, V: 3
Power supply: 2 Ñ AG13
Overall dimensions, mm, max: 375x136x72
Weight, kg, max: 0.75
Included in the package:
– 1x Optical Scope
– 1x Storage Pouch
– 1x Manual in English
Rifle Scope Product Features
Original world famous POSP 4×24 V (B) scope made by BelOMO

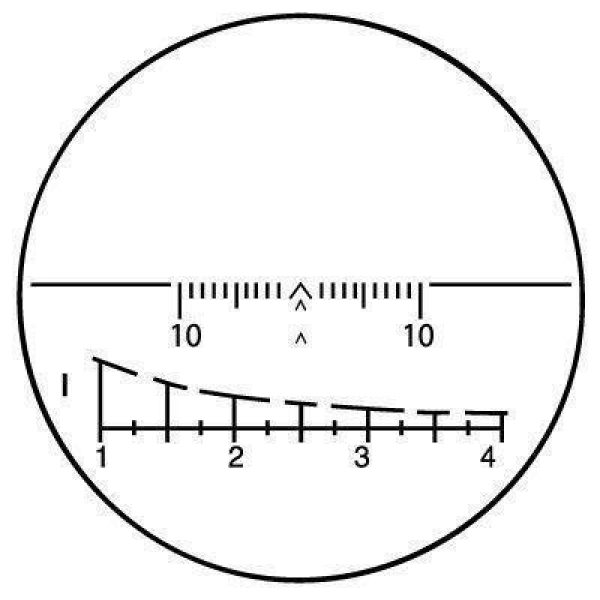

Illuminated Reticle with 400-meter Rangefinder
4X Magnification Power and 6-degree Angular Field of View
Built-in Retractable Sunshade, side rail mount
Nitrogen filling, crystal clear optics, professionally ground and waterproof
About the BelOMO Company
BelOMO is a premium maker for long gun scopes, optics, mounting solutions, and other accessories used for guns like rifles and long guns. They innovate and supply their products making the most of elements which are resilient and long lasting. This includes the BelOMO POSP 4×24 V (B). Optical Rifle Scope. Russian Side Mount. 400m Rangefinder. 1 MOA. Combloc by BelOMO. For additional shooting goods, visit their website.
Info Scopes
Rifle scopes permit you to specifically aim a rifle at different targets by aligning your eye with the target at range. They accomplish this through magnification by using a series of lenses inside the scope. The scope’s alignment can be dialed in for the consideration of various environmental aspects like wind speed and elevation decreases to account for bullet drop.
The scope’s function is to understand exactly where the bullet will hit based on the sight picture you are seeing using the scope as you align the scope’s crosshair or reticle with the intended target. The majority of modern-day rifle scopes and optics have about eleven parts which are found inside and on the exterior of the optic. These scope parts consist of the rifle scope’s body, lenses, windage dials or turrets, objective focus rings, and other components. See all eleven parts of a scope.
The Styles of Rifle Scopes
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. Picking the optimal type of rifle glass is based on what type of shooting you plan to do.
First Focal Plane Glass
Focal plane scopes (FFP) include the reticle in front of the zoom lens. These kinds of scopes are useful for:
- Quick acquisition, far away types of shooting
- Shooting situations where calculations are low
- Experienced shooters who have an idea for their aim point “hold over” plus “lead” relationships for their long gun
- Shooters who don’t mind the reticle is enlarged and occupies more visual eyesight space than a SFP reticle
About Second Focal Plane Glass
Second focal plane scopes (SFP) feature the reticle behind the zoom lens. In the FFP example with the SFP scope, the 5x “zoom” 100 yard tick would be 1/5th of the non “zoom” tick measurement.
- Long distance kinds of shooting where shooters have increased time to make ballistic estimations
- Shooting where most shots happen within much shorter distances and ranges
- Shooters who desire a clearer optic picture without space used up by the larger sized FFP reticle
Magnification for Rifle Scopes
The quantity of scope zoom you require is based on the style of shooting you would like to do. Virtually every type of rifle scope supplies some level of magnification. The volume of magnification a scope supplies is determined by the dimension, density, and curves of the lens glass inside of the rifle optic. The magnifying level of the optic is the “power” of the scope. This implies what the shooter is looking at through the scope is amplified times the power factor of what can typically be seen by human eyes.
Info About Fixed Power Lens Rifle Optics
A single power rifle scope will have a magnification number designator like 4×32. This indicates the zoom power of the scope is 4x power while the objective lens is 32mm. The zoom of this type of scope can not fluctuate considering that it is a fixed power optic.
About Variable Power Lens Rifle Scopes
Variable power rifle scopes can be adjusted between magnification increments. These types of scopes will note the magnification amount in a format like 2-10×32. These numbers mean the zoom of the scope can be changed in between 2x and 10x power. This always includes the power levels in-between 2 and 10. The power shift is achieved using the power ring part of the scope near the back of the scope by the eye bell.
Power and Range Correlations
Here are some recommended scope power settings and the ranges where they could be effectively used. Bear in mind that higher magnification scopes will not be as practical as lower magnification level optics since increased magnification can be a detractor. The exact same concept goes for extended distances where the shooter needs to have adequate power to see exactly where to properly aim the rifle.
About Rifle Optic Lens Finishing
All contemporary rifle scope lenses are coated. There are various types and qualities of lens finishes. Lens coating is an essential element of a rifle’s setup when thinking of high-end rifle optics and scope units. The lenses are among the most vital pieces of the optic because they are what your eye sees through while sighting a rifle in on the target. The finish on the lenses shields the lens surface and also improves anti glare capabilities from refracted daylight and color presence.
HD Versus ED Optic Lens Coatings
Some scope producers also use “HD” or high-definition lens coverings which use various processes, chemicals, elements, and polarizations to draw out different colors and viewable definition through the lens. Some scope makers use “HD” to refer to “ED” meaning extra-low dispersion glass.
Single Finish Versus Multi-Coating
Different optic lenses can also have various finishings used to them. All lenses typically have at least some type of treatment or finish used to them before being used in a rifle scope or optic.
This lens treatment can offer protection to the lens from scratches while decreasing glare and other less useful things experienced in the shooting environment while sighting in with the scope. The quality of a single layered lens depends on the scope manufacturer and how much you paid for it.
Some scope makers similarly make it a point to specify if their optic lenses are layered or “multi” coated. Being “much better” depends on the producer’s lens treatment technology and the quality of products used in constructing the rifle scope.
Anti-water Rifle Optic Lens Finish
Water on a lens does not improve retaining a clear sight picture through an optic at all. Numerous top of the line or premium optic producers will coat their lenses with a hydrophilic or hydrophobic coating. The Steiner Optics Nano-Protection is a good example of this type of treatment. It deals with the surface area of the Steiner glass lens so the water particles can not bind to it or develop surface tension. The result is that the water beads roll off of the scope to keep a clear, water free sight picture.
Options for Mounting Optics on Firearms
Installing approaches for scopes come in a few options. There are the basic scope rings which are individually mounted to the optic and one-piece mounts which cradle the scope. These various kinds of mounts also typically come in quick release variations which use manual levers which permit rifle shooters to rapidly install and dismount the scopes.
Optic Mounting Solutions with Hex Key Rings
Standard, clamp type mounting optic rings use hex head screws to mount to the flattop design Picatinny scope mounting rails on the tops of rifles. These varieties of scope mounts use two individual rings to support the optic, and are made from 7075 T6 billet aluminum which are manufactured for far away precision shooting. This form of scope mount is excellent for rifle systems which need a long lasting, unfailing mount which will not move despite just how much the scope is moved or abuse the rifle takes. These are the type of mounts you should have for a specialized optics system on a long distance hunting or interdiction rifle which will seldom need to be changed or adjusted. Blue 242 Loctite threadlocker can additionally be used on screws to prevent the hex screws from wiggling out after they are installed securely in place. An example of these rings are the 30mm type made by the Vortex Optics brand. The set normally costs around $200 USD
Rifle Optic Mounts with Quick-Release Cantilever Rings
These types of quick-release rifle scope mounts can be used to quickly remove a scope and attach it to a different rifle. Several scopes can also be swapped out if they all use a similar design mount. These types of mounts come in handy for rifles which are transferred a lot, to remove the optic from the rifle for protecting the scope, or for scopes which are used in between several rifles.
Glass Tube Sealing and Gas Purging
Wetness inside your rifle optic can ruin a day of shooting and your pricey optic by triggering fogging and creating residue inside of the scope tube. Most scopes prevent wetness from entering the scope tube with a system of sealing O-rings which are waterproof.
Optic Gas Purging
Another part of preventing the accumulation of wetness inside of the rifle scope’s tube is filling the tube with a gas like nitrogen. Because this space is currently taken up by the gas, the scope is less altered by temperature changes and pressure differences from the outdoor environment which could potentially permit water vapor to leak in around the seals to fill the void which would otherwise exist. These are good qualities of a decent rifle scope to seek out.
