Description
Rifle Scope Product Details

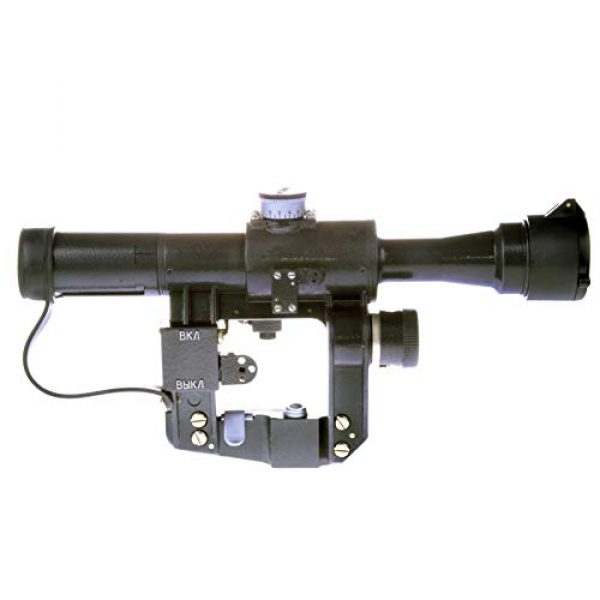

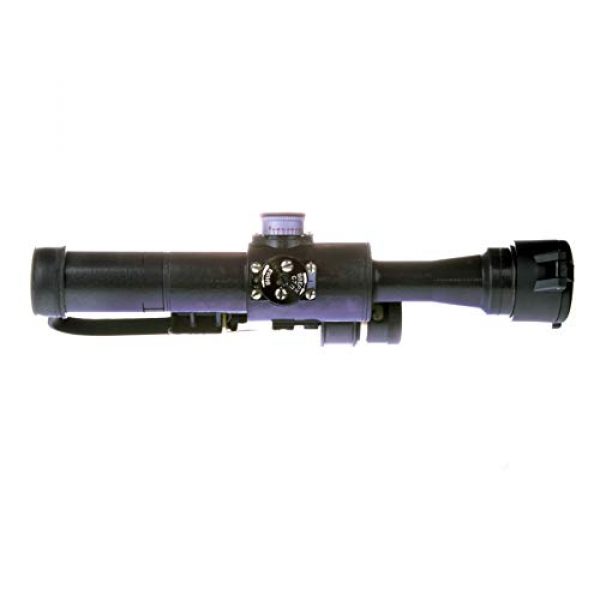

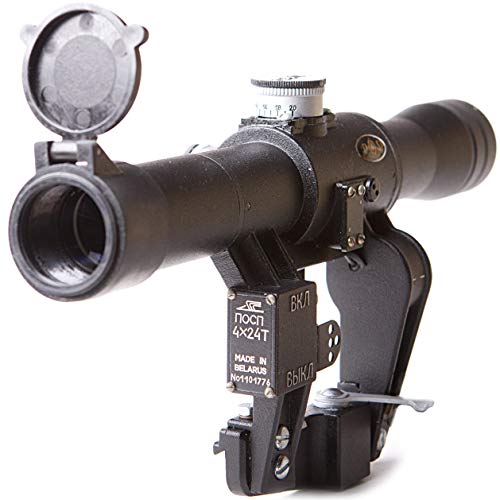

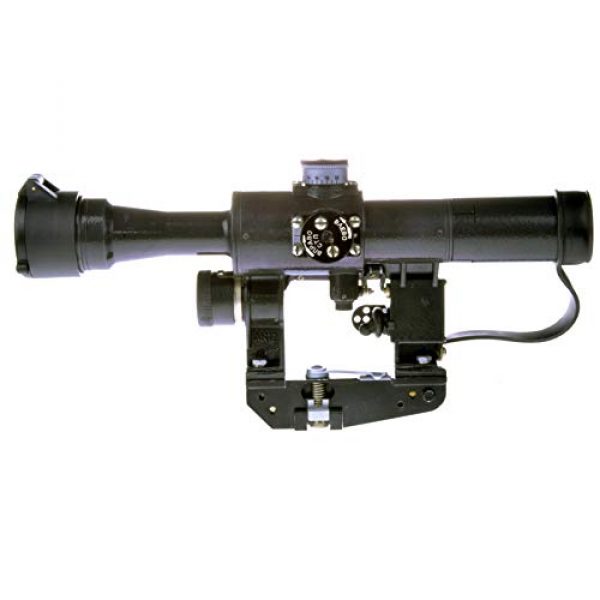

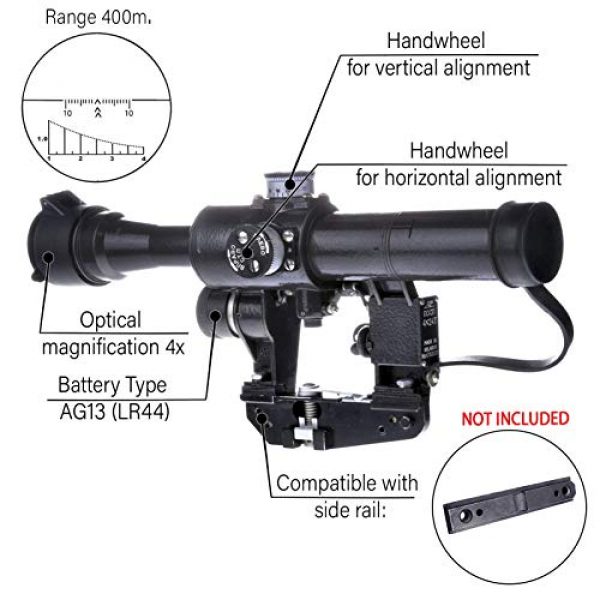

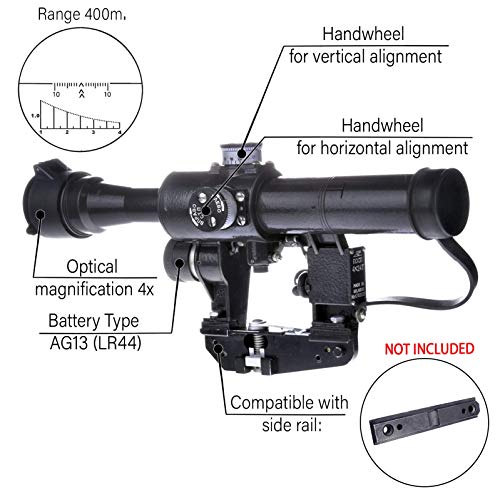

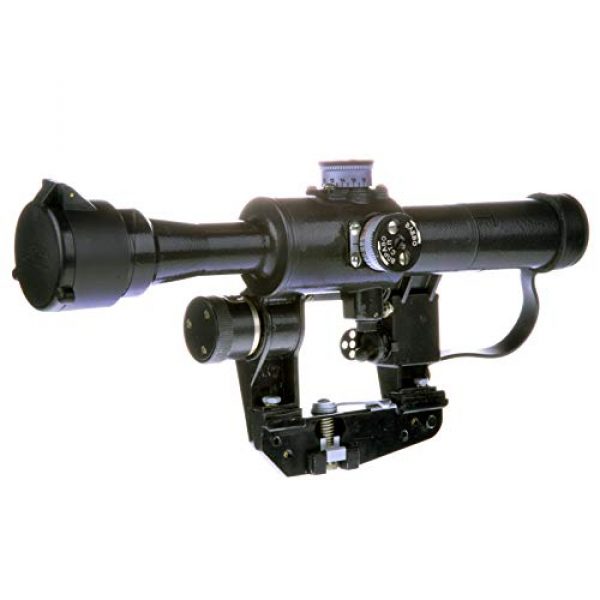

BelOMO POSP 4×24 T. Optical Rifle Scope. Russian Side Mount. 400m Rangefinder. 1 MOA. Combloc
POSP 4×24 T model features a 4X magnification power, built-in retractable sunshade, a 400-meter Rangefinder, and makes shooting in insufficient light environment easy with reticle illumination.
The V-clamp makes it easily mountable on any of the rifles equipped with the standard side rail.
Visible magnification, ratio: 4
Angular field of view, degrees: 6
Lens clear aperture, mm: 24
Exit pupil distance, mm: 68.2
Exit pupil diameter, mm: 6
Supply voltage, V: 3
Power supply: 2 Ñ AG13
Overall dimensions, mm, max: 375x136x72
Weight, kg, max: 0.75
Included in the package:
– 1x Optical Scope
– 1x Storage Pouch
– 1x Manual in English
Rifle Scope Product Features
Original world famous POSP 4×24 T scope made by BelOMO
Illuminated Reticle with 400-meter Rangefinder
4X Magnification Power and 6-degree Angular Field of View
Built-in Retractable Sunshade
Nitrogen filling, crystal clear optics, professionally ground and waterproof
About the BelOMO Brand
BelOMO is a premium producer for weapon scopes, optics, mounting solutions, and other accessories used for firearms like rifles and long guns. They design and make their products using building materials which are durable and long lasting. This includes the BelOMO POSP 4×24 T. Optical Rifle Scope. Russian Side Mount. 400m Rangefinder. 1 MOA. Combloc by BelOMO. For additional shooting goods, visit their website.
Information Rifle Optics
Rifle scopes allow you to precisely align a rifle at various targets by lining up your eye with the target over a range. They accomplish this through magnifying the target by using a set of lenses within the scope. The scope’s alignment can be adapted to account for varied ecological factors like wind speed and elevation increases to make up for bullet drop.
The scope’s purpose is to understand precisely where the bullet will hit based on the sight picture you are viewing using the optic as you align the scope’s crosshair or reticle with the intended target. A lot of contemporary rifle optics have about eleven parts which are located within and outside of the scope body. These optic pieces include the rifle scope’s body, lenses, modification dials, focus rings, and other components. Learn about the eleven parts of rifle scopes.
About Optic Types
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. Going for the optimal type of rifle scope is based on what type of shooting you plan to do.
About First Focal Plane Glass
Focal plane scopes (FFP) feature the reticle in front of the zoom lens. These types of scopes are beneficial for:
- Quick acquisition, far away kinds of shooting
- Shooting circumstances where estimations are small
- Experienced shooters who know their aim point “hold over” plus “lead” ratios for their long gun
- Shooters who don’t mind the reticle is bigger and occupies more visual sight space than a SFP reticle
Second Focal Plane Optic Details
Second focal plane optics (SFP) come with the reticle to the rear of the zoom lens. In the FFP example with the SFP scope, the 5x “zoom” 100 yard tick reticle measurement would be 1/5th of the non “zoom” tick reticle measurement.
- Far away styles of shooting where shooters have increased time to make ballistic estimations
- Shooting where most shots take place within much shorter spaces and ranges
- Shooters who choose a clearer optic picture without area taken up by the enlarged FFP reticle
Details on Rifle Optic Magnification
The quantity of zoom a scope offers is figured out by the diameter, density, and curvatures of the lenses inside of the rifle scope. The zoom of the scope is the “power” of the scope.
Single Power Lens Rifle Glass
A single power rifle scope comes with a zoom number designator like 4×32. This implies the magnification power of the scope is 4x power and the objective lens is 32mm. The magnification of this kind of optic can not adjust given that it is fixed.
Variable Power Lens Scope Info
Variable power rifle scopes have adjustable power. These types of scopes will list the zoom degree in a format like 2-10×32. These numbers indicate the zoom of the scope can be set between 2x and 10x power. This also includes the power levels in-between 2 and 10. The power adaptation is achieved by making use of the power ring part of the scope near the rear of the scope by the eye bell.
Power Levels and Range Correlations
Here are some advised scope power settings and the distances where they could be successfully used. Always remember that high power scopes and optics will not be as efficient as lower magnification level optics since too much magnification can be a detractor. The very same idea goes for longer ranges where the shooter needs to have sufficient power to see precisely where to best aim the rifle.
Scope Lens Coating
All modern rifle optic lenses are coated. There are various types and qualities of lens finishes. When shopping for high end rifle scope setups, Lens finish can be a very important component of defining the rifle’s capability. The glass lenses are among the most important pieces of the scope since they are what your eye sees through while sighting a rifle in on the target. The covering on the lenses protects the lens exterior as well as helps with anti glare from excess daylight and color perception.
About Optic Lens Coatings – HD Versus ED
Some scope makers likewise use “HD” or high-definition lens coverings which use various methods, chemicals, polarizations, and components to draw out various colors and viewable quality through the lens. Some scope manufacturers use “HD” to refer to “ED” to signify the lens has extra-low dispersion glass.
Single Rifle Glass Lens Covering Versus Multi-Coating
Different optic lenses can also have different coatings used to them. All lenses generally have at least some type of treatment or covering applied to them before being used in a rifle scope or optic.
Single layered lenses have a treatment applied to them which is normally a protective and enhancing multi-purpose treatment. This lens treatment can safeguard the lens from scratches while minimizing glare and other less advantageous things experienced in the shooting environment while sighting in with the optic. The quality of a single coated lens depends upon the scope designer and how much money you spent for it. Both the make and cost are indications of the lens quality.
Some scope manufacturers similarly make it a point to specify if their optic lenses are covered or “multi” coated. Being “much better” depends on the maker’s lens treatment technology and the quality of products used in developing the rifle scope.
Anti-water Lens Covering
Water on an optic’s lens doesn’t improve preserving a clear sight picture through a scope in any way. Lots of top of the line and premium optic makers will coat their lenses with a hydrophobic or hydrophilic finishing. The Steiner Optics Nano-Protection is a fine example of this type of treatment. It deals with the surface area of the Steiner optic lens so the H2O particles can not bind to it or develop surface tension. The result is that the water beads move off of the scope to maintain a clear, water free sight picture.
Options for Mounting Optics on Firearms
Installing solutions for scopes come in a couple of choices. There are the basic scope rings which are individually mounted to the optic and one-piece mounts which cradle the scope. These various types of mounts also normally come in quick release versions which use manual levers which enable rifle operators to rapidly install and dismount the optics.
Rifle Optic Mounting Solutions with Hex Key Rings
Normal, clamp style mounting scope rings use hex head screws to mount to the flattop style Picatinny scope mount rails on rifles. These types of scope mounts use a couple of different rings to support the optic, and are made from 7075 T6 billet aluminum which are designed for long range precision shooting. This type of scope install is excellent for rifles which need a resilient, rock solid mount which will not move no matter how much the scope is moved or abuse the rifle takes.
Quick-Release Cantilever Rifle Glass Rings
These types of quick-release rifle scope mounts can be used to rapidly take off a scope and connect it to a different rifle. Numerous scopes can also be swapped out if they all use a compatible design mount. These types of mounts are convenient for rifles which are carried a lot, to remove the optic from the rifle for protecting the scope, or for scopes which are used between numerous rifles.
Details on Rifle Glass Tube Sealing and Gas Purging
Moisture inside your rifle scope can destroy a day of shooting and your costly optic by causing fogging and creating residue inside of the scope tube. A lot of scopes protect against wetness from entering the optical tube with a system of sealing O-rings which are water resistant. Usually, these water-resistant scopes can be submerged under 20 or 30 feet of water before the water pressure can push moisture past the O-rings. This should be sufficient humidity avoidance for standard use rifles for hunting and sporting purposes, unless you intend on taking your rifle on a boat and are concerned about the optic still working if it falls overboard and you can still rescue the gun.
Gas Purged Optic Tubes
Another part of avoiding the buildup of moisture within the rifle optic’s tube is filling the tube with a gas like nitrogen. Since this space is already occupied by the gas, the scope is less affected by temp changes and pressure variations from the outdoor environment which might possibly allow water vapor to leak in around the seals to fill the vacuum which would otherwise exist. These are good qualities of a good rifle scope to look for.
