Description
Rifle Scope Product Details
BARSKA 3-9×40 Huntmaster 30/30 Riflescope
Product Description
3-9×40 Hunt master, Black Matte, 30/30, 1″ Tube, Waterproof, Fog proof and Shockproof. Fully Coated optics, Parallax-Free at 100 yards, 1/4 MOA Fingertip adjustments, and Scope Caps Included. Perfect choice for serious shooters or hunters who want a wealth of features and performance but don’t want to spend a fortune. Features: – Black Matte – 30/30 – 1″ Tube – Waterproof – Fog proof – Shockproof – Parallax-Free at 100 yards – Fully Coated – 1/4 MOA – Scope Caps Specifications: – Magnification: 3-9x – Objective Lens: 40mm – Waterproof: Yes – Fog proof: Yes – Reticle: 30/30 – Exit Pupil: 13. 3-4. 4mm – Optical Coating: Fully Coated – Field of View (ft@100yds/m@100m): 36/12@3x, 14/4. 6@9x – Eye Relief: 3. 3 inch – Click Value: 1/4 – Adjustment Knob: Side adj. windage and elevation – Tube Diameter: 1 inch – Finish: Black Matte – Weight: 12. 9 oz. – Length: 12. 2 inch – Included Accessories: Scope Caps and Lens Cloth – : Limited Lifetime
Amazon.com
The Huntmaster line of riflescopes, from renowned optics company BARSKA, is made to provide target shooters and hunters with firing precision and in-field dependability at an affordable price. Fully-coated optics maximize light transmission for bright, crisp images, while the rugged one-inch monotube is water-, fog-, and shock-proof.
Specifications
3-9X magnification
40-millimeter objective lens
One-inch tube diameter
36-foot field of view at 100 yards at 3X, 14-foot field of view at 100 yards at 9X
13.3-to-4.4-millimeter exit pupil
3.3-inch eye relief
12.2-inch length
12.9-ounce weight
0.25-inch click value
Side adjustment knobs for windage and elevation
Fully coated optics
30/30 reticle
Water-, fog-, and shock-proof
Black matte finish
Includes scope caps and lens cloth
Lifetime Warranty
This BARSKA optical product includes a limited lifetime manufacturer’s warranty against defects in materials and workmanship.
About BARSKA
BARSKA — with corporate offices, warehouse, and distribution in La Verne, CA — is a worldwide optics company offering an extensive line of precision sport and scientific products including binoculars, riflescopes, spotting scopes, telescopes, and microscopes. The company’s products are designed and built with the latest optical technology, allowing users to enjoy beloved outdoor activities even more, and achieve exacting results when studying objects large and small.
Rifle Scope Product Features
Waterproof, fogproof and shockproof
Parallax free at 100 yards
Fully coated
Includes scope caps
Huntmaster line of riflescopes is made to provide target shooters and hunters with firing precision and in-field dependability at affordable price
AC10030
FOV: 36ft / 12m @3x, 14ft / 4.6m @9x
Tube Diameter: 1 in
Eye Relief: 3.3 in
Exit Pupil: 13.3mm – 4.4mm
Focal Plane: Second
Parallax Adjustment: Yes
3-9x40mm Huntmaster 30/30 Rifle Scope
by Barska
The 3-9×40 Huntmaster Riflescope from Barska is a perfect choice for serious shooters and hunters who are looking for the most essential features of a riflescope at a very affordable price. This Huntmaster Rifle Scope is great for general purpose hunting as well as target shooting and plinking. Parallax-free at 100 yards and fully coated optics makes this a high-value bang-for-the-buck riflescope.
3-9x Magnification
Waterproof, Fogproof and Shockproof
Fully Coated Optics
Parallax Free at 100 yrds
1/4 MOA Click Adjustments
Features
Durable, Light Weight Riflescope
This light weight durable riflescope is the perfect accessory to you hunting rifle.

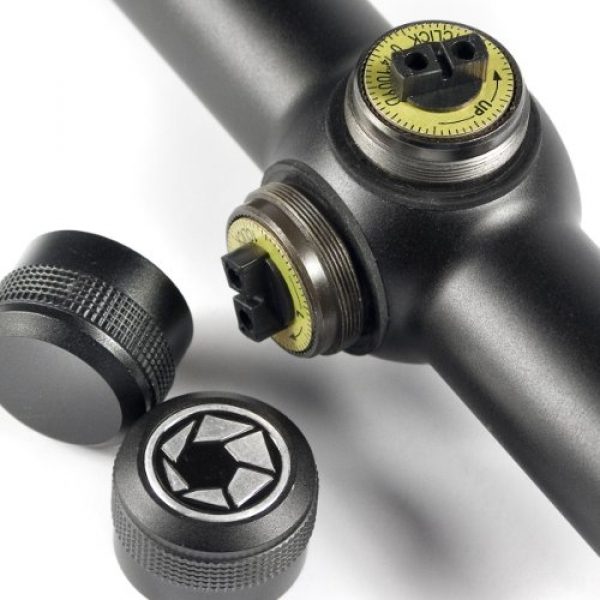

Turret Adjustment
Comes with Moa turret adjustments hidden under the turret caps.
Zoom Adjustment
3-9x zoom allows users close to mid-range targeting.
Reticle
Comes with 30/30 or duplex reticle.
AC10030 AC11204 AC10034 AC10032
Magnification 3x – 9x 3x – 9x 3x – 9x 3x – 9x
Objective Lens 40mm 40mm 50mm 40mm
Lens Coating Fully Coated Fully Coated Fully Coated Fully Coated
Click Value (MOA) 1/4 1/4 1/4 1/4
Reticle 30/30 Reticle 30/30 Reticle 30/30 Reticle Easy Shot Reticle
Length (in) 12.2 12.2 12.2 12.2
Product Weight (oz) 12.9 12.9 20.1 12.9
About the BARSKA Brand
BARSKA is a premium manufacturer for long gun scopes, optics, mounting solutions, and other add-ons used for guns like rifles and long guns. They create and build their mounts, scopes, and related products choosing elements which are durable and long lasting. This includes the BARSKA 3-9×40 Huntmaster 30/30 Riflescope by BARSKA. For additional shooting goods, visit their website.
What You Need to Know About Rifle Scopes
Rifle scopes permit you to specifically aim a rifle at various targets by aligning your eye with the target at range. They accomplish this through zoom by making use of a series of lenses inside the scope. The scope’s positioning can be adapted to account for separate natural elements like wind and elevation increases or decreases to account for bullet drop.
The scope’s purpose is to help shooters understand exactly where the bullet will hit based on the sight picture you are seeing through the scope as you line up the scope’s crosshair or reticle with the target. Many modern-day rifle scopes and optics have about 11 parts which are located within and externally on the optic. These parts consist of the rifle scope’s body, lenses, modification dials, focus rings, and other parts. See all eleven parts of optics.
Rifle Glass Varieties
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. Picking the optimal type of rifle scope is based on what type of shooting you plan to do.
Info on First Focal Plane Scopes
Focal plane scopes (FFP) come with the reticle in front of the magnification lens. This triggers the reticle to increase in size based upon the extent of zoom being used. The outcome is that the reticle measurements are the same at the enhanced range as they are at the non magnified range. One tick on a mil-dot reticle at 100 yards with no “zoom” is still the same tick at 100 yards by using 5x “zoom”. These types of scopes are practical for:
- Quick acquisition, long distance kinds of shooting
- Shooting scenarios where estimations are very little
- Experienced shooters who understand their aim point “hold over” plus “lead” equations for their long gun
- Shooters who don’t mind the reticle is enlarged and takes up more visual eyesight space than a SFP reticle
Second Focal Plane Glass
Second focal plane glass (SFP) feature the reticle to the rear of the zoom lens. This causes the reticle to remain at the very same size in relation to the amount of zoom being used. The end result is that the reticle dimensions evolve based on the zoom chosen to shoot over greater ranges considering that the reticle measurements present various increments which vary with the magnification. In the FFP example with the SFP glass, the 5x “zoom” 100 yard tick reticle measurement would be 1/5th of the non “zoom” tick measurement. These particular types of optics work for:
- Far away types of shooting where shooters have extra time to make ballistic estimations
- Shooting where most shots take place within shorter ranges and spaces
- Shooters who prefer a clearer optic picture without area used up by the bigger FFP reticle
Rifle Scope Magnification
The amount of magnification a scope offers is determined by the diameter, thickness, and curvatures of the lenses inside of the rifle scope. The zoom of the scope is the “power” of the scope.
Single Power Lens Optic Info
A single power rifle scope or optic will have a zoom number designator like 4×32. This implies the zoom power of the scope is 4x power while the objective lens is 32mm. The magnification of this type of scope can not adjust given that it is a fixed power scope.
Variable Power Lens Glass Details
Variable power rifle scopes can be adjusted between magnification levels. It will note the magnification level in a format such as 2-10×32. These numbers imply the magnification of the scope could be changed between 2x and 10x power. This also includes the power levels in-between 2 and 10. The power manipulation is accomplished by operating the power ring part of the scope near the back of the scope by the eye bell piece.
Scope Power Level and Range Correlation
Here are some suggested scope power levels and the distances where they could be efficiently used. High power optics will not be as effective as lower magnification level scopes because too much zoom can be a bad thing. The same relates to extended ranges where the shooter needs to have adequate power to see exactly where to properly aim the rifle at the target.
Details on Rifle Optic Lens Coatings
All modern rifle optic lenses are coated. There are various types and qualities of glass coverings. When thinking about high end rifle optical setups, Lens finish can be a crucial component of defining the capability of the rifle. The lenses are one of the most vital components of the glass considering they are what your eye sees through while sighting a rifle in on the target. The finish on the lenses offers protection to the lens surface and helps with anti glare capabilities from refracted light and color exposure.
ED Versus HD Optics
Some rifle glass suppliers even use “HD” or high-def lens coverings which make the most of different procedures, components, polarizations, and chemicals to enhance various colors and viewable definition through lenses. This high-definition finish is commonly used with higher density glass which decreases light’s opportunity to refract by means of the lens glass. Some scope producers use “HD” to refer to “ED” signifying extra-low dispersion glass. ED handles how certain colors are represented on the chromatic spectrum and the chromatic deviance or aberration which is also called color distortion or fringing. Chromatic aberration can be visible over objects with hard edges and outlines as light hits the item from specific angles.
Single Finish Versus Multi-Coating
Various optic lenses can also have various finishes applied to them. All lenses normally have at least some type of treatment or coating used to them before they are used in a rifle scope or optic.
This lens treatment can offer protection to the lens from scratches while decreasing glare and other less useful things experienced in the shooting environment while sighting in with the scope. The quality of a single layered lens depends on the scope maker and how much you paid for it.
Some scope producers also make it a point to define if their optic lenses are coated or “multi” coated. Being “better” depends on the manufacturer’s lens treatment innovation and the quality of products used in constructing the rifle scope.
Anti-water Coating for Rifle Scopes
Water on a scope’s lens doesn’t assist with preserving a clear sight picture through a scope whatsoever. Numerous top of the line or high-end optic makers will coat their lenses with a hydrophobic or hydrophilic covering. The Steiner Optics Nano-Protection is a good example of this type of treatment. It treats the surface area of the Steiner optic lens so the H2O particles can not bind to it or create surface tension. The result is that the water beads move off of the scope to preserve a clear, water free sight picture.
Optic Installation Choices
Installing solutions for scopes come in a few options. There are the basic scope rings which are individually mounted to the optic and one-piece mounts which cradle the scope. These various types of mounts also generally are made in quick release versions which use manual levers which permit rifle shooters to rapidly install and dismount the optics.
Hex Key Optic Rings
Standard, clamp-on style mounting scope rings use hex head screws to mount to the flattop style Picatinny scope mounting rails on rifles. These types of scope mounts use a pair of independent rings to support the scope, and are normally constructed from 7075 T6 billet aluminum which are developed for far away accuracy shooting. This kind of scope mount is exceptional for rifles which are in need of a durable, unfailing mount which will not shift no matter just how much the scope is moved about or jarring the rifle takes. These are the style of mounts you really want to have for a specialized scope setup on a reach out and touch someone scouting or hard target interdiction long gun that will seldom need to be modified or recalibrated. Blue 242 Loctite threadlocker can also be used on the mount screws to prevent the hex screw threads from backing out after they are installed securely in place. An example of these rings are the 30mm style made by Vortex Optics. The set generally costs around $200 USD
Quick-Release Cantilever Rifle Optic Rings
These types of quick-release rifle scope mounts can be used to rapidly attach and remove a scope from a rifle. Multiple scopes can also be switched out if they all use a similar style mount. The quick detach design is CNC machined from anodized 6061 T6 aluminum and the mounting levers connect nicely to a flat top style Picatinny rail. This allows the scope to be sighted in while on the rifle, taken off of the rifle, and remounted while preserving precision. These kinds of mounts are useful and handy for rifles which are carried a lot, to remove the scope glass from the rifle for protection, or for aiming systems which are chosen for use between numerous rifles. An example of this mount type is the 30mm mount from Vortex Optics. It normally costs around $250 USD
Rifle Optic Tube Sealing and Gas Purging
Wetness inside your rifle optic can mess up a day of shooting and your pricey optic by triggering fogging and developing residue inside of the scope tube. Most scopes avoid moisture from going into the scope tube with a system of sealing O-rings which are waterproof.
Details on Scope Tube Gas Purging
Another element of preventing the accumulation of wetness within the rifle optic tube is filling the tube with a gas like nitrogen. Considering that this space is already occupied by the gas, the scope is less affected by temp alterations and pressure distinctions from the outside environment which may possibly allow water vapor to leak in around the seals to fill the void which would otherwise be there. These are good qualities of a good rifle scope to seek out.
