Rifle Scope Product Details

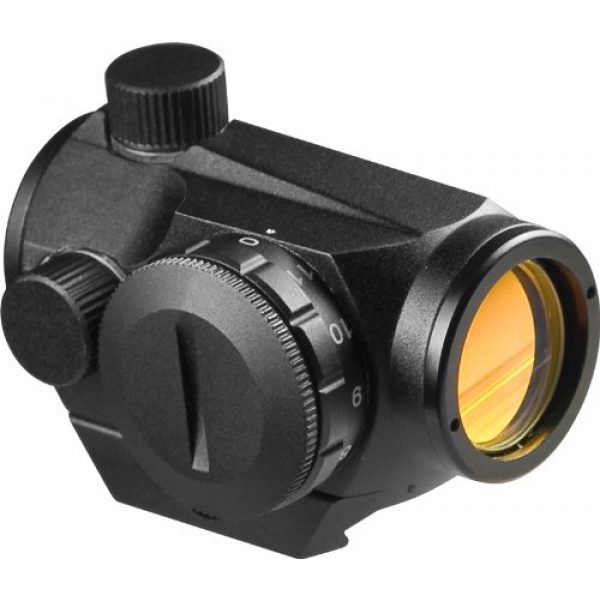

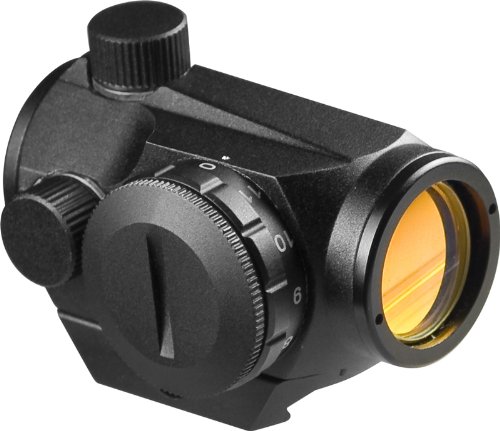

BARSKA 1X20mm Red Dot Compact Riflescope
Product Description
Offering ultra-fast target acquisition, pinpoint accuracy, and a wide field of view, the Barska 1x20mm Red Dot riflescope is ideal for handguns, rimfire rifles, shotguns, pistols, blackpowders, and crossbows. The Red Dot scope is equipped with an adjustable rheostat for variable reticle brightness control, along with multicoated optics that deliver a clear image even in low-light conditions. Hunters will also appreciate the anti-glare coatings, which make it easier to see your prey on sunny days. And thanks to the waterproof, fogproof, and shockproof housing, the Red Dot scope is functional in a variety of environments and weather conditions. Other features include a compact size, a long battery life, and an illuminated reticle.
Amazon.com
Offering ultra-fast target acquisition, pinpoint accuracy, and a wide field of view, the Barska 1x20mm Red Dot riflescope is ideal for handguns, rimfire rifles, shotguns, pistols, blackpowders, and crossbows. The Red Dot scope is equipped with an adjustable rheostat for variable reticle brightness control, along with multicoated optics that deliver a clear image even in low-light conditions. Hunters will also appreciate the anti-glare coatings, which make it easier to see your prey on sunny days. And thanks to the waterproof, fogproof, and shockproof housing, the Red Dot scope is functional in a variety of environments and weather conditions. Other features include a compact size, a long battery life, and an illuminated reticle.
The Red Dot scope includes an illuminated reticle for pinpoint accuracy.
Specifications:
Magnification: 1x
Objective lens: 20mm

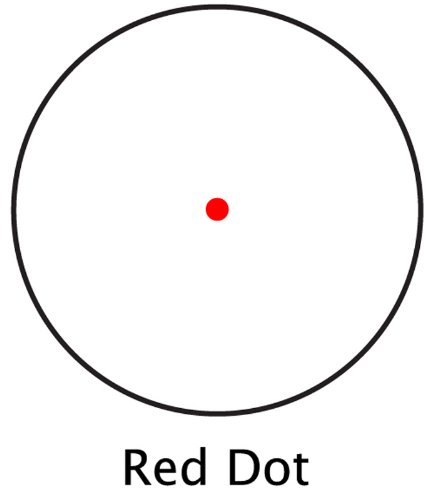

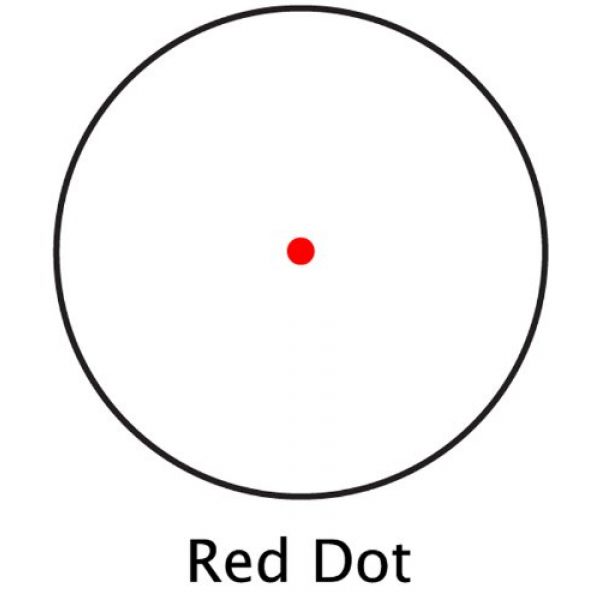

Reticle: IR Red Dot
Exit pupil: 20mm
Optical coating: Multicoated
Field of view: 36 feet @ 100 yards
Eye relief: Unlimited
Click value: 1-1/8 inches
Adjustment knob: Adjustable rheostat, adjustable windage and elevation
Finish: Black matte
Length: 10 inches
Weight: 21.86 ounces
Included accessories: Scope covers, battery, and lens cloth
Warranty: 1 year
About Barska
Barska is a worldwide sport optics company with strong brand recognition within the optics industry, with corporate offices in La Verne, California, and warehouses and distribution centers in La Verne and Shanghai, China. Barska offers an extensive line of precision sport optics products, such as binoculars, riflescopes, spotting scopes, and telescopes. The product range has been designed and built with the latest optical technology, allowing users to enjoy all their favorite leisure time outdoor activities, including bird watching, outdoor observation, hunting, fishing, stargazing, concerts, and sporting events.
Rifle Scope Product Features
Precision Aiming: The 1x20mm red dot compact sight features 1.18 MOA click adjustments for precision accuracy.
Quality Construction: With unlimited eye-relief, multi-coated optics, and anti-reflective coating, the sight is ideal for rifles, handguns, shotguns, and crossbows.
Red Dot Reticle: The 2 MOA illuminated red dot sight with finger adjustable rheostat is suitable for rifles, handguns, shotguns, and crossbows.
Accessories: The sight comes with set of picatinny / weaver style mount and lens covers.
AC11428
Specs
Item: AC11428
FOV: 36ft / 12m
Exit Pupil: 20mm
Eye Relief: Unlimited
Coating: Multi-Coated
Length: 2.5″
Weight: 4.23 oz
1X20mm Red Dot Micro Compact Riflescope
by Barska
Offering ultra-fast target acquisition, pinpoint accuracy, and a wide field of view, the Barska 1x20mm Red Dot riflescope is ideal for handguns, rifles, shotguns, and crossbows. The scope is equipped with an adjustable rheostat for variable reticle brightness control, multicoated optics that deliver a clear image even in low-light conditions, and anti-glare coatings makes it easier to see on sunny days.
1x Magnification and 20mm Objective Lens
Adjustable rheostat, adjustable windage and elevation
Functional in a variety of environments and weather conditions
Waterproof, Fogproof, and Shockproof housing
Compact Weaver Style Base
Compact Precision Solution
Light Weight & Durable: This compact light weight durable red dot is the perfect accessory to any rifle, handgun, or shotgun for quick target acquisition.
Quality Glass: The anti-reflective multi-coating optics allows for crisp, clear images through these quality lenses, with unlimited eye relief and wide field of view.
2 MOA Red Dot: The red dot sight features a 2 MOA dot with 1.18 MOA click adjustments and a rheostat that allows brightness control.
AC11428 AC13160 AC11586 AC10332 AC10328 AC13158
Magnification 1x 1x 1x 1x 1x 1x
Objective Lens 20mm 30mm 20mm 50mm 30mm 20mm
Lens Coating Multi-Coated Fully Multi-Coated Multi-Coated Lens Multi-Coated Lens Multi-Coated Lens Fully Multi-Coated
Click Value 1.18 MOA 1 MOA 1.18 MOA 1/2 MOA 1/2 MOA 1 MOA
FOV 36ft / 12m 57ft / 19m 36ft / 12m 81ft / 27m 57ft / 19m 36ft / 12m
Length (in) 2.5″ 4.13″ 2.5″ 4″ 3.7″ 2.95″
Product Weight 4.23 oz 10.8 oz 4.23 oz 7 oz 4.8 oz 7 oz
About the BARSKA Manufacturer
BARSKA is a premium company for weapon scopes, optics, mounts, and other accessories used for guns like rifles and long guns. They design and manufacture their mounts, scopes, and related products by choosing materials which are durable and long lasting. This includes the BARSKA 1X20mm Red Dot Compact Riflescope by BARSKA. For more shooting products, visit their website.
About Scopes
Rifle scopes permit you to exactly align a rifle at different targets by aligning your eye with the target at range. They accomplish this through magnifying the target by utilizing a set of lenses within the scope. The scope’s alignment can be adapted for the consideration of various natural elements like wind and elevation increases or decreases to make up for bullet drop.
The scope’s function is to understand exactly where the bullet will hit based upon the sight picture you are viewing via the scope as you line up the scope’s crosshair or reticle with the intended point of impact. Most modern rifle optics have about 11 parts which are found internally and on the exterior of the scope body. These parts consist of the rifle scope’s body, lenses, windage dials, focus rings, and other parts. See all eleven parts of a scope.
About Rifle Glass Types
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. The form of focal plane a scope has establishes where the reticle or crosshair lies in relation to the scopes magnifying adjustments. It actually indicates the reticle is located behind or ahead of the magnifying lens of the scope. Picking out the very best sort of rifle scope is dependent on what variety of shooting you plan on doing.
Info About First Focal Plane Glass
Focal plane scopes (FFP) feature the reticle in front of the magnification lens. These kinds of scopes are beneficial for:
- Quick acquisition, far away kinds of shooting
- Shooting situations where calculations are minimal
- Experienced shooters who know their aim point “hold over” as well as “lead” correlations for their weapon
- Shooters who don’t mind the reticle is bigger and takes up more visual eyesight space than a SFP reticle
Second Focal Plane Optic Facts
Second focal plane scopes (SFP) come with the reticle behind the zoom lens. In the FFP example with the SFP scope, the 5x “zoom” one hundred yard tick would be 1/5th of the non “zoom” tick measurement.
- Far away types of shooting where shooters have additional time to make ballistic computations
- Shooting where most shots occur within much shorter distances and ranges
- Shooters who want a clearer optic picture with less room used up by the bigger FFP reticle
Details on Glass Magnification
The extent of scope magnification you require depends upon the type of shooting you want to do. Nearly every style of rifle optic gives some amount of zoom. The amount of zoom a scope delivers is determined by the diameter, density, and curves of the lens glass inside of the rifle scope. The magnifying level of the scope is the “power” of the scope. This indicates what the shooter is aiming at through the scope is magnified times the power element of what can generally be seen by human eyes.
About Fixed Single Power Lens Scopes
A single power rifle scope comes with a magnification number designator like 4×32. This indicates the zoom power of the scope is 4x power while the objective lens is 32mm. The magnification of this type of scope can not fluctuate given that it is set from the factory.
Adjustable Power Lens Rifle Scopes
Variable power rifle scopes use variable power levels. The power modification is achieved by using the power ring part of the scope near the back of the scope by the eye bell.
Power and Range
Here are some suggested scope power settings and the distances where they could be effectively used. Highly magnified glass will not be as efficient as lower powered rifle scope glass due to the fact that too much magnification can be a negative aspect depending on your shooting distance. The same idea relates to longer distances where the shooter needs to have sufficient power to see where to best aim the rifle at the target.
Details on Lens Coverings
All current rifle optic lenses are layered. Lens coating is a crucial element of a rifle system when looking at high end rifle optics and scope equipment.
HD Versus ED Lens Coatings
Some optic manufacturers also use “HD” or high-def glass coverings which use various procedures, aspects, polarizations, and chemical applications to enhance numerous color ranges and viewable definition through the lens. This high-def finish is normally used with higher density lens glass which decreases light’s capability to refract by means of the lens glass. Some scope manufacturers use “HD” to describe “ED” indicating extra-low dispersion glass. ED deals with how certain colors are represented on the chroma spectrum and the chromatic aberration or difference which is also called color distortion or fringing. Chromatic aberration may be noticeable around things with hard outlines as light hits the object from particular angles.
Single Finish Versus Multi-Coating for Glass
Various optic lenses can likewise have different coatings used to them. All lenses normally have at least some type of treatment or finishing used to them prior to being used in a rifle scope or optic.
Single covered lenses have a treatment applied to them which is normally a protective and enhancing multi-purpose treatment. This lens treatment can protect the lens from scratches while lowering glare and other less advantageous things experienced in the shooting environment while sighting in with the scope. The quality of a single covered lens depends upon the scope developer and the amount you spent for it. Both are indications of the lens quality.
Some scope manufacturers likewise make it a point to define if their optic lenses are coated or “multi” coated. This suggests the lens has multiple treatments applied to the surfaces. If a lens receives multiple treatments, it can show that a producer is taking several steps to combat various natural elements like an anti-glare finishing, a scratch resistant anti-abrasion coating, followed by a hydrophilic finishing. This also does not always suggest the multi-coated lens will perform much better than a single covered lens. Being “much better” depends on the producer’s lens treatment techniques and the quality of glass used in constructing the rifle scope.
Hydrophobic Lens Coating
Water on a lens doesn’t assist with preserving a clear sight picture through a scope at all. Many top of the line and military grade optic companies will coat their lenses with a hydrophilic or hydrophobic finishing.
Alternatives for Mounting Optics on Long Guns
Installing approaches for scopes come in a couple of choices. There are the standard scope rings which are separately mounted to the scope and one-piece scope mounts which cradle the scope. These different kinds of mounts also normally can be found in quick release variations which use toss levers which allow rifle shooters to quickly mount and remove the optics.
Rifle Glass Mounts with Hex Key Rings
Normal, clamp design mounting scope rings use hex head screws to mount to the flattop design Picatinny scope installation rails on rifles. These types of scope mounts use two different rings to support the optic, and are made from 7075 T6 billet aluminum which are created for long range precision shooting. This type of scope mount is perfect for rifles which need a resilient, sound mount which will not move no matter how much the scope is moved or abused.
Quick-Release Cantilever Glass Ring Mounting Solutions
These types of quick-release rifle scope mounts can be used to rapidly attach and take off a scope from a rifle. If they all use a comparable design mount, multiple scopes can also be switched in the field. The quick detach mount style is CNC machined from anodized 6061 T6 aluminum and the mounting levers connect securely to a flat top type Picatinny rail. This enables the scope to be sighted in while on the rifle, removed from the rifle, and remounted while retaining precision. These types of mounts come in beneficial for shooting platforms which are transported a lot, to take off the optic from the rifle for protection, or for scopes which are chosen for use in between numerous rifles. An example of this mount type is the 30mm mount from Vortex Optics. It normally costs around $250 USD
Sealing and Gas Purging for Scope Tubes
Moisture inside your rifle optic can mess up a day of shooting and your costly optic by causing fogging and creating residue inside of the scope tube. Many scopes avoid moisture from entering the scope tube with a system of sealing O-rings which are waterproof.
Scope Gas Purging
Another element of preventing the accumulation of wetness within the rifle scope’s tube is filling the tube with a gas like nitrogen. Considering that this space is currently occupied by the gas, the optic is less affected by temperature shifts and pressure variations from the external environment which may possibly enable water vapor to leak in around the seals to fill the vacuum which would otherwise be there. These are good qualities of a good rifle scope to seek out.
