Rifle Scope Product Details
Athlon Optics Talos BTR 4-14×44 First Focal Plane Riflescope, APLR2 FFP IR MIL Reticle, Black (215028)
Rifle Scope Product Features
About this item
First focal plane reticle stays valid at all power settings allowing you to fully utilize the Specially designed reticle that shrinks or grows along with your target as you zoom in or out
Reticle etched on the Glass that provides excellent backing support for complex reticle design and offers great durability and much higher shock resistance to Recoil
The illuminated reticle provides greater visibility during dusk and dawn and other low ambient light environment
Heat treated one piece tube gives the scope extra strength over multi-piece tubes. A one piece tube also is better at keeping moisture out thus keeping your scope fog proof for the life of the product
Nitrogen purging dramatically reduces the moisture inside the tube and helps maintaining Fog proof and waterproof
Talos BTR
The Talos BTR is available in two configurations; 4-14×44 – First Focal Plane or 1-4×24 Second Focal Plane. Both of these scopes are great entry level scopes for competitive and tactical shooting. Featuring Multi-Coated lenses for clarity and brightness in low light conditions as well as being waterproof, this family is ready to get you started shooting.
Key Features
Fully Multi-coated
Fully Multi-coated optics effectively reduces reflected light and increases the transmission of light giving you a brighter image than normal single coated lenses.
Waterproof
Waterproof to protect the scope in the harshest weather conditions or if accidentally submerged underwater.
Nitrogen Purged
Nitrogen purging dramatically reduces the moisture inside the tube and helps maintaining fogproof and waterproof.

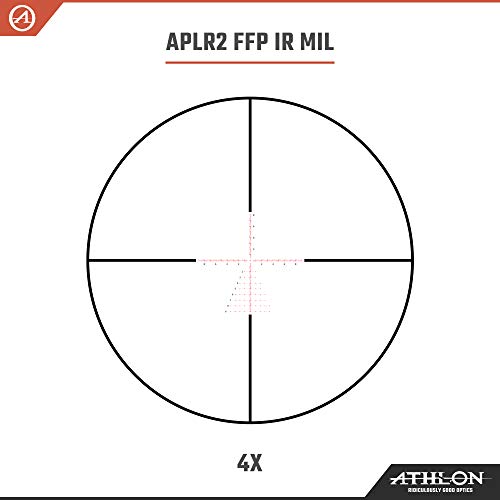

APLR2 FFP IR MIL
APLR2 FFP IR MIL reticle is designed to maximize your performance on precision long and mid range shooting with accurate ranging capability. It will help you quickly determine distance, holdover positions, windage correction and leads for a moving target. The unique design of fine .2 mil hach mark, having .2 and .4 on one side of eather horizontal or vertical line and .6 and .8 on another side, helps the shooter quickly locate a holdover position with .2 mil increments within a blink of an eye. The illuminated fine reticle provides excellent low light visibility and windadge holdovers on the bullet droplines all the way up to 9 mils with .2 mil marks increments between.
Subtensions in MIL: A1 (0.04); A2 (0.025); A3 (0.05); A4 (0.1); A5 (0.5); A6 (0.025); B1 (0.1); B2 (0.2); B3 (0.2); C1 (0.2); C2 (0.5); D1 (1); D2 (0.2); D3 (1); D4 (0.2); D5 (0.2).
1-4×24 AHSR14 MIL 4-14×44 APLR2 MIL
Tube Diameter 30 mm 30 mm
Focal Plane Second First
FoV at 100Y 110-26 ft 27.2-7.9 ft
Eye Relief 6.26-3.5″ 3.23-3.15″
Turret Style Exposed Exposed
Length 9.2″ 12.9″
Weight 18 oz 23.6 oz
About the Athlon Optics Scope Maker
Athlon Optics is a premium company for rifle scopes, optics, mounting solutions, and other add-ons used for firearms like rifles and long guns. They style and build their scopes, mounts, and related products choosing materials which are long lasting and durable. This includes the Athlon Optics Talos BTR 4-14×44 First Focal Plane Riflescope, APLR2 FFP IR MIL Reticle, Black (215028) by Athlon Optics. For more shooting items, visit their site.
What You Need to Know About Optics
Rifle scopes allow you to exactly aim a rifle at various targets by lining up your eye with the target over a range. They do this through magnifying the target by employing a series of lenses inside the scope. The scope’s positioning can be adapted for consideration of various ecological factors like wind speed and elevation increases or decreases to account for bullet drop.
The scope’s function is to help shooters understand precisely where the bullet will land based upon the sight picture you are viewing via the optic as you align the scope’s crosshair or reticle with the intended point of impact. The majority of modern-day rifle optics have about 11 parts which are found within and on the exterior of the scope. These parts consist of the rifle scope’s body, lenses, adjustment turrets, objective focus rings, and other components. See all eleven parts of a rifle scope.
Rifle Optic Varieties
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. The kind of focal plane a scope has decides where the reticle or crosshair lies in connection with the scopes zoom. It actually implies the reticle is located behind or in front of the magnifying lens of the optic. Picking the most reliable style of rifle optic is based upon what sort of hunting or shooting you intend on undertaking.
Info on First Focal Plane Glass
Focal plane scopes (FFP) feature the reticle in front of the magnifying lens. This causes the reticle to increase in size based on the level of magnification being used. The benefit is that the reticle measurements are the same at the enhanced range as they are at the non magnified distance. One tick on a mil-dot reticle at one hundred yards without “zoom” is still the exact same tick at 100 yards by using 5x “zoom”. These kinds of scopes work for:
- Quick acquisition, far away types of shooting
- Shooting situations where computations are very little
- Experienced shooters who recognize their aim point “hold over” and also “lead” ratios for their weapon
- Shooters who do not mind the reticle is enlarged and uses up more visual sight room than a SFP reticle
Info About Second Focal Plane Glass
Second focal plane optics (SFP) feature the reticle to the rear of the zoom lens. This induces the reticle to remain at the same dimensions in relation to the level of zoom being used. The effect is that the reticle measurements evolve based on the zoom chosen to shoot over lengthier ranges considering that the reticle markings present distinct increments which fluctuate with the magnification. In the FFP illustration with the SFP optic, the 5x “zoom” one hundred yard tick measurement would be 1/5th of the non “zoom” tick measurement. These particular varieties of optics work for:
- Long distance kinds of shooting where shooters have more time to make ballistic estimations
- Shooting where most shots occur within much shorter distances and ranges
- Shooters who select a clearer optic sight picture without room used up by the larger size FFP reticle
Glass Zoom
The amount of magnification a scope provides is determined by the size, thickness, and curvatures of the lenses inside of the rifle scope. The magnification of the scope is the “power” of the scope.
Fixed Single Power Lens Scopes
A single power rifle optic will have a magnification number designator like 4×32. This implies the magnification power of the scope is 4x power and the objective lens is 32mm. The zoom of this type of scope can not change given that it is a fixed power optic.
About Adjustable Power Lens Rifle Glass
Variable power rifle scopes have adjustable power. These types of scopes will list the zoom degree in a format such as 2-10×32. These numbers suggest the magnification of the scope can be changed between 2x and 10x power. This also involves the powers in-between 2 and 10. The power manipulation is accomplished by working with the power ring component of the scope near the rear of the scope by the eye bell piece.
Glass Power and Ranges
Here are some advised scope power settings and the distances where they can be effectively used. Bear in mind that higher power optics will not be as effective as lower magnification level glass due to the fact that increased zoom can be a negative thing in certain situations. The very same idea goes for extended distances where the shooter needs increased power to see where to properly aim the rifle at the target.
Rifle Optic Lens Covering
All modern-day rifle optic and scope lenses are coated. There are various types and qualities of glass coverings. When looking at luxury rifle scope setups, Lens coating can be a crucial component of defining the rifle’s capability. The glass lenses are one of the most significant parts of the optic due to the fact that they are what your eye sees through while sighting a rifle in on the point of impact. The finish on the lenses shields the lens surface and also assists with anti glare capabilities from refracted direct sunlight and color discernibility.
HD Versus ED Lenses
Some scope manufacturers also use “HD” or high-definition lens finishings which use various techniques, polarizations, chemicals, and elements to draw out various colors and viewable definition through the lens. Some scope makers use “HD” to refer to “ED” indicating extra-low dispersion glass.
Single Rifle Glass Lens Finish Versus Multi-Coating
Various optic lenses can likewise have various coverings applied to them. All lenses normally have at least some type of treatment or finish applied to them prior to being used in a rifle scope or optic.
Single coated lenses have a treatment applied to them which is generally a protective and enhancing multi-purpose treatment. This lens treatment can protect the lens from scratches while decreasing glare and other less beneficial things experienced in the shooting environment while sighting in with the scope. The quality of a single coated lens depends upon the scope producer and how much money you paid for it. The scope’s maker and cost are indicators of the lens quality.
Some scope makers likewise make it a point to define if their optic lenses are layered or “multi” coated. This suggests the lens has several treatments applied to the surfaces of the glass. If a lens receives numerous treatments, it can indicate that a company is taking several steps to combat various natural factors like an anti-glare finish, a scratch resistant anti-abrasion finishing, followed by a hydrophilic finish. This additionally does not always indicate the multi-coated lens will perform better than a single layered lens. Being “much better” hinges on the maker’s lens treatment innovation and the quality of glass used in creating the rifle glass.
Hydrophobic Finish for Rifle Optics
Water on an optical lens doesn’t improve maintaining a clear sight picture through a scope in any way. Many top of the line or premium optic manufacturers will coat their lenses with a hydrophilic or hydrophobic finish. The Steiner Optics Nano-Protection is a good example of this type of treatment. It deals with the surface of the Steiner optic lens so the water molecules can not bind to it or produce surface tension. The result is that the water beads roll off of the scope to keep a clear, water free sight picture.
Alternatives for Mounting Rifle Optics on Firearms
Installing approaches for scopes can be found in a few choices. There are the standard scope rings which are separately installed to the scope and one-piece scope mounts which cradle the scope. These different kinds of mounts also normally come in quick release versions which use manual levers which permit rifle operators to rapidly mount and remove the glass.
Hex Key Rifle Glass Rings
Standard, clamp type mounting optic rings use hex head screws to position to the flattop style Picatinny scope mounting rails on rifles. These styles of scope mounts use two separate rings to support the scope, and are made from 7075 T6 billet aluminum which are made for long distance precision shooting. This form of scope mount is excellent for rifles which require a durable, unfailing mount which will not move no matter how much the scope is moved about or abuse the rifle takes. These are the style of mounts you really want to have for a devoted optics system on a reach out and touch someone scouting or competitors firearm which will rarely need to be altered or recalibrated. Blue 242 Loctite threadlocker can additionally be used on the scope mount screws to protect against the hex screws from wiggling out after they are mounted firmly in place. An example of these rings are the 30mm style made by Vortex Optics. The set usually costs around $200 USD
Rifle Glass Mounts with Quick-Release Cantilever Rings
These types of quick-release rifle scope mounts can be used to rapidly detach a scope and connect it to a different rifle. Several scopes can also be switched out if they all use a compatible style mount. These types of mounts are handy for rifle platforms which are transferred a lot, to remove the optic from the rifle for protecting the scope, or for optics which are used in between multiple rifles or are situationally focused.
Sealing and Gas Purging for Scope Tubes
Wetness inside your rifle glass can destroy a day on the range and your pricey optic by triggering fogging and developing residue within the scope’s tube. Many scopes protect against humidity from entering the scope tube with a series of sealing O-rings which are water resistant. Typically, these water resistant optics can be immersed underneath 20 or 30 feet of water before the water pressure can push moisture past the O-rings. This should be sufficient moisture prevention for standard use rifles for hunting and sporting purposes, unless you intend on taking your rifle aboard a watercraft and are concerned about the scope still performing if it is submerged in water and you can still salvage the gun.
What to Know About Scope Tube Gas Purging
Another component of preventing the accumulation of moisture inside of the rifle scope tube is filling the tube with a gas like nitrogen. Given that this space is currently taken up by the gas, the scope is less influenced by condition changes and pressure differences from the external environment which might potentially allow water vapor to permeate in around the seals to fill the vacuum which would otherwise be there. These are good qualities of a decent rifle scope to seek out.
