Description
Rifle Scope Product Details

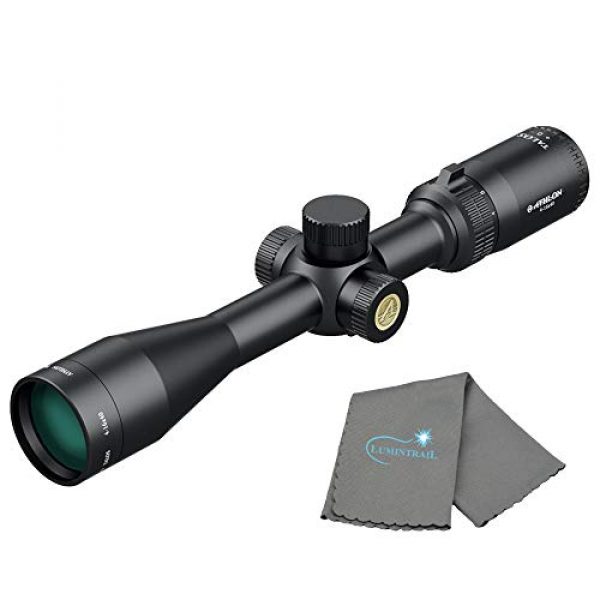

Athlon Optics Talos 4-16×40 Mildot Rifle Scope Second Focal Plane Bundle with a Lumintrail Cleaning Cloth

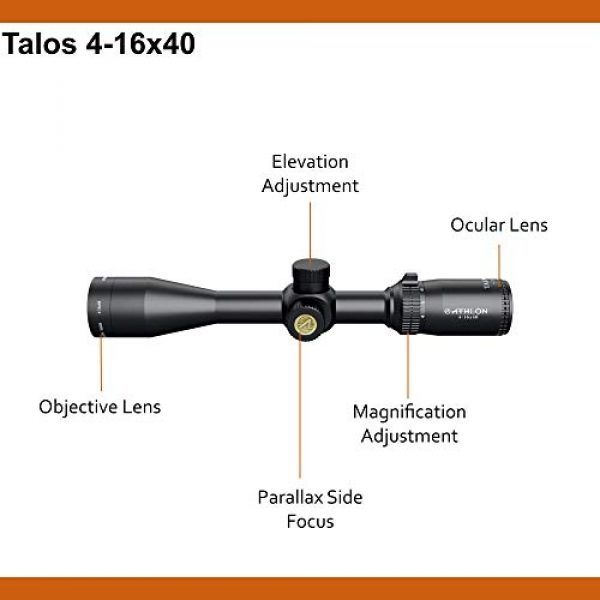

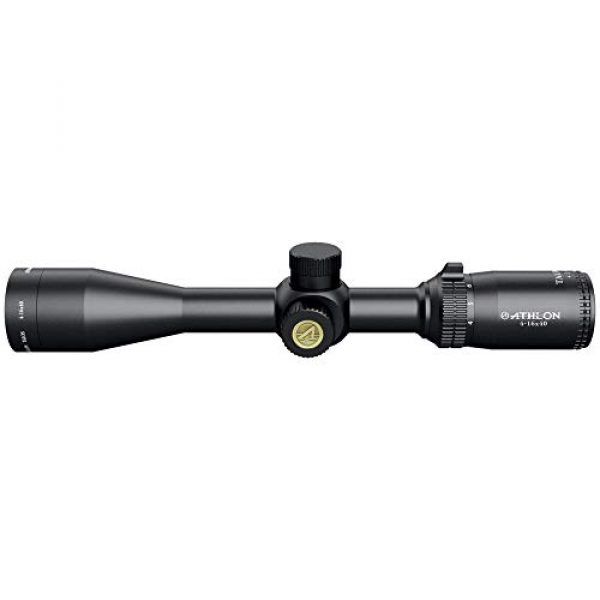

Athlon Optics Talos 4-16×40 Mildot
The Talos scope with Athlon Advanced multi-coated lenses for clarity and brightness in low light, you’ll be able to add precious minutes to every hunting day. These scopes, with their 4X magnification range, will give you great versatility.
Fully Multicoated optics effectively reduces reflected light and increases the transmission of light giving you a brighter image than normal single coated lenses
Aircraft Grade Aluminum provide extra strength and durability to handle the toughest terrain and offers lifetime of use.
Heat Treated One Piece Tube Construction gives the scope extra strength over multi-piece tubes. A one piece tube also is better at keeping moisture out thus keeping your scope fog proof for the life of the product
Waterproof to protect the scope in the harshest weather conditions or if accidentally submerged underwater
Fog proof to allow you to immediately engage your target when you take your rifle to cold ambient temperature from warm inside
Shockproof Robust mechanical system with special designs on both control and erector system that give you the ultimate recoil resistance to withstand 1000G recoil for 1000 times.
Nitrogen Purged dramatically reduces the moisture inside the tube and helps maintaining fogproof and waterproof.
Specs:
Magnification: 4-16
Objective Lens Diameter: 40 mm

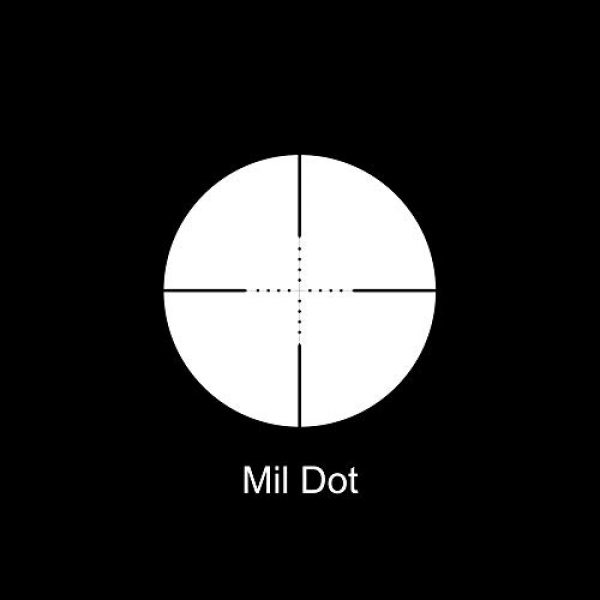

Reticle: Mildot
Surface Finish: Matte
Lens Coating: Wide Band Fully Multicoated
Tube Diameter: 1 inch
Exit Pupil: 9.5-2.5 mm
Eye Relief: 3.8 in – 3.35 in
Field of View @ 100 yards: 24.1-6.28 feet
Length: 12.9″
Weight: 19.1 oz
Rifle Scope Product Features
4-16x magnification, 1 inch tube with fully multicoated optics that reduce reflected light and increases transmission of light for brighter images
Heat treated one piece tube gives the scope extra strength is better at keeping moisture out thus keeping your scope fog proof for the life of the product
Nitrogen purged and Waterproof to protect the scope in the harshest weather conditions or if accidentally submerged underwater
Aircraft Grade Aluminum provide extra strength and durability to handle the toughest terrain and has ultimate recoil resistance to withstand 1000G recoil for 1000 times
Talos Scope is perfect for accurate holds, is 12.9″ in length, 40mm objective lens, and a Mildot Reticle making it a great optic for hunting
About the Athlon Company
Athlon is a premium maker for rifle scopes, optics, mounts, and other accessories used for guns like rifles and long guns. They style and manufacture their scopes, mounts, and related products by choosing materials which are long lasting and resilient. This includes the Athlon Optics Talos 4-16×40 Mildot Rifle Scope Second Focal Plane Bundle with a Lumintrail Cleaning Cloth by Athlon. For more shooting goods, visit their website.
What You Need to Know About Rifle Glass
Rifle scopes permit you to exactly align a rifle at different targets by lining up your eye with the target at range. They accomplish this through magnifying the target by utilizing a series of lenses inside the scope. The scope’s alignment can be dialed in for the consideration of varied ecological elements like wind and elevation to account for bullet drop.
The scope’s function is to help the shooter understand exactly where the bullet will hit based on the sight picture you are seeing using the optic as you align the scope’s crosshair or reticle with the intended target. Many modern-day rifle scopes have about eleven parts which are located within and outside of the scope. These parts include the rifle scope’s body, lenses, windage and elevation turrets or dials, objective focus rings, and other components. Learn about the eleven parts of rifle scopes.
Rifle Glass Varieties
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. Deciding on the perfect type of rifle glass depends on what type of shooting you plan on doing.
Info About First Focal Plane Glass
Focal plane scopes (FFP) feature the reticle in front of the zoom lens. This triggers the reticle to increase in size based upon the extent of zoom being used. The benefit is that the reticle measurements are the same at the amplified range as they are at the non amplified distance. One tick on a mil-dot reticle at 100 yards without “zoom” is still the exact same tick at one hundred yards by using 5x “zoom”. These kinds of scopes are valuable for:
- Quick acquisition, far away kinds of shooting
- Shooting situations where calculations are low
- Experienced shooters who recognize their target “hold over” as well as “lead” relationships for their long guns
- Shooters who don’t mind the reticle is enlarged and uses up more visual sight space than a SFP reticle
Second Focal Plane Glass
Second focal plane optics (SFP) come with the reticle behind the magnifying lens. This induces the reticle to stay at the same overall size in relation to the amount of magnification being used. The end result is that the reticle dimensions adjust based upon the magnification applied to shoot over lengthier distances because the reticle measurements present various increments which change with the zoom. In the FFP example with the SFP glass, the 5x “zoom” one hundred yard tick would be 1/5th of the non “zoom” tick reticle measurement. These kinds of optics work for:
- Long distance forms of shooting where shooters have extra time to make ballistic estimations
- Shooting where most shots occur within much shorter ranges and proximities
- Shooters who would like a clearer optic sight picture without space used up by the larger size FFP reticle
Details on Scope Magnification
The quantity of zoom a scope supplies is identified by the diameter, thickness, and curvatures of the lenses inside of the rifle scope. The zoom of the scope is the “power” of the scope.
Info on Fixed Single Power Lens Rifle Glass
A single power rifle scope will have a magnification number designator like 4×32. This means the magnification power of the scope is 4x power and the objective lens is 32mm. The magnification of this type of scope can not fluctuate because it is fixed.
Info on Variable Power Lens Rifle Scopes
Variable power rifle scopes use enhanced power. The power modification is accomplished by the power ring part of the scope near the rear of the scope by the eye bell.
Rifle Optic Power and Ranges
Here are some suggested scope power settings and the ranges where they could be successfully used. High power scopes will not be as beneficial as lower magnification level glass due to the fact that too much magnification can be a bad thing. The same concept applies to extended ranges where the shooter needs to have enough power to see exactly where to best aim the rifle.
Details on Rifle Scope Lens Coatings
All state-of-the-art rifle optic lenses are covered. Lens covering is an essential aspect of a rifle system when looking at high end rifle optics and scope equipment.
Details on Rifle Scope Lens Coatings – HD Versus ED
Some scope brands likewise use “HD” or high-definition lens coverings which use different techniques, polarizations, elements, and chemicals to draw out different colors and viewable definition through the lens. Some scope producers use “HD” to refer to “ED” to signify the lens has extra-low dispersion glass.
Single Coating Versus Multi-Coating
Different optic lenses can also have various coverings applied to them. All lenses generally have at least some type of treatment or finishing applied to them before being used in a rifle scope or optic.
Single covered lenses have a treatment applied to them which is generally a protective and boosting multi-purpose treatment. This lens treatment can protect the lens from scratches while reducing glare and other less advantageous things experienced in the shooting environment while sighting in with the optic. The quality of a single covered lens depends on the scope manufacturer and the amount you spent for it. Both are indicators of the lens quality.
Some scope manufacturers likewise make it a point to define if their optic lenses are coated or “multi” coated. This suggests the lens has had numerous treatments applied to the surfaces of the glass. If a lens receives multiple treatments, it can show that a company is taking several actions to combat different environmental elements like an anti-glare finish, a scratch resistant anti-abrasion covering, followed by a hydrophilic finish. This additionally doesn’t always imply the multi-coated lens will perform much better than a single layered lens. Being “much better” hinges on the producer’s lens treatment solutions and the quality of materials used in constructing the rifle glass.
Anti-water Lens Finishes
Water on a lens doesn’t assist with preserving a clear sight picture through a scope in any way. Lots of top of the line and high-end scope manufacturers will coat their lenses with a hydrophobic or hydrophilic coating. The Steiner Optics Nano-Protection is a fine example of this kind of treatment. It provides protection for the exterior of the Steiner scope lens so the water particles can not bind to it or create surface tension. The outcome is that the water beads roll off of the scope to keep a clear, water free sight picture.
Options for Installing Optics on Firearms
Installing approaches for scopes can be found in a couple of choices. There are the basic scope rings which are separately installed to the scope and one-piece mounts which cradle the scope. These various kinds of mounts also typically are made in quick release variations which use throw levers which allow rifle operators to quickly mount and dismount the scope.
Hex Key Scope Rings
Standard, clamp-on style mounting scope rings use hex head screws to position to the flattop style Picatinny scope mounting rails on rifles. These styles of scope mounts use double individual rings to support the scope, and are usually constructed from 7075 T6 billet aluminum which are manufactured for long distance accuracy shooting. This type of scope mount is effective for rifles which require a durable, hard use mount which will not shift no matter just how much the scope is moved about or abuse the rifle takes. These are the design of mounts you should have for a faithful optics system on a far away scouting or tournament rifle that will seldom need to be changed or recalibrated. Blue 242 Loctite threadlocker can additionally be used on the mount screws to stop the hex screw threads from wiggling out after they are installed safely in position. An example of these mounting rings are the 30mm type made by Vortex Optics. The set typically costs around $200 USD
Quick-Release Cantilever Glass Ring Mounting Solutions
These kinds of quick-release rifle scope mounts can be used to rapidly remove a scope from a rifle and reattach it to a different rifle. If they all use a comparable style mount, multiple scopes can often be switched out in the field. The quick detach mount style is CNC crafted from anodized 6061 T6 aluminum and the mounting levers attach solidly to a flat top style Picatinny rail. This enables the scope to be sighted in while on the rifle, removed from the rifle, and remounted back on the rifle while maintaining precision. These types of mounts come in convenient for shooting platforms which are carried a lot, to take off the glass from the rifle for protection, or for sight systems which are used in between several rifles. An example of this mount style is the 30mm mount designed by Vortex Optics. It normally costs around $250 USD
Sealing and Gas Purging for Scope Tubes
Moisture inside your rifle glass can destroy a day of shooting and your expensive optic by resulting in fogging and making residue inside of the scope’s tube. Many optics prevent humidity from getting in the scope tube with a system of sealing O-rings which are water resistant. Usually, these water-resistant scopes can be submerged under 20 or 30 feet of water before the water pressure can push moisture past the O-rings. This should be sufficient humidity avoidance for basic use rifles for hunting and sporting purposes, unless you anticipate taking your rifle on a boat and are worried about the optic still working if it is submerged in water and you can still retrieve the firearm.
Gas Purged Glass Tubes
Another element of avoiding the accumulation of wetness within the rifle optic tube is filling the tube with a gas like nitrogen. Considering that this space is already occupied by the gas, the glass is less altered by temperature shifts and pressure differences from the outside environment which could potentially enable water vapor to permeate in around the seals to fill the void which would otherwise exist. These are good qualities of a decent rifle scope to seek out.
