Description
Rifle Scope Product Details

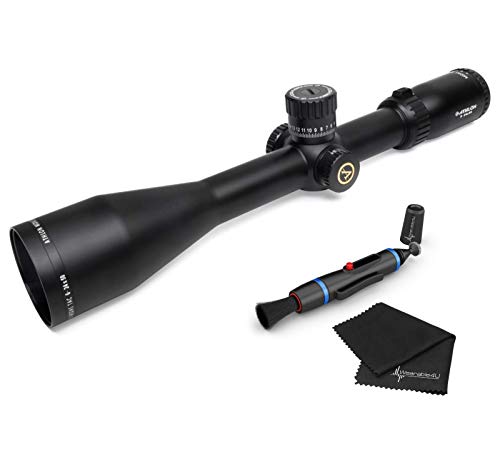

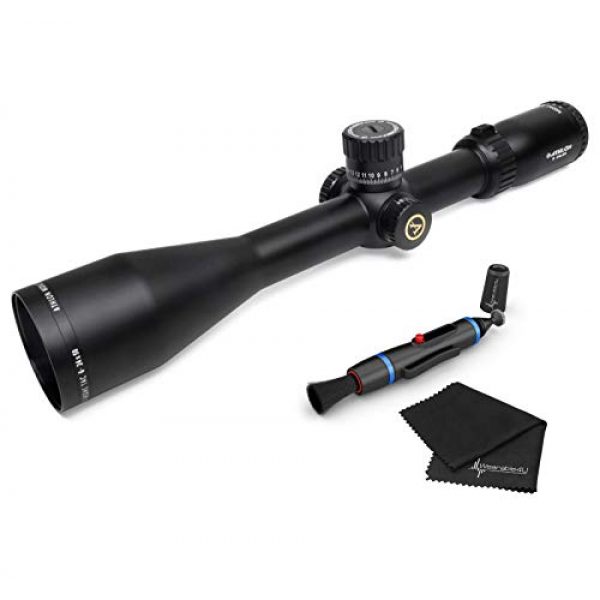

Athlon Optics Midas TAC Direct Dial Elevation and Capped Windage Turrets, Side Focus Riflescope with Included Wearable4U Lens Cleaning Pen and Lens Cleaning Cloth Bundle
Rifle Scope Product Features
IN THE BOX: 1 x Athlon Optics Midas TAC 5-25×56 FFP, APLR4- MOA Reticle, 1 x Allen Wrench, 1 x CR2032 Battery, 1 x Lens Cloth, 1 x Wearable4U Lens Cleaning Pen
0.25 MOA Click Value, 110 MOA Total Elevation Adjustment, 25 Yard to Infinity Parallax Adjustment

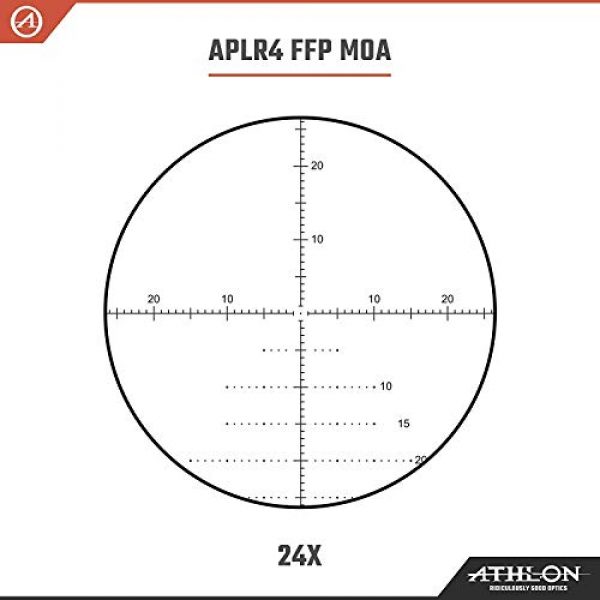

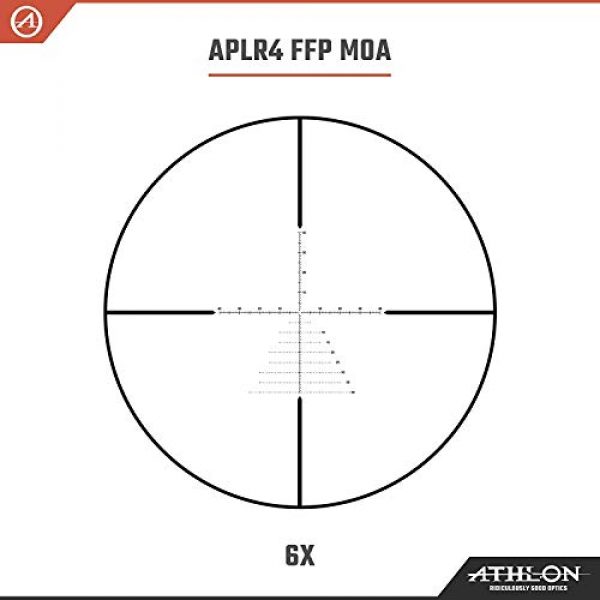

APLR4 FFP MOA reticle is a blend of precision marksman and long-range hunter. The open center design eliminates target obstruction by utilizing a .2 MOA diameter dot. 1 MOA hashmark increments provide fast holdovers up to 40 MOA, compensating for both windage and elevation.

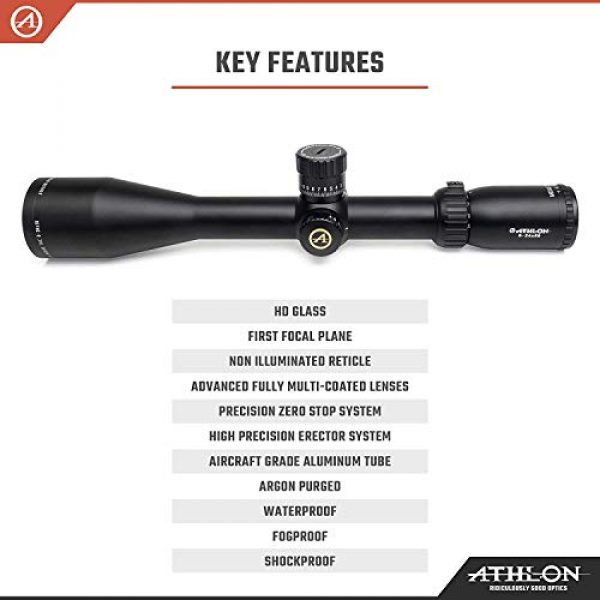

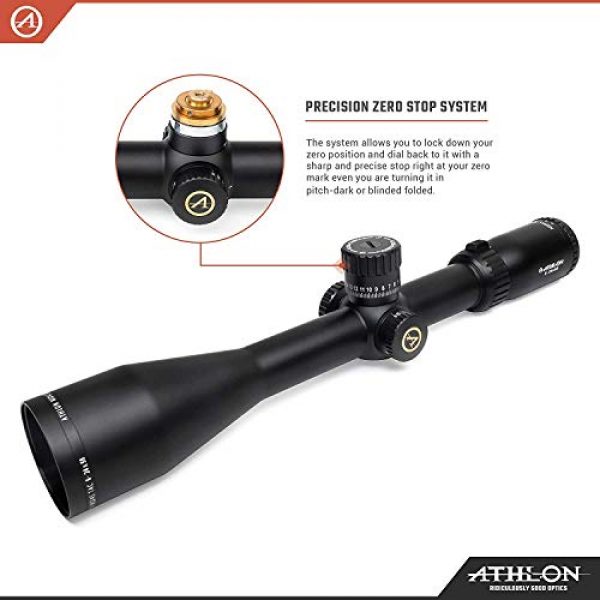

FEATURES HD Glass (better light transmission, brighter, and sharper image), non illuminated reticle (battery free), precision Zero Stop System, First focal plane reticle (stays valid at all power settings), Etched Glass Reticle (etched on the glass that provides excellent backing support for complex reticle design and offers great durability), Fully Multicoated optics (reduces reflected light and increases the transmission of light), XPL Coating (extra protection on the exterior lenses), etc.
WEARABLE4U LENS CLEANING PEN and Cleaning Cloth ” perfect set for removing fingerprints, dust, and other debris that may compromise your image
About the Wearable4U Company
Wearable4U is a premium manufacturer for long gun scopes, optics, mounting solutions, and other accessories used for firearms like rifles and long guns. They create and supply their scopes, mounts, and related products by applying materials which are durable and long lasting. This includes the Athlon Optics Midas TAC Direct Dial Elevation and Capped Windage Turrets, Side Focus Riflescope with Included Wearable4U Lens Cleaning Pen and Lens Cleaning Cloth Bundle by Wearable4U. For more shooting products, visit their site.
Scope Info
Rifle scopes permit you to specifically aim a rifle at various targets by lining up your eye with the target at range. They do this through zoom by employing a set of lenses inside the scope. The scope’s alignment can be dialed in for consideration of many environmental elements like wind and elevation decreases to account for bullet drop.

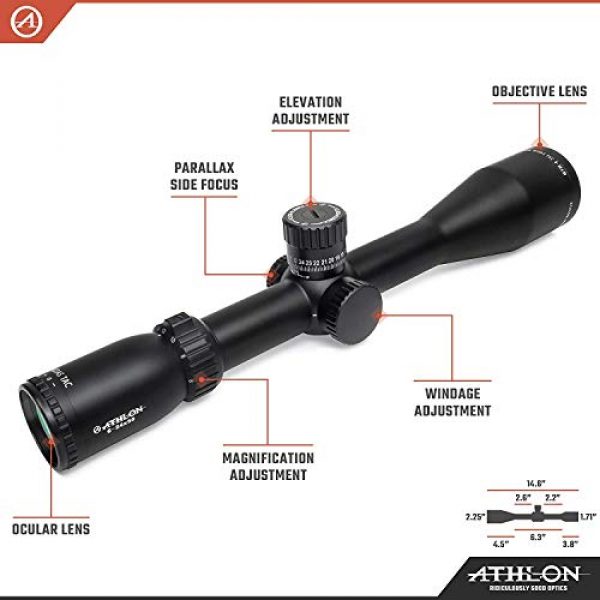

The scope’s function is to help the shooter understand precisely where the bullet will land based upon the sight picture you are viewing through the optic as you align the scope’s crosshair or reticle with the intended target. The majority of modern rifle scopes have around eleven parts which are located internally and outside of the scope. These scope parts consist of the rifle scope’s body, lenses, adjustment turrets or dials, focus rings, and other components. See all eleven parts of a scope.
Rifle Optic Styles
Rifle scopes can be either “first focal plane” or “second focal plane” type of optics. Going for the perfect type of rifle glass depends on what type of shooting you plan on doing.
About First Focal Plane Glass
Focal plane scopes (FFP) include the reticle in front of the zoom lens. These kinds of scopes are beneficial for:
- Quick acquisition, long distance kinds of shooting
- Shooting scenarios where computations are very little
- Experienced shooters who have an idea for their target “hold over” plus “lead” correlations for their firearm
- Shooters who don’t mind the reticle is bigger and uses up more visual eyesight room than a SFP reticle
About Second Focal Plane Scopes
Second focal plane scopes (SFP) come with the reticle behind the magnification lens. This causes the reticle to stay at the same scale relative to the amount of magnification being used. The effect is that the reticle measurements alter based on the magnification chosen to shoot over greater ranges since the reticle measurements present distinct increments which differ with the zoom. In the FFP illustration with the SFP optic, the 5x “zoom” one hundred yard tick reticle measurement would be 1/5th of the non “zoom” tick measurement. These particular sorts of scopes work for:
- Long distance styles of shooting where shooters have extra time to make ballistic estimations
- Shooting where most shots occur within much shorter ranges and proximities
- Shooters who select a clearer optic sight picture without space used up by the larger size FFP reticle
Magnification for Rifle Glass
The amount of scope magnification you need on your glass is based on the kind of shooting you want to do. Nearly every type of rifle optic supplies some level of zoom. The amount of zoom a scope provides is determined by the size, thickness, and curvatures of the lenses inside of the rifle optic. The magnification level of the optic is the “power” of the glass. This means what the shooter is observing through the scope is amplified times the power element of what can normally be seen by human eyes.
Single Power Lens Optics
A single power rifle optic or scope will have a zoom number designator like 4×32. This indicates the magnification power of the scope is 4x power while the objective lens is 32mm. The magnification of this type of optic can not adjust since it is a fixed power scope.
Adjustable Power Lens Optics
Variable power rifle scopes can be modified between magnified levels. The power change is performed by the power ring part of the scope near the rear of the scope by the eye bell.
Scope Power and Range Correlation
Here are some suggested scope power settings and the distances where they could be efficiently used. Always remember that higher magnification glass will not be as effective as lower magnification level scope and optics because too much zoom can be a bad thing. The same applies to extended ranges where the shooter needs to have increased power to see where to properly aim the rifle at the target.
Lens Coating for Scopes
All current rifle optic and scope lenses are coated. Lens finishing can be a significant aspect of a shooting platform when looking at high end rifle optics and scope setups.
HD Versus ED Lens Coatings
Some scope makers likewise use “HD” or high-definition lens finishes which use different methods, elements, chemicals, and polarizations to draw out different colors and viewable quality through the lens. Some scope producers use “HD” to refer to “ED” indicating extra-low dispersion glass.
Info on Single Finishing Versus Multi-Coating
Various optic lenses can likewise have various finishes applied to them. All lenses usually have at least some type of treatment or finishing used to them before being used in a rifle scope or optic.
Single coated lenses have a treatment applied to them which is typically a protective and boosting multi-purpose treatment. This lens treatment can safeguard the lens from scratches while decreasing glare and other less helpful things experienced in the shooting environment while sighting in with the scope. The quality of a single covered lens depends upon the scope company and just how much you paid for it. Both the manufacturer and amount are indications of the lens quality.
Some scope manufacturers also make it a point to specify if their optic lenses are layered or “multi” coated. This indicates the lens has numerous treatments applied to the surfaces of the glass. If a lens gets several treatments, it can establish that a company is taking multiple actions to combat different environmental aspects like an anti-glare coating, a scratch resistant anti-abrasion coating, followed by a hydrophilic finishing. This additionally does not always imply the multi-coated lens will perform much better than a single layered lens. Being “much better” hinges on the maker’s lens treatment innovation and the quality of glass used in creating the rifle glass.
Anti-water Finish for Rifle Glass
Water on a lens does not help with preserving a clear sight picture through a scope at all. Many top of the line and military grade optic makers will coat their lenses with a hydrophilic or hydrophobic finishing.
Options for Installing Glass on Long Guns
Installing options for scopes are available in a few options. There are the standard scope rings which are individually mounted to the scope and one-piece scope mounts which cradle the scope. These various types of mounts also usually come in quick release versions which use toss levers which allow rifle operators to rapidly mount and remove the scopes.
Rifle Optic Mounts with Hex Key Rings
Standard, clamp-on style mounting scope rings use hex head screws to mount to the flattop design Picatinny scope mounting rails on the tops of rifles. These kinds of scope mounts use a pair of independent rings to support the scope, and are made from 7075 T6 billet aluminum which are created for far away accuracy shooting. This form of scope mount is good for rifle systems which need to have a resilient, rock solid mount which will not change regardless of how much the scope is moved about or jarring the rifle takes. These are the design of mounts you want for a specialized scope setup on a long distance scouting or interdiction long gun that will hardly ever need to be altered or adjusted. Blue 242 Loctite threadlocker can additionally be used on the scope mount screws to keep the hex screws from wiggling out after they are installed safely in place. An example of these mounting rings are the 30mm style from the Vortex Optics brand. The set normally costs around $200 USD
Quick-Release Cantilever Rifle Scope Rings
These types of quick-release rifle scope mounts can be used to quickly attach and detach a scope from a rifle. If they all use a comparable design mount, a number of scopes can often be switched out on the range. The quick detach mount style is CNC crafted from anodized 6061 T6 aluminum and the mounting levers attach solidly to a flat top style Picatinny rail. This permits the scope to be sighted in while on the rifle, taken off of the rifle, and remounted while retaining accuracy. These kinds of mounts are useful and convenient for shooting platforms which are moved around a lot, to take off the scope glass from the rifle for protection, or for scopes which are utilized between multiple rifles. An example of this mount type is the 30mm mount from Vortex Optics. It normally costs around $250 USD
Rifle Optic Tube Sealing and Gas Purging
Moisture inside your rifle glass can destroy a day on the range and your pricey optic by triggering fogging and producing residue within the scope’s tube. Many scopes prevent humidity from going into the scope tube with a system of sealing O-rings which are water resistant. Normally, these water-resistant scopes can be submerged underneath 20 or 30 feet of water before the water pressure can push moisture past the O-rings. This should be plenty of wetness avoidance for standard use rifles for hunting and sporting purposes, unless you intend on taking your rifle on a boat and are concerned about the optic still functioning if it goes overboard and you can still recover the rifle.
Gas Purged Rifle Scope Tubes
Another part of avoiding the buildup of wetness within the rifle scope’s tube is filling the tube with a gas like nitrogen. Considering that this area is currently taken up by the gas, the optic is less impacted by temperature shifts and pressure distinctions from the outside environment which could potentially permit water vapor to seep in around the seals to fill the vacuum which would otherwise exist. These are good qualities of a good rifle scope to seek out.
