Description
Rifle Scope Product Details

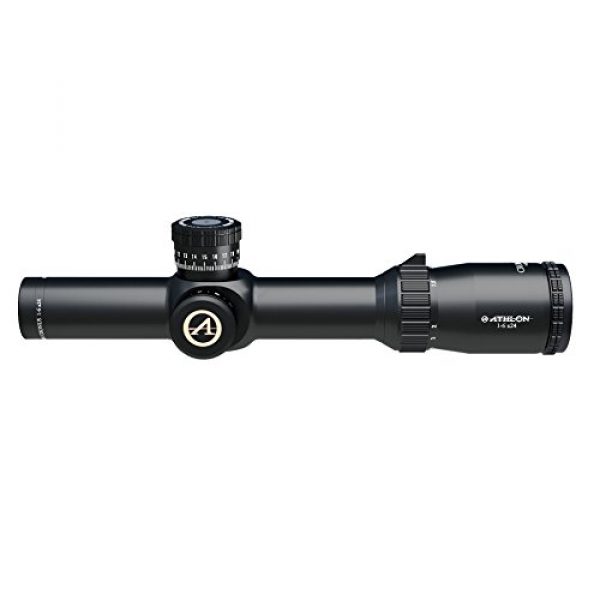

Athlon Optics , Cronus , Riflescope , 1-6 x 24 First Focal Plane (FFP) 30 mm Tube, Illuminated ATSR16 MIL Retical ,
Specifications Magnification 1-6 Objective Lens Diameter 24 mm Reticle ATSR16 FFP IR MIL, Glass Etched Surface Finish Matte Lens Coating Advanced Fully Multicoated Extra Coating Xtra Protective Coating Tube Material 6061 Aluminium Tube Diameter 30 mm Exit Pupil 10.3-3.9 mm Eye Relief 3.9″ Field of View @100 yards 95-16 ft Click Value 0.2 MIL Adjustment range per rotation 20 MIL Total Elevation Adjustment 50 MIL Total Windage Adjustment 50 MIL Turret Style Exposed Direct Dial Parallax Adjustment Fixed at 100 yards Purging Material Argon Length 10.4″ Weight 20 oz
Rifle Scope Product Features
Hd Glass gives you the utmost contrast, light transmission, and the sharpest image
First focal plane reticle stays valid at all power settings allowing you to fully utilize the Specially designed reticle that shrinks or grows along with your target as you zoom in or out
Advanced fully multi-coated lenses gives you better light transmission to bring optimum brightness and true color across the entire light Spectrum
Reticle etched on the Glass that provides excellent backing support for complex reticle design and offers great durability and much higher shock resistance to Recoil
Argon purging gives you better waterproofing and thermal stability
About the Athlon Optics Company
Athlon Optics is a premium producer for long gun scopes, optics, mounts, and other components used for guns like rifles and long guns. They innovate and manufacture their mounts, scopes, and related products by choosing building materials which are long lasting and durable. This includes the Athlon Optics , Cronus , Riflescope , 1-6 x 24 First Focal Plane (FFP) 30 mm Tube, Illuminated ATSR16 MIL Retical , by Athlon Optics. For more shooting goods, visit their website.
Rifle Glass Details
Rifle scopes enable you to specifically aim a rifle at different targets by lining up your eye with the target over a distance. They do this through zoom by employing a set of lenses inside the scope. The scope’s alignment can be dialed in to account for numerous natural elements like wind and elevation increases to make up for bullet drop.
The scope’s purpose is to help shooters understand exactly where the bullet will land based on the sight picture you are viewing using the optic as you line up the scope’s crosshair or reticle with the intended point of impact. A lot of modern-day rifle optics have about 11 parts which are found within and on the exterior of the optic. These scope parts consist of the rifle scope’s body, lenses, windage and elevation dials, objective focus rings, and other parts. Learn about the eleven parts of rifle scopes.
Rifle Glass Varieties
Rifle scopes can be either “first focal plane” or “second focal plane” type of optics. Choosing the finest type of rifle optic depends on what type of shooting you plan to do.
First Focal Plane Glass
First focal plane glass (FFP) come with the reticle before the magnifying lens. This causes the reticle to increase in size based upon the level of magnification being used. The benefit is that the reticle measurements are the same at the amplified distance as they are at the non magnified distance. For example, one tick on a mil-dot reticle at 100 yards without any “zoom” is still the corresponding tick at one hundred yards with 5x “zoom”. These kinds of scopes are useful for:
- Quick acquisition, far away types of shooting
- Shooting scenarios where estimations are very little
- Experienced shooters who understand their target “hold over” and also “lead” ratios for their firearms
- Shooters who don’t mind the reticle is enlarged and takes up more visual sight space than a SFP reticle
Info on Second Focal Plane Optics
Second focal plane scopes (SFP) come with the reticle to the rear of the magnification lens. In the FFP example with the SFP scope, the 5x “zoom” 100 yard tick reticle measurement would be 1/5th of the non “zoom” tick.
- Far away styles of shooting where shooters have more time to make ballistic calculations
- Shooting where most shots happen within much shorter ranges and distances
- Shooters who select a clearer optic picture with less space used up by the larger sized FFP reticle
Scope Zoom
The amount of magnification a scope supplies is figured out by the size, density, and curvatures of the lenses inside of the rifle scope. The magnification of the scope is the “power” of the scope.
Fixed Power Lens Glass Facts
A single power rifle optic and scope comes with a zoom number designator like 4×32. This indicates the zoom power of the scope is 4x power and the objective lens is 32mm. The magnification of this kind of optic can not change considering that it is a fixed power scope.
Adjustable Power Lens Rifle Glass Details
Variable power rifle scopes can be changed between magnification levels. These types of scopes will note the zoom level in a configuration like 2-10×32. These numbers imply the magnification of the scope can be adjusted in between 2x and 10x power. This additionally includes the power levels in-between 2 and 10. The power manipulation is accomplished by working with the power ring component of the scope near the rear of the scope by the eye bell.
The Power Level and Range of Rifle Scopes
Here are some suggested scope power settings and the distances where they can be efficiently used. High power rifle scope glass will not be as effective as lower magnification glass due to the fact that too much zoom can be a bad thing. The exact same concept relates to longer ranges where the shooter needs increased power to see exactly where to properly aim the rifle.
Details on Scope Lens Coating
All contemporary rifle optic and scope lenses are coated. There are different types and qualities of glass lens coverings. When shopping for luxury rifle targeting devices, Lens covering can be a vital aspect of defining the rifle’s capability. The glass lenses are one of the most key components of the scope considering they are what your eye looks through while sighting a rifle in on the target. The finishing on the lenses shields the lens surface area and even helps with anti glare capabilities from refracted light and color discernibility.
ED Versus HD Optics
Some rifle scope manufacturers also use “HD” or high-definition glass finishings which apply various processes, chemicals, components, and polarizations to extract different colors and viewable definition through the lens. This high-def covering is normally used with increased density lens glass which drops light’s chance to refract by means of the lens glass. Some scope corporations use “HD” to describe “ED” suggesting extra-low dispersion glass. ED deals with how colors are presented on the chroma spectrum and the chromatic aberration or difference which is similarly called color distortion or fringing. Chromatic aberration can be noticeable over objects with hard edges and shapes as light hits the item from certain angles.
Info on Single Covering Versus Multi-Coating
Different optic lenses can also have various coverings applied to them. All lenses normally have at least some type of treatment or covering used to them before they are used in a rifle scope or optic.
Single covered lenses have a treatment applied to them which is normally a protective and boosting multi-purpose treatment. This lens treatment can protect the lens from scratches while reducing glare and other less useful things experienced in the shooting environment while sighting in with the optic. The quality of a single coated lens depends on the scope developer and just how much you spent on it. Both are indications of the lens quality.
Some scope manufacturers likewise make it a point to define if their optic lenses are covered or “multi” covered. This suggests the lens has had multiple treatments applied to them. If a lens gets several treatments, it can show that a company is taking numerous steps to combat various natural aspects like an anti-glare coating, a scratch resistant anti-abrasion finishing, followed by a hydrophilic coating. This also doesn’t always suggest the multi-coated lens will perform better than a single layered lens. Being “better” depends on the manufacturer’s lens treatment techniques and the quality of materials used in building the rifle scope.
Hydrophobic Scope Lens Finish
Water on a scope lens does not help with keeping a clear sight picture through a scope at all. Numerous top of the line or premium optic makers will coat their lenses with a hydrophilic or hydrophobic finish. The Steiner Optics Nano-Protection is a good example of this sort of treatment. It deals with the exterior of the Steiner optic lens so the water molecules can not bind to it or create surface tension. The outcome is that the water beads roll off of the scope to keep a clear, water free sight picture.
Choices for Installing Rifle Glass on Firearms
Mounting options for scopes are available in a couple of choices. There are the standard scope rings which are individually mounted to the optic and one-piece scope mounts which cradle the scope. These various types of mounts also usually come in quick release variations which use manual levers which permit rifle shooters to rapidly install and remove the scopes.
Glass Mounts with Hex Key Rings
Standard, clamp design mounting scope rings use hex head screws to mount to the flattop design Picatinny scope installation rails on rifles. These types of scope mounts use a couple of different rings to support the optic, and are often made from 7075 T6 billet aluminum which are designed for long range accuracy shooting. This type of scope mount is wonderful for rifles which need a long lasting, sound mounting solution which will not move no matter how much the scope is moved or abuse the rifle takes.
Quick-Release Cantilever Glass Ring Mounting Solutions
These types of quick-release rifle scope mounts can be used to quickly take off a scope from a rifle and reattach it to a different rifle. If they all use a similar design mount, a number of scopes can also be swapped in the field. The quick detach design is CNC crafted from anodized 6061 T6 aluminum and the mounting levers attach tightly to a flat top type Picatinny rail. This enables the scope to be sighted in while on the rifle, taken off of the rifle, and remounted while maintaining the original sighting settings. These kinds of mounts come in convenient for rifles which are moved a lot, to take off the scope from the rifle for protection, or for sight systems which are adopted in between multiple rifles. An example of this mount style is the 30mm mount from Vortex Optics. It normally costs around $250 USD
Glass Tube Sealing and Gas Purging
Wetness inside your rifle optic can mess up a day of shooting and your pricey optic by bringing about fogging and creating residue inside of the scope tube. The majority of scopes avoid moisture from getting in the scope tube with a system of sealing O-rings which are water resistant.
Gas Purged Rifle Glass Tubes
Another part of avoiding the buildup of wetness within the rifle optic tube is filling the tube with a gas like nitrogen. Given that this space is currently occupied by the gas, the scope is less influenced by temperature changes and pressure distinctions from the outdoor environment which may possibly allow water vapor to leak in around the seals to fill the vacuum which would otherwise exist. These are good qualities of a good rifle scope to seek out.
