Description
Athlon Optics , Argos BTR , Riflescope , 8-34 x 56 First Focal Plane (FFP) 30 mm Tube, Illuminated APMR MIL Reticle ,
Specification Magnification 8-34 Objective Lens Diameter 56 mm Reticle APMR FFP IR MIL, Glass Etched Surface Finish Matte Lens Coating Wide Band Fully Multicoated Extra Coating Xtra Protective Coating Tube Material 6061 Aluminium Tube Diameter 30 mm Exit Pupil 7-1.7 mm Eye Relief 3.3 inches Field of View @100 yards 12.5-3 feet Click Value 0.1MIL Adjustment range per rotation 5MIL Total Elevation Adjustment 13 MIL Total Windage Adjustment 13 MIL Turret Style Exposed Parallax Adjustment Side Focus ” 15 yards to infinity Purging Material Argon Length 15.5 inches Weight 32.2 ounces
Rifle Scope Product Features:
About this item
First focal plane reticle stays valid at all power settings allowing you to fully utilize the specially designed reticle that shrinks or grows along with your target as you zoom in or out.
Advanced Fully Multi-Coated lenses gives you better light transmission to bring optimum brightness and true color across the entire light spectrum.
Reticle etched on the glass that provides excellent backing support for complex reticle design and offers great durability and much higher shock resistance to recoil
The 6061T6 aircraft grade aluminum tube that has exceptional strength and superior mechanical integrity will protect these world class optics no matter what punishment you throw at it
Argon purging gives you better waterproofing and thermal stability.Water Resistance Level:IPX-7
Athlon Optics , Argos BTR, Riflescope
Argos BTR family of scopes have features normally only found on high-end scopes. It has a 4x magnification that makes it versatile in multiple shooting disciplines. It has our Advanced Fully-Multi Coated Optics that delivers a crystal clear bright image in in dark environments. The Argos BTR also has our exclusive XPL coating that protects your lenses from dirt, grease and harsh weather conditions. The 6061T6 aircraft grade aluminum tube will protect these optics no matter what punishment you throw at it.
This along with the variety of first focal plane (FFP) reticles give you easy elevation and windage adjustments.
Side Parallax Adjustment to give you the ability to adjust to any ranged right at your fingertips.
Features
First Focal Plane Reticle- allows you to fully utilize specially designed reticles that shrink or grow along with your target as you zoom in or out. These reticles offer quick target engagement at low power while offering precise holdover positions with finer details.
Illuminated Reticle provides greater visibility during dusk and dawn and other low ambient light environment.
Etched Glass Reticle – etched on the glass that provides excellent backing support for complex reticle design and offers great durability and much higher shock resistance to recoil.
Fully Multicoated – effectively reduces reflected light and increases the transmission of light giving you a brighter image than normal single coated lenses.
6061 T6 Aluminum- has exceptional strength and superior mechanical integrity will protect these world class optics
Heat Treated One Piece Tube Construction- gives the scope extra strength over multi-piece tubes and better at keeping moisture out thus keeping your scope fog proof for the life of the product.
Waterproof – protect the scope in the harshest weather conditions or if accidentally submerged underwater.
Shockproof-Robust mechanical system that give you the ultimate recoil resistance
Argon Purged – uses the inertia gas with bigger size molecules to purge any moisture out of the tube giving you better waterproofing and thermal stability .
Reticles
AHSR14 FFP IR MIL
The AHSR 14 FFP IR MIL reticle is perfect for short and mid range shooting with an illuminated 16 mil diameter circle, 1 mil center cross (0.5 mil from center to each side) and cross lines with 1mil hash mark increments extended to 8 mils on both horizontal and vertical directions. The reticle at one magnification becomes a red dot circle that can be used effectively for short range target, while at 4 magnification it offers enough details with 1 mil hash mark that help shooters quickly spot their target and set holdover positions.
Application: Short and Mid Range Shooting for both Tactical and Hunting
BLR SFP MOA
BLR SFP MOA reticle has a floating center dot and 1 moa increment hash marks, which help you quickly lock in your target and set holdover positions.
Application: Precision Mid Range Shooting for both Tactical and Hunting
ATMR FFP IR MOA
It has a large illuminated center and 2 moa hash mark increments, which help you quickly lock in your target and set holdover positions. The illuminated reticle provides excellent low light visibility and accurate elevation holdovers all the way up to 40 moa with 2 moa markings incremental.
Application: Precision Mid Range Shooting for both Tactical and Hunting
Reticles

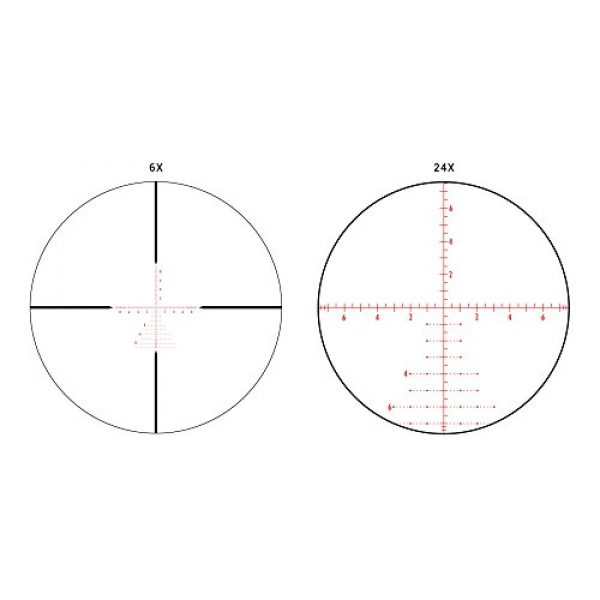

APMR FFP IR MIL
Designed for precision long and mid-distance shooting with illuminated center cross and 0.5 mil hash mark increments , APMR FFP IR MIL reticle can help you quickly lock in your target and set holdover positions and leads for a moving target.
Application: Precision Mid Range Shooting for both Tactical and Hunting
ATMR FFP IR MOA
It has a large illuminated center and 2 moa hash mark increments, which help you quickly lock in your target and set holdover positions. The illuminated reticle provides excellent low light visibility and accurate elevation holdovers all the way up to 40 moa with 2 moa markings incremental.
Application: Precision Mid Range Shooting for both Tactical and Hunting
APMR FFP IR MIL
Designed for precision long and mid-distance shooting with illuminated center cross and 0.5 mil hash mark increments , APMR FFP IR MIL reticle can help you quickly lock in your target and set holdover positions and leads for a moving target.
Application: Precision Mid Range Shooting for both Tactical and Hunting
8- 34 x 56 FFP 1 – 4 x 24 FFP 6 – 24 x 50 FFP 10 – 40 x 56 SFP
Power x Objective lens 8- 34 x 56 FFP 1 – 4 x 24 FFP 6 – 24 x 50 FFP 10 – 40 x 56 SFP
Turret Style Exposed Exposed Exposed Exposed
Tube Size 30mm 30 mm 30 mm 30 mm
Eye Relief 3.3” 3.5″ 3.3″ 3″
FOV @1000 Yards 12.5 – 3 ft 112 – 27 ft 16.7-4.5 ft 12.6 – 3.1 ft
Click Value 0.25 MOA 0.5 MOA 0.25 MOA 0.125 MOA
Reticle ATMP FFP IR MOA / APMR FFP IR MIL AHSR14 FFP IR MOA / AHSR14 FFP IR MIL ATMP FFP IR MOA / APMR FFP IR MIL BLR SFP MOA
