Rifle Scope Product Details

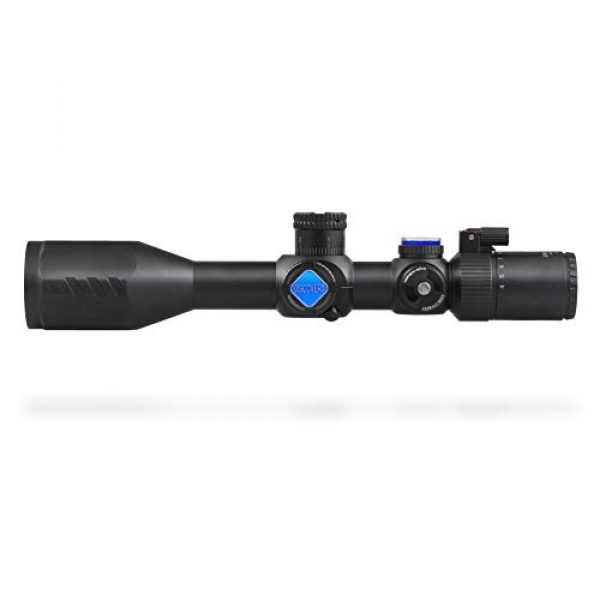

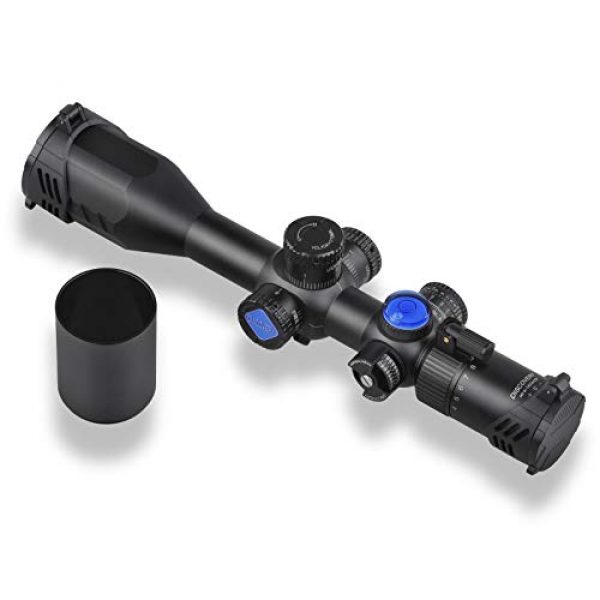

ApexHorizon HI 4-14X44 SF FFP Rifle Scope,Sniper Hunting Optics Crosshair Gun Scopes

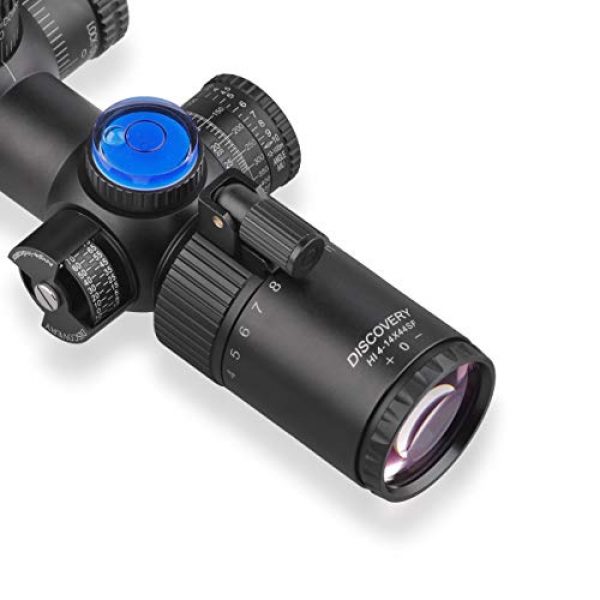

DISCOVERY HI line is designed as multifunctional scope equipped with bubble level, angle indicator, and unique rangefinder system. This line owns two patents including light switch view system and rangefinder system which provide more convenience to use.
Specification:
Magnification: 4-14X
Objective Dia.: 44mm
Tube Diameter 30mm(1.1inch)
Lengh: 330mm(13inch)
Weight: 750g(26.45oz)

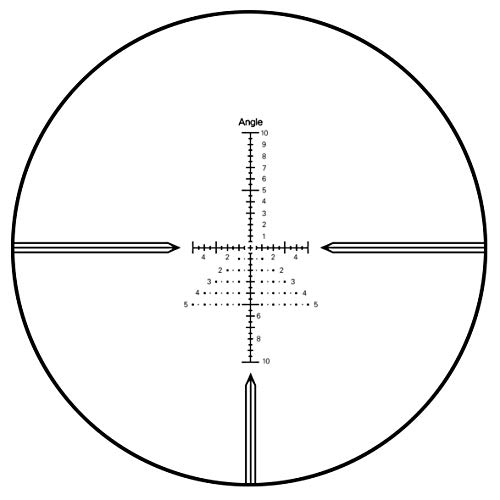

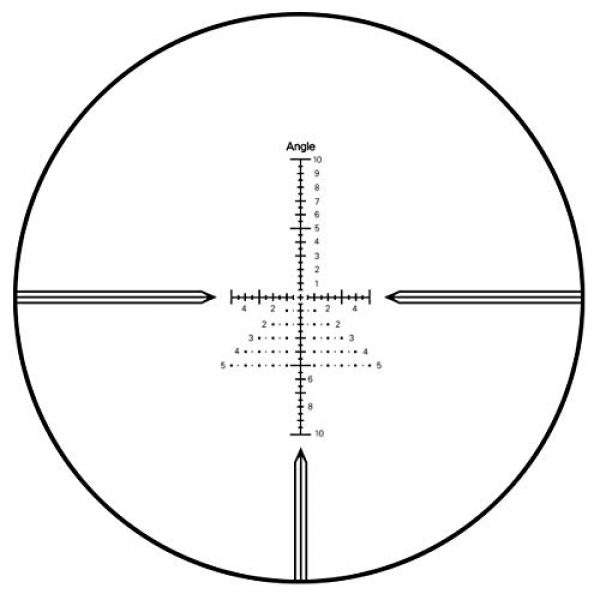

ReticleSRF FFP IR-MIL
Focal Plane: First Focal Plane
True Mil at: Every Position
Illumination: NO
Adjust Focus: Side Parallax
Side Parallax Adjustment (Yds)10Yds-Infinity
Field Of View@100yards(ft): 26.1-7.8
Eye Relief:3.5in-4.1in(88mm-105mm)
Zero Reset: YES
Zero Stop: NO
Revolution Indicator: NO
Zero Lock: YES(Lock=Down)
Click Adjustment Value:: 1/10MIL
Adjustment Per Revoultion6MIL
Elevation Adj. Range: 16MIL
Windage Adj. Range: 16MIL
Coating: Full Multi-green Coated
Nitrogen Filled: Yes Optics
Shock Proof: Yes
Water Proof: Yes
Fog Proof: Yes
Why choose ApexHorizon(DISCOVERY)
We are the most professional company to sell rifle scope all over the world in China. we are designed& produced riflescope for more than 10 years so we know the product well.
We will provide free quality control for our product before shipment.
I am not just a business man but a hunter, an air pressure enthusiast, so I know what type of product you usually need.
Because of our professional work, you always get far from the juck fake product …So, choose us and give me a chance to be satisfied. Thanks for reading, if you like hunting or shooting, it will be my pleasure to chat with you about our hobby.
Our scopes are sold worldwide
Rifle Scope Product Features
First focal plane reticle made a huge difference in hunting and target shooting,you do not need worry about the effect from the multi-power anymore with a FFP scope.

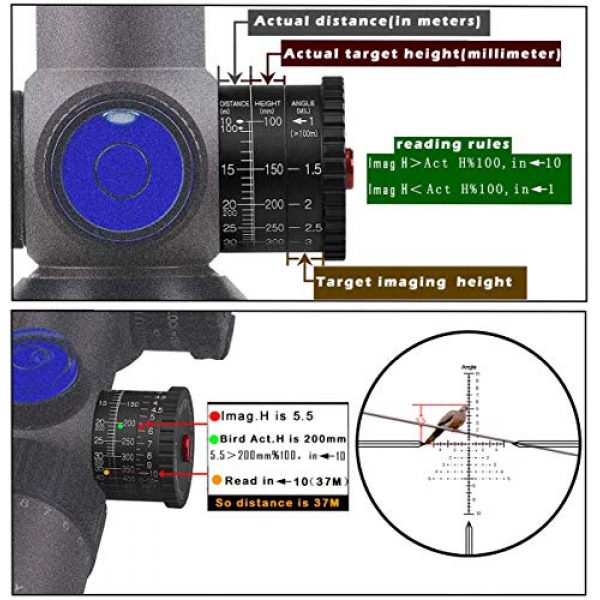

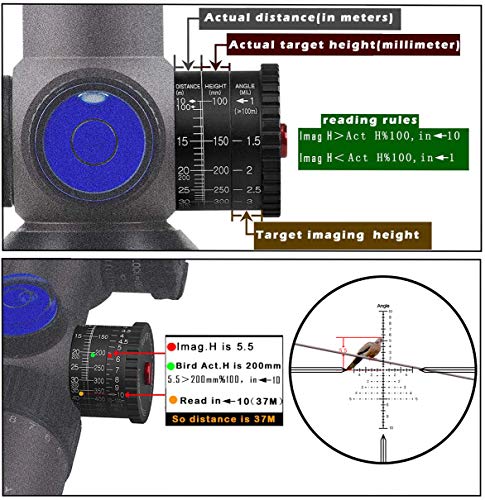

SRF MIL range finder system makes it so simple to use MIL for rang find,the greatest revolution of this system is no calculation anymore for MIL range finding.
OF(Objective Fixed) military using system make it can be trusted with most calibers and even ,50 cal, Rated,Solid machined torus erecton support make it high recoil proof and very stable for years using.

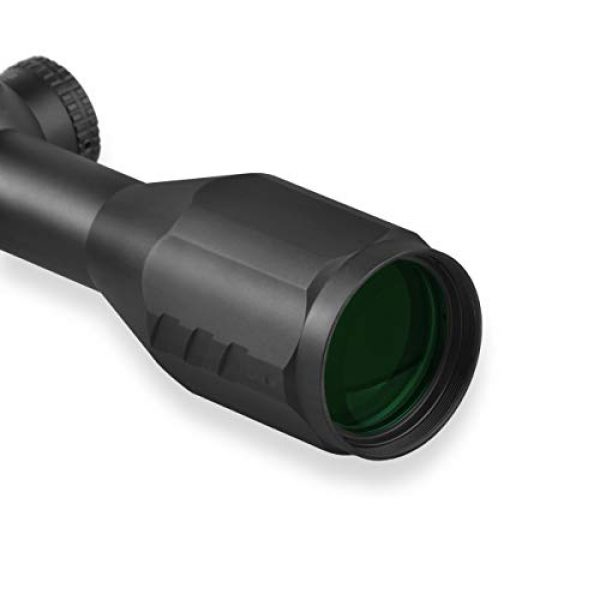

Lanthanum glasses with Multi-Coated optics provides a better optical performance than other similar scopes,side focus from 10yards let you be able to shoot from very close distance to a long distance.

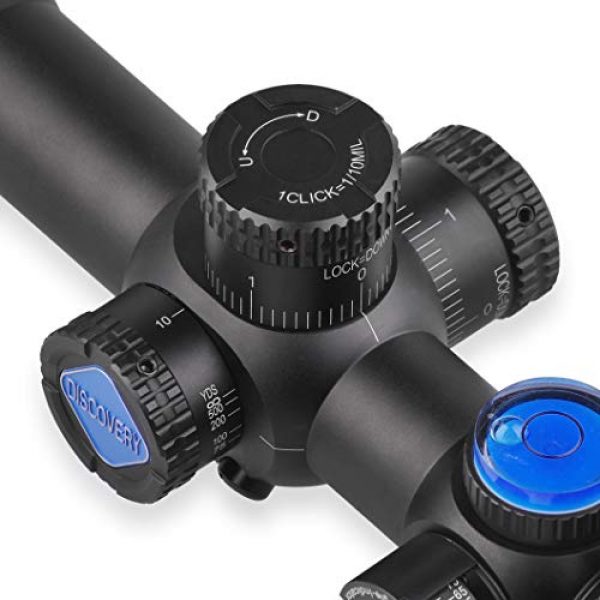

1/10 MIL Push-Zero Lock turrets is iust suit with MIL reticle which make it easier to zero your scope and lock the zero.
About the ApexHorizon Manufacturer
ApexHorizon is a premium company for rifle scopes, optics, mounts, and other add-ons used for firearms like rifles and long guns. They style and supply their mounts, scopes, and related products by choosing elements which are long lasting and durable. This includes the ApexHorizon HI 4-14X44 SF FFP Rifle Scope,Sniper Hunting Optics Crosshair Gun Scopes by ApexHorizon. For more shooting goods, visit their website.
What You Need to Know About Glass
Rifle scopes enable you to specifically aim a rifle at different targets by lining up your eye with the target at range. They do this through zoom by using a set of lenses within the scope. The scope’s alignment can be adapted for consideration of separate environmental factors like wind and elevation increases or decreases to make up for bullet drop.
The scope’s purpose is to help shooters understand precisely where the bullet will hit based on the sight picture you are viewing via the scope as you line up the scope’s crosshair or reticle with the intended point of impact. A lot of contemporary rifle scopes have around 11 parts which are found within and externally on the scope body. These scope parts include the rifle scope’s body, lenses, elevation dials or turrets, focus rings, and other parts. Learn about the eleven parts of rifle glass.
The Styles of Rifle Scopes
Rifle scopes can be either “first focal plane” or “second focal plane” type of optics. Selecting the optimal type of rifle glass depends on what type of shooting you plan to do.
First Focal Plane Glass Details
First focal plane scopes (FFP) include the reticle in front of the magnifying lens. This induces the reticle to increase in size based upon the extent of zoom being used. The outcome is that the reticle measurements are the same at the amplified range as they are at the non magnified range. For example, one tick on a mil-dot reticle at one hundred yards without having “zoom” is still the very same tick at one hundred yards using 5x “zoom”. These types of scopes work for:
- Quick acquisition, far away kinds of shooting
- Shooting circumstances where estimations are minor
- Experienced shooters who understand their target “hold over” and also “lead” correlations for their firearm
- Shooters who do not mind the reticle is bigger and takes up more visual sight area than a SFP reticle
Second Focal Plane Glass
Second focal plane scopes (SFP) feature the reticle to the rear of the magnification lens. In the FFP example with the SFP scope, the 5x “zoom” 100 yard tick measurement would be 1/5th of the non “zoom” tick measurement.
- Far away styles of shooting where shooters have extra time to make ballistic computations
- Shooting where most of the shots occur within shorter ranges and spaces
- Shooters who choose a clearer optic picture without area used up by the bigger FFP reticle
Magnification for Glass
The extent of scope zoom you need on your optic depends on the kind of shooting you intend to do. Just about every style of rifle glass provides some degree of zoom. The amount of zoom a scope offers is established by the dimension, density, and curvatures of the lenses inside of the rifle optic. The magnification level of the scope is the “power” of the opic. This denotes what the shooter is aiming at through the scope is amplified times the power aspect of what can typically be seen by human eyes.
Info About Fixed Power Lens Rifle Scopes
A single power rifle optic uses a magnification number designator like 4×32. This means the magnification power of the scope is 4x power while the objective lens is 32mm. The magnification of this kind of optic can not fluctuate because it is a fixed power scope.
Info About Adjustable Power Lens Rifle Scopes
Variable power rifle scopes use enhanced power. The power change is handled using the power ring part of the scope near the rear of the scope by the eye bell.
The Power Level and Range Correlation of Scopes
Here are some suggested scope power levels and the ranges where they could be effectively used. Highly magnified optics will not be as beneficial as lower magnification level optics because too much zoom can be a bad thing. The exact same idea relates to longer distances where the shooter needs to have adequate power to see exactly where to best aim the rifle at the target.
Optic Lens Finish
All state-of-the-art rifle glass lenses are layered. Lens coating can be a crucial element of a rifle when buying high end rifle optics and scope equipment.
Info on Rifle Optic Lens Coatings – HD Versus ED
Some scope brands also use “HD” or high-definition lens coverings which use various methods, components, chemicals, and polarizations to draw out different colors and viewable quality through the lens. Some scope makers use “HD” to refer to “ED” indicating extra-low dispersion glass.
Single Finishing Versus Multi-Coating
Various optic lenses can also have various coverings applied to them. All lenses generally have at least some type of treatment or coating applied to them before they are used in a rifle scope or optic.
This lens treatment can protect the lens from scratches while lowering glare and other less helpful things experienced in the shooting environment while sighting in with the scope. The quality of a single coated lens depends on the scope producer and how much you paid for it.
Some scope makers likewise make it a point to define if their optic lenses are layered or “multi” covered. This implies the lens has had several treatments applied to the surfaces. If a lens gets multiple treatments, it can show that a company is taking multiple actions to fight various environmental elements like an anti-glare finishing, a scratch resistant anti-abrasion coating, followed by a hydrophilic covering. This also does not necessarily imply the multi-coated lens is better than a single layered lens. Being “better” hinges on the maker’s lens treatment innovation and the quality of components used in developing the rifle scope.
Hydrophobic Lens Coating
Water on a scope lens does not support retaining a clear sight picture through an optic at all. Lots of top of the line and high-end optic makers will coat their lenses with a hydrophobic or hydrophilic coating. The Steiner Optics Nano-Protection is a good example of this kind of treatment. It provides protection for the exterior of the Steiner glass lens so the water particles can not bind to it or produce surface tension. The outcome is that the water beads roll off of the scope to preserve a clear, water free sight picture.
Choices for Mounting Rifle Glass on Long Guns
Installing solutions for scopes are available in a few options. There are the basic scope rings which are individually mounted to the scope and one-piece mounts which cradle the scope. These different kinds of mounts also normally are made in quick release versions which use throw levers which enable rifle shooters to rapidly install and dismount the scope.
Rifle Optic Mounts with Hex Key Rings
Standard, clamp design mounting scope rings use hex head screws to fix to the flattop style Picatinny scope mount rails on the tops of rifles. These varieties of scope mounts use two detached rings to support the optic, and are normally made from 7075 T6 billet aluminum or similar materials which are manufactured for far away accuracy shooting. This form of scope mount is effective for rifles which require a durable, hard use mount which will not shift regardless of just how much the scope is moved or jarring the rifle takes. These are the style of mounts you should get for a dedicated scope setup on a long distance hunting or competitors rifle which will pretty much never need to be modified or adjusted. Blue 242 Loctite threadlocker can additionally be used on screws to keep the hex screws from backing out after they are installed firmly in position. An example of these mounting rings are the 30mm style from the Vortex Optics brand. The set generally costs around $200 USD
Optic Mounting Solutions with Quick-Release Cantilever Rings
These types of quick-release rifle scope mounts can be used to quickly connect and detach a scope from a rifle before reattaching it to a different rifle. Multiple scopes can also be swapped out if they all use a compatible style mount. These types of mounts come in handy for rifles which are transported a lot, to swap out the optic from the rifle for protection, or for optics which are used between numerous rifles or are situationally focused.
Rifle Glass Tube Sealing and Gas Purging
Wetness inside your rifle scope can wreck a day of shooting and your costly optic by triggering fogging and creating residue within the scope’s tube. A lot of optics prevent moisture from getting in the optical tube with a series of sealing O-rings which are waterproof. Generally, these water resistant optics can be immersed under 20 or 30 feet of water before the water pressure can force moisture past the O-rings. This should be more than enough humidity prevention for conventional use rifles, unless you anticipate taking your rifle sailing and are worried about the optic still working if it goes over the side and you can still recover the firearm.
Rifle Optic Gas Purging
Another part of avoiding the accumulation of moisture inside of the rifle optic tube is filling the tube with a gas like nitrogen. Since this area is already taken up by the gas, the optic is less influenced by temperature shifts and pressure distinctions from the outside environment which could possibly permit water vapor to leak in around the seals to fill the vacuum which would otherwise exist. These are good qualities of a decent rifle scope to look for.
