Description
Rifle Scope Product Details

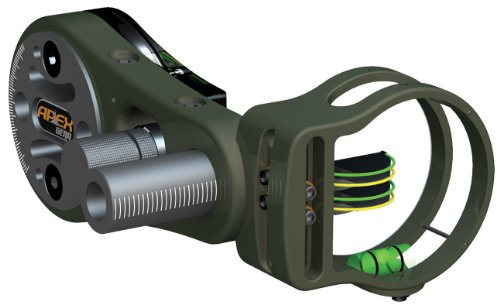

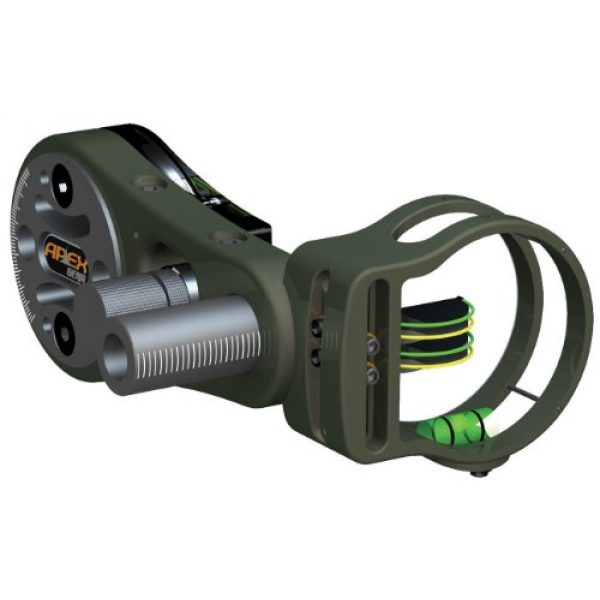

Apex Gear Atomic 4-Pin Sight .029″ Bronze
The Atomic Series sights have Extra, extra-long, protected, wrapped fiber. Aperture has a 1.8″ inner diameter. Adjustable with one hand. Glow-in-the-dark shooter’s ring helps align peep sight. Vertical adjustment allows it to fit virtually all bows. Level with two vertical bars. Level is illuminated by luminescent shooter’s ring.
Rifle Scope Product Features
Extra-long, fully integrated / protected wrapped fibers. Thin metal blades support fiber and increase visibility.
Unique dual-end fiber design allows for increased pin brightness and compact size. Ultra light and compact.
Large circular field of view. Aperture has 1.8″ inner diameter. Glow-in-the-dark shooter’s ring. Pivoting elevation bracket reduces total sight components.
Adjustable level has two vertical bars. Adjustable for left and right handed users. Laser markings for windage & elevation adjustments. LED light included.
About the Apex Gear Company
Apex Gear is a premium maker for long gun scopes, optics, mounts, and other components used for firearms like rifles and long guns. They innovate and supply their scopes, mounts, and related products making the most of elements which are long lasting and durable. This includes the Apex Gear Atomic 4-Pin Sight .029″ Bronze by Apex Gear. For additional shooting items, visit their site.
Rifle Glass Info
Rifle scopes allow you to specifically align a rifle at different targets by lining up your eye with the target over a distance. They accomplish this through magnification by using a series of lenses within the scope. The scope’s positioning can be adapted for the consideration of separate environmental factors like wind and elevation increases to make up for bullet drop.
The scope’s purpose is to help shooters understand exactly where the bullet will hit based on the sight picture you are viewing via the optic as you align the scope’s crosshair or reticle with the intended target. Most modern rifle scopes and optics have about 11 parts which are arranged inside and outside of the optic. These scope parts include the rifle scope’s body, lenses, elevation dials, focus rings, and other components. Learn about the eleven parts of rifle optics.
The Styles of Rifle Scopes
Rifle scopes can be either “first focal plane” or “second focal plane” kind of scopes. The style of focal plane an optic has determines where the reticle or crosshair is located in regard to the scopes magnifying adjustments. It actually indicates the reticle is located behind or ahead of the magnification lens of the scope. Deciding on the most ideal style of rifle scope depends on what style of shooting you intend on doing.
First Focal Plane Scopes
Focal plane scopes (FFP) include the reticle in front of the magnification lens. These types of scopes are beneficial for:
- Quick acquisition, far away types of shooting
- Shooting circumstances where calculations are minimal
- Experienced shooters who understand their target “hold over” plus “lead” equations for their long gun
- Shooters who do not mind the reticle is bigger and uses up more visual eyesight room than a SFP reticle
Second Focal Plane Scopes
Second focal plane scopes (SFP) come with the reticle behind the zoom lens. In the FFP example with the SFP scope, the 5x “zoom” one hundred yard tick would be 1/5th of the non “zoom” tick measurement.
- Far away styles of shooting where shooters have more time to make ballistic estimations
- Shooting where most of the shots occur within much shorter distances and ranges
- Shooters who choose a clearer optic picture without area used up by the bigger FFP reticle
Ins and Outs of Optic Magnification
The amount of zoom a scope offers is determined by the size, thickness, and curvatures of the lenses inside of the rifle scope. The magnification of the scope is the “power” of the scope.
Info About Fixed Power Lens Rifle Glass
A single power rifle optic comes with a magnification number designator like 4×32. This means the magnification power of the scope is 4x power and the objective lens is 32mm. The magnification of this type of scope can not fluctuate since it is a set power scope.
About Adjustable Power Lens Scopes
Variable power rifle scopes can be changed between magnification power levels. It will list the magnification degree in a format such as 2-10×32. These numbers imply the zoom of the scope can be adjusted between 2x and 10x power. This always involves the power levels in-between 2 and 10. The power manipulation is accomplished by employing the power ring component of the scope near the rear of the scope by the eye bell.
Glass Power Level and Ranges
Here are some advised scope power levels and the ranges where they can be successfully used. Keep in mind that higher power scopes will not be as efficient as lower powered optics due to the fact that too much zoom can be a negative thing in certain situations. The same concept goes for extended ranges where the shooter needs to have sufficient power to see exactly where to properly aim the rifle.
About Lens Finishing
All modern-day rifle scope and optic lenses are coated. There are various types and qualities of glass coverings. Lens coating can be an essential aspect of a rifle when looking at high-end rifle optics and scope equipment. The lenses are one of the most vital components of the optic considering they are what your eye looks through while sighting a rifle in on the point of impact. The covering on the lenses protects the lens exterior and even helps with anti glare from excess daylight and color presence.
HD Versus ED Scope Lens Coatings
Some rifle glass producers even use “HD” or high-def lense coatings which take advantage of various procedures, polarizations, chemicals, and components to enhance a wide range of color ranges and viewable target visibility through lenses. This high-def covering is commonly used with greater density lens glass which drops light’s potential to refract through the lens glass. Some scope makers use “HD” to describe “ED” meaning extra-low dispersion glass. ED deals with how colors are represented on the chromatic spectrum and the chromatic deviance or aberration which is also called color distortion or fringing. Chromatic aberration can be noticeable over things with well defined outlines as light hits the item from particular angles.
Single Covering Versus Multi-Coating for Rifle Glass
Various scope lenses can even have different finishings applied to them. All lenses generally have at least some kind of treatment or finishing applied to them before they are used in a rifle scope or optic assembly. This is due to the fact that the lens isn’t just a raw piece of glass. It becomes part of the finely tuned optic. It needs to have a covering placed on it so that it will be efficiently functional in numerous types of environments, degrees of light (full light VS shade), and other shooting conditions.
This lens treatment can safeguard the lens from scratches while minimizing glare and other less useful things experienced in the shooting environment while sighting in with the scope. The quality of a single coated lens depends on the scope manufacturer and how much you paid for it.
Some scope makers also make it a point to define if their optic lenses are layered or “multi” covered. This implies the lens has multiple treatments applied to the surfaces. If a lens receives several treatments, it can indicate that a manufacturer is taking several actions to combat different natural elements like an anti-glare covering, a scratch resistant anti-abrasion finish, followed by a hydrophilic finish. This additionally doesn’t necessarily suggest the multi-coated lens will perform much better than a single covered lens. Being “much better” hinges on the maker’s lens treatment innovation and the quality of glass used in constructing the rifle scope.
Rifle Glass Lens Hydrophobic Covering
Water on a lens doesn’t help with maintaining a clear sight picture through a scope at all. Lots of top of the line and high-end optic makers will coat their lenses with a hydrophobic or hydrophilic coating.
Optic Installation Alternatives
Installing solutions for scopes are available in a few choices. There are the basic scope rings which are separately mounted to the optic and one-piece scope mounts which cradle the scope. These different types of mounts also normally come in quick release versions which use toss levers which permit rifle operators to rapidly install and dismount the glass.
Hex Key Rifle Scope Ring Mounting Solutions
Basic, clamp-on design mounting optic rings use hex head screws to mount to the flattop design Picatinny scope mounting rails on the tops of rifles. These styles of scope mounts use double detached rings to support the scope, and are made from 7075 T6 billet aluminum or similar materials which are made for far away accuracy shooting. This kind of scope mount is effective for rifle systems which require a durable, hard use mount which will not shift despite how much the scope is moved about or jarring the rifle takes. These are the type of mounts you want for a specialized optics system on a far away scouting or sniper competition long gun which will rarely need to be modified or adjusted. Blue 242 Loctite threadlocker can additionally be used to stop the hex screws from backing out after they are installed securely in position. An example of these mounting rings are the 30mm style made by the Vortex Optics company. The set normally costs around $200 USD
Quick-Release Cantilever Scope Rings
These types of quick-release rifle scope mounts can be used to rapidly attach and detach a scope from a rifle before reattaching it to a different rifle. Several scopes can even be swapped out if they all use a compatible style mount. These types of mounts are handy for rifle platforms which are carried a lot, to remove the optic from the rifle for protection, or for optics which are used between numerous rifles.
Sealing and Gas Purging for Glass Tubes
Wetness inside your rifle scope can destroy a day of shooting and your pricey optic by bringing about fogging and producing residue inside of the scope tube. The majority of scopes avoid moisture from getting in the scope tube with a system of sealing O-rings which are water resistant.
What to Know About Scope Tube Gas Purging
Another part of preventing the buildup of moisture within the rifle optic’s tube is filling the tube with a gas like nitrogen. Since this area is currently occupied by the gas, the scope is less affected by temperature shifts and pressure distinctions from the external environment which may possibly permit water vapor to permeate in around the seals to fill the void which would otherwise be there. These are good qualities of a decent rifle scope to seek out.
