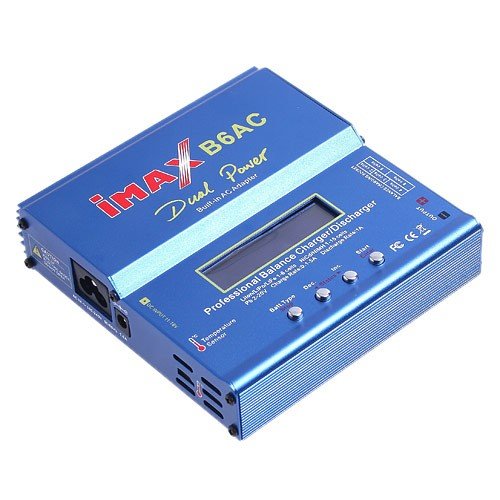

iMAX B6AC Battery Balance Charger – Quarkscm
This item is for a rapid charger/discharger for all kind of battery of RC hobby, with built in balancer for lipo battery. Battery that can be charged by this charger,Lipo / Li-ion / LiFe / NiMh / NiCad / Pb / Lead Acid
Feature:
1. High-power and high-performance circuit
2. Microprocessor controlled
3. Maximen safety: Delta-peak sensitivity, Capacity limit, processing time limit, tempreture limit, input power monitor
4. Monitoring the voltage of individual cell
5. Can charge Li-ion / LiPo / LiFe 1-6 cells, and Ni-Cd / NiMH 1 -15 cells
6. Dual Power, built-in AC adapter
7. UndefinedLarge range of charge currents
8. function, allows safe storage current, and data storage (Store up to 5 packs in memory)
9. Battery break in and cycling
10. Built-in temperature sensor
11. Separate voltage detector for balance charge mode.
Descritpion:
Color: Bright blue
Oeration voltage range : DC 11.0 ~ 18.0 Volt or AC 100V ~ 240V 50/60Hz
Circuit power : AC to DC adaptor (DC 11.0 ~ 18.0V / 5A)
Max. charge power 50W
Max. discharge power 5W
Charge current range : 0.1~5.0A
Discharge current range : 0.1~1.0A
Current drain for balancing Li-Po : 300mAh/cell
NiCd / NiMH battery cell count : 1~15 cell
Li-Ion / Polymer cell count : 1~6 series
Pb battery voltage : 2V~20V
Weight : 546g (Net Weight)
Dimensions : 136 x 141*34mm
Package weight: 778g
Packing included:
1 * IMAX B6AC LiPo battery balance charger (Built in Power Supply)
1 * 100 – 240V Power Supply wire
1 * English manual
