Rifle Scope Product Details
SVBONY SV176 Rifle Scopes,3-9x32mm Sight Scope,Dioptre Adjustable IPX6 Waterproof Shockproof with 20/22mm Rangefinder Scope for Outdoor Sports Activities
Rifle Scope Product Features
Brightness image; 3x-9x magnification can meet your different requirements; FC film and 32mm aperture allow more lights entrance the tube; The light transmittance of metal wire is better than that of glass
Compatibility; with 20/22mm pictinny weaver mount is suitable for any 20/22mm pictinny weaver rail
Easy to adjust; separate magnification controlling ring make the magnigication adjustment quick and accurate; fingers adjusting turrets without tools
Durable rifle scopes; metal wires and one tube aluminum material make the rifle scope waterproof shockproof fogproof;Flip lens cover prevent scratching
Crosshair Reticle helps you to aim better even in the darkest environment; The advantage of an SFP reticle is that it always maintains the same appearance
3-9x Zoom Magnification
Lock your target and get more detail by zoom in for high power magnification.
Elevation and Windage Adjustment
1/4MOA per click windage and elevation adjustment is accurate for your objects. Finger adjustment and no tools needed.

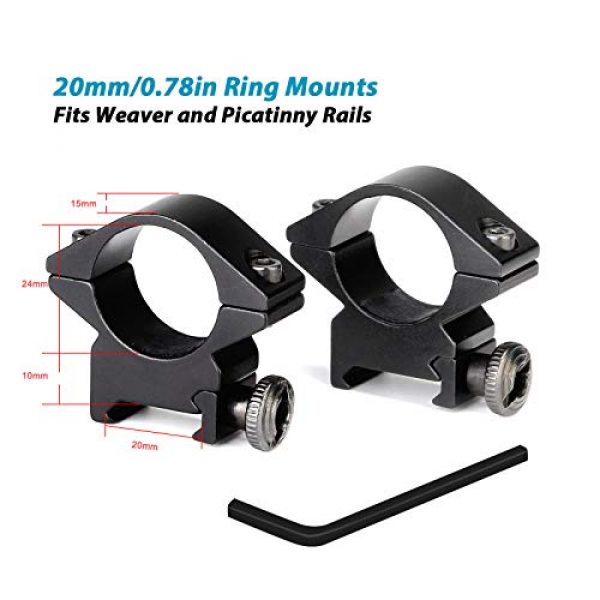

20mm Pair of Ring Mounts
It comes with 2 20mm ring mounts to fit Picatinny and Weaver rail.
Durable and Long Lifetime Construction
25.4mm/1in aluminum tube is durable and sturdy for long life time. SV176 rifle scope is waterproof fogproof and shockproof, which can be used in most harsh weather conditions.
High quality lens
High quality lens
–Real MC film can allow more lights entrance the tube
–11pcs optical glass minimize image deviation
1/4MOA,30MOA
1/4MOA,30MOA
Elevation windage can be adjusted according to the wind direction and force.
Fingers turrets
Fingers turrets
Two thumbs can adjust the turret, which is very easy to operate.
Diopter compensation
2D diopter compensation provides nearsighted and farsighted users a clear image without eyeglasses
Package Includes:
1xSV176 3-9×32 Riflescope
1x Pair of Flip lens cover
1xPair of Ring Mounts
1x3mm Hex Key
1xMirror cloth
1xInstruction Manual
20/22mm rail mount
20/22mm rail mount
with 20/22mm picatinny weaver mount is suitable for any 20/22mm pictinny weaver rail
Magnification 3x – 9x
Exit Pupil 3.48-10mm
Field Of View 7.4°-2.4°
Windage Elevation 40MOA ~ 40 MOA
Ring Mounts Fits Weaver and Picatinny Rails
Rails 20mm(0.78IN)
Number of Lenses 11PCS
Tube Diameter 25.4MM1IN
Material of Reticle Metal Wire
Objective Lens 32mm(1.26IN)
Eyepiece Lens 32mm(1.26IN)
Diopter Compensation 2D
Shock Proof 800g@1000 cycles
Material Aluminum
Length 295mm(11.6IN)
Net Weight 305g
About the SVBONY Company
SVBONY is a premium supplier for rifle scopes, optics, mounting solutions, and other add-ons used for firearms like rifles and long guns. They style and build their scopes and related products making the most of building materials which are long lasting and durable. This includes the SVBONY SV176 Rifle Scopes,3-9x32mm Sight Scope,Dioptre Adjustable IPX6 Waterproof Shockproof with 20/22mm Rangefinder Scope for Outdoor Sports Activities by SVBONY. For more shooting products, visit their site.
Glass Facts
Rifle scopes allow you to specifically aim a rifle at different targets by lining up your eye with the target over a distance. They accomplish this through zoom by using a set of lenses within the scope. The scope’s alignment can be adjusted for consideration of different ecological elements like wind speed and elevation to account for bullet drop.
The scope’s function is to understand precisely where the bullet will hit based on the sight picture you are seeing through the scope as you align the scope’s crosshair or reticle with the intended point of impact. Many modern rifle scopes have around 11 parts which are found inside and outside of the scope. These scope parts consist of the rifle scope’s body, lenses, adjustment turrets, focus rings, and other parts. See all eleven parts of an optic.
About Rifle Scope Types
Rifle scopes can be either “first focal plane” or “second focal plane” kind of scopes. The style of focal plane a scope has determines where the reticle or crosshair is located in connection with the optic’s magnification. It simply indicates the reticle is located behind or before the magnification lens of the optic. Considering the most suitable form of rifle scope is dependent on what type of shooting you plan on undertaking.
Info About First Focal Plane Optics
First focal plane scopes (FFP) come with the reticle ahead of the zoom lens. This induces the reticle to increase in size based upon the level of magnification being used. The outcome is that the reticle measurements are the same at the magnified range as they are at the non magnified range. For example, one tick on a mil-dot reticle at 100 yards without “zoom” is still the same tick at one hundred yards with 5x “zoom”. These types of scopes are practical for:
- Quick acquisition, far away kinds of shooting
- Shooting situations where computations are very little
- Experienced shooters who recognize their aim point “hold over” plus “lead” correlations for their long guns
- Shooters who don’t mind the reticle is bigger and uses up more visual sight space than a SFP reticle
About Second Focal Plane Optics
Second focal plane scopes (SFP) feature the reticle behind the magnifying lens. This induces the reticle to stay at the exact same overall size relative to the amount of magnification being used. The outcome is that the reticle measurements adapt based upon the magnification applied to shoot over greater distances considering that the markings represent different increments which fluctuate with the magnification level. In the FFP illustration with the SFP optic, the 5x “zoom” 100 yard tick reticle measurement would be 1/5th of the non “zoom” tick reticle measurement. These particular kinds of optics work for:
- Long distance kinds of shooting where shooters have extra time to make ballistic estimations
- Shooting where most shots occur within much shorter distances and ranges
- Shooters who prefer a clearer optic picture without area taken up by the larger sized FFP reticle
Rifle Scope Zoom
The measure of scope zoom you need depends on the sort of shooting you desire to do. Just about every style of rifle scope delivers some degree of magnification. The level of magnification a scope offers is established by the diameter, thickness, and curves of the lens glass within the rifle scope. The zoom of the optic is the “power” of the glass. This denotes what the shooter is observing through the scope is amplified times the power element of what can typically be seen by human eyes.
Fixed Single Power Lens Rifle Optic Details
A single power rifle scope or optic comes with a zoom number designator like 4×32. This implies the magnification power of the scope is 4x power and the objective lens is 32mm. The magnification of this type of scope can not adjust considering that it is fixed.
About Adjustable Power Lens Glass
Variable power rifle scopes have adjustable power. It will list the zoom amount in a format like 2-10×32. These numbers suggest the magnification of the scope can be set in between 2x and 10x power. This additionally incorporates the power levels in-between 2 and 10. The power modification is accomplished by working with the power ring component of the scope near the rear of the scope by the eye bell piece.
The Power and Range Correlation of Rifle Glass
Here are some recommended scope power levels and the distances where they can be efficiently used. High power optics will not be as efficient as lower magnification level rifle scope glass considering that too much magnification can be a negative aspect depending on your shooting distance. The same concept applies to longer ranges where the shooter needs to have adequate power to see precisely where to best aim the rifle.
Info on Scope Lens Finishing
All top teir rifle optic lenses are covered. Lens covering is a vital element of a shooting system when buying high end rifle optics and scope setups.
HD Versus ED Scope Lens Coatings
Some glass companies also use “HD” or high-definition lens coatings which apply various processes, components, polarizations, and chemical applications to extract various colors and viewable definition through lenses. This high-definition finishing is typically used with increased density lens glass which drops light’s opportunity to refract by means of the lens glass. Some scope manufacturers use “HD” to describe “ED” suggesting extra-low dispersion glass. ED handles how certain colors are presented on the chromatic spectrum and the chromatic deviance or aberration which is similarly called color distortion or fringing. Chromatic aberration is often noticeable over objects with defined outlines as light hits the object from various angles.
Single Finish Versus Multi-Coating
Different scope lenses can even have various coverings applied to them. All lenses typically have at least some type of treatment or finishing applied to them prior to being used in a rifle scope or optic. This is because the lens isn’t just a raw piece of glass. It becomes part of the carefully tuned optic. It requires a coating to be applied to it so that it will be efficiently functional in numerous types of environments, degrees of light (full VS shaded), and other shooting conditions.
Single covered lenses have a treatment applied to them which is generally a protective and boosting multi-purpose treatment. This lens treatment can shield the lens from scratches while minimizing glare and other less beneficial things experienced in the shooting environment while sighting in with the optic. The quality of a single layered lens depends on the scope company and how much money you spent for it. Both are indicators of the lens quality.
Some scope producers also make it a point to define if their optic lenses are layered or “multi” coated. This means the lens has multiple treatments applied to the surfaces of the glass. If a lens receives multiple treatments, it can prove that a manufacturer is taking several steps to fight various environmental aspects like an anti-glare coating, a scratch resistant anti-abrasion finish, followed by a hydrophilic finish. This additionally doesn’t always indicate the multi-coated lens will perform better than a single coated lens. Being “much better” is dependent on the maker’s lens treatment techniques and the quality of products used in developing the rifle optic.
Hydrophobic Lens Coverings
Water on a lens does not assist with preserving a clear sight picture through a scope at all. Numerous top of the line and military grade optic companies will coat their lenses with a hydrophilic or hydrophobic anti-water finish.
Choices for Mounting Rifle Optics on Long Guns
Installing solutions for scopes are available in a few choices. There are the standard scope rings which are separately installed to the optic and one-piece mounts which cradle the scope. These various kinds of mounts also usually are made in quick release versions which use throw levers which permit rifle shooters to rapidly install and dismount the scope.
Glass Mounts with Hex Key Rings
Standard, clamp design mounting optic rings use hex head screws to fix to the flattop design Picatinny scope mounting rails on rifles. These forms of scope mounts use two independent rings to support the scope, and are normally constructed from 7075 T6 billet aluminum which are made for long distance accuracy shooting. This kind of scope mount is ideal for rifle systems which are in need of a resilient, unfailing mount which will not shift regardless of how much the scope is moved about or jarring the rifle takes. These are the type of mounts you want for a faithful scope setup on a reach out and touch someone hunting or competitors long gun that will hardly ever need to be changed or recalibrated. Blue 242 Loctite threadlocker can additionally be used on the screws to keep the hex screws from wiggling out after they are installed safely in position. An example of these mounting rings are the 30mm type made by Vortex Optics. The set generally costs around $200 USD
Quick-Release Cantilever Scope Ring Mounting Solutions
These types of quick-release rifle scope mounts can be used to rapidly take off a scope and connect it to a different rifle. Several scopes can also be swapped out if they all use a compatible style mount. These types of mounts are handy for rifles which are transported a lot, to swap out the optic from the rifle for protection, or for optics which are used between multiple rifles.
Scope Tube Sealing and Gas Purging
Wetness inside your rifle scope can destroy a day of shooting and your costly optic by causing fogging and creating residue inside of the scope tube. Most scopes avoid moisture from getting in the scope tube with a system of sealing O-rings which are water resistant.
Gas Purged Glass Tubes
Another component of preventing the accumulation of wetness within the rifle optic tube is filling the tube with a gas like nitrogen. Because this area is already occupied by the gas, the optic is less altered by temperature level changes and pressure differences from the outside environment which might possibly enable water vapor to permeate in around the seals to fill the vacuum which would otherwise exist. These are good qualities of a good rifle scope to seek out.
