Description
Rifle Scope Product Details

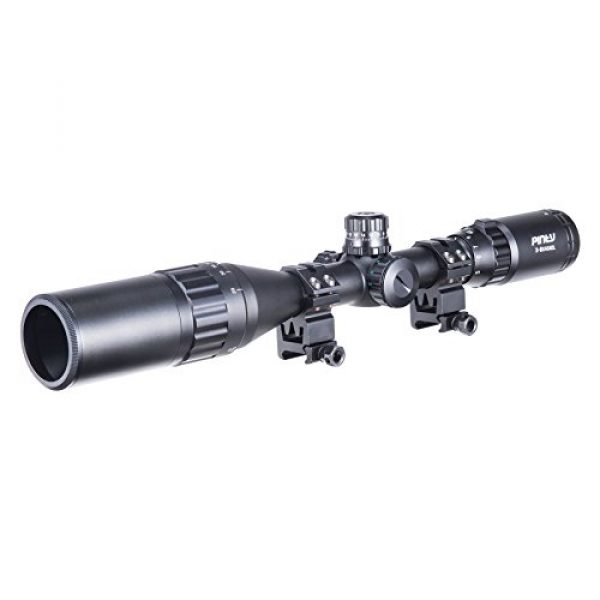

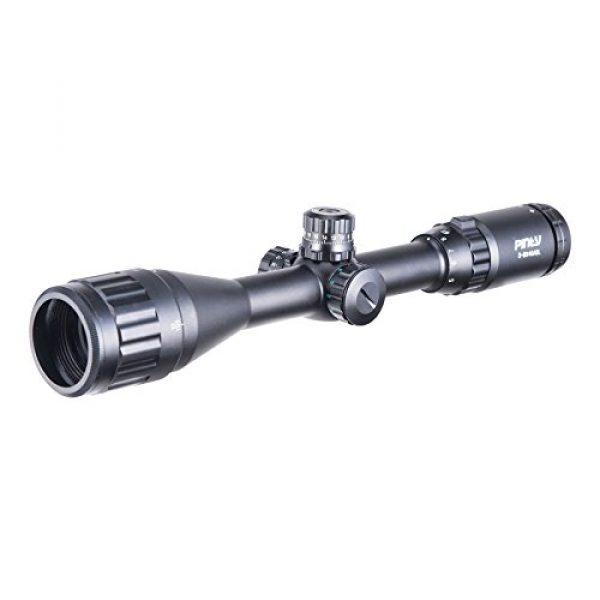

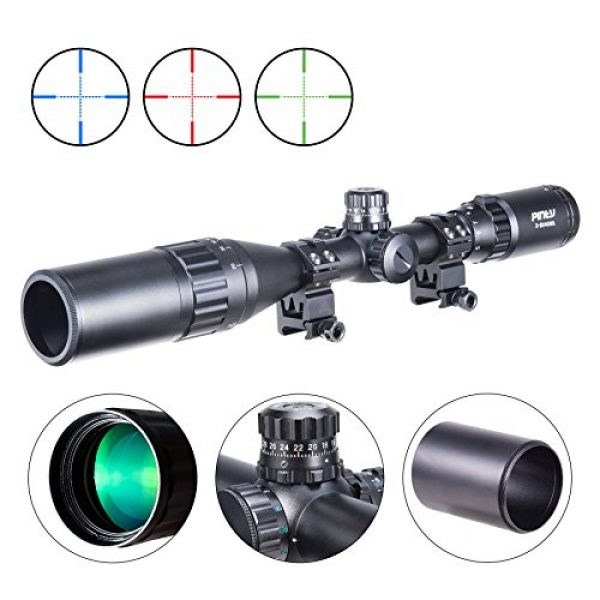

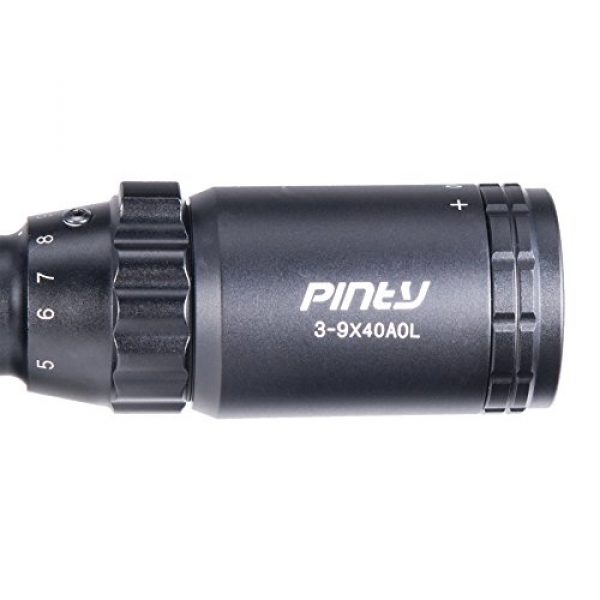

Pinty 3-9X40 Rifle Scope AO Red Green Blue Illuminated Mil Dot with Flip-Open Covers, Sunshade Tube
Rifle Scope Product Features
About this item
Pinty riflescope features unsurpassed light transmission, uncompromising mechanical performance and unbeatable optical clarity
Hand-turn 1/2 MOA windage and elevation adjustments along with zero locking function
Value combo includes: a riflescope with true magnification from 3 to 9 times, 2 flip-up covers, mounts and a sunshade tube
Picatinny mount easily mountable to any 20mm rails; Rugged, one piece body tube, premium quality
Fully multi-coated lens, water, fog and shock proof
Specifications:
Height: 2 IN
Width: 2 IN
Length: 13.25 IN
Weight: 17 OZ
One piece tube with front AO and 3″ sunshade
Magnification: 3X – 9X
Tube Diameter: 1 Inch
Objective Diameter: 40mm
Field of View @ 100 yards: 39.3″ – 13.1″
Eye Relief: 3.3″ – 3.1″
Exit Pupil: 10.0mm – 4.4mm
Click Value @100 yards: 1/4″
Parallax Setting: 5 Yards – Infinity
Batteries: CR2032 3V
Package includes:
1x Riflescope
1x Sunshade

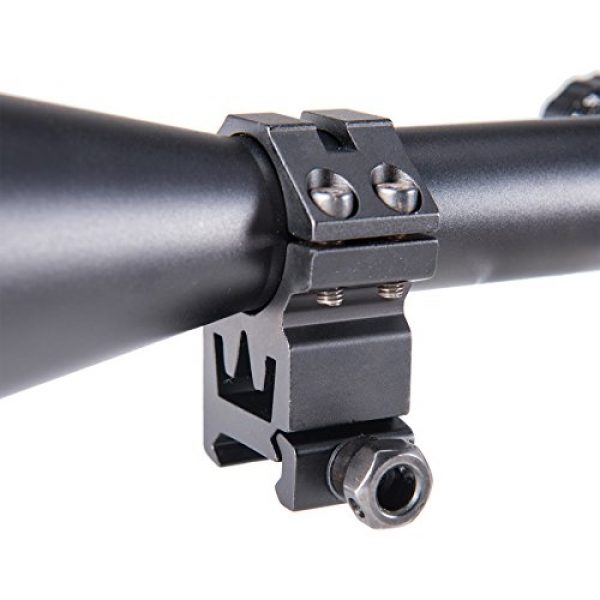

2x Heavy Duty Ring Mounts
2x Lens Covers
1x L Shaped Wrench
1x Manual
1x Cleaning Cloth
1x CR2032
About the Pinty Manufacturer
Pinty is a premium supplier for long gun scopes, optics, mounting solutions, and other accessories used for firearms like rifles and long guns. They create and make their mounts, scopes, and related products choosing materials which are long lasting and durable. This includes the Pinty 3-9X40 Rifle Scope AO Red Green Blue Illuminated Mil Dot with Flip-Open Covers, Sunshade Tube by Pinty. For additional shooting items, visit their website.
What You Need to Know About Glass
Rifle scopes enable you to exactly align a rifle at different targets by aligning your eye with the target at range. They do this through magnification by making use of a series of lenses inside the scope. The scope’s positioning can be adapted for consideration of separate environmental aspects like wind speed and elevation increases to account for bullet drop.
The scope’s purpose is to help shooters understand exactly where the bullet will hit based upon the sight picture you are seeing with the optic as you align the scope’s crosshair or reticle with the intended target. Many modern-day rifle scopes and optics have about 11 parts which are found internally and externally on the scope. These optic pieces consist of the rifle scope’s body, lenses, adjustment dials or turrets, objective focus rings, and other parts. Learn about the eleven parts of rifle scopes.
Rifle Glass Styles
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. Considering the best type of rifle scope is based on what type of shooting you plan on doing.
Info About First Focal Plane Glass
Focal plane scopes (FFP) include the reticle in front of the magnification lens. These styles of scopes are useful for:
- Quick acquisition, long distance kinds of shooting
- Shooting scenarios where calculations are minor
- Experienced shooters who understand their target “hold over” and also “lead” relationships for their long gun
- Shooters who do not mind the reticle is bigger and takes up more visual sight area than a SFP reticle
Second Focal Plane Optics
Second focal plane scopes (SFP) come with the reticle to the rear of the magnification lens. In the FFP example with the SFP scope, the 5x “zoom” 100 yard tick measurement would be 1/5th of the non “zoom” tick reticle measurement.
- Long distance forms of shooting where shooters have extra time to make ballistic estimations
- Shooting where most of the shots take place within shorter spaces and ranges
- Shooters who desire a clearer optic picture with less area taken up by the enlarged FFP reticle
Glass Magnification
The amount of zoom a scope provides is figured out by the diameter, thickness, and curvatures of the lenses inside of the rifle scope. The zoom of the scope is the “power” of the scope.
About Single Power Lens Rifle Optics
A single power rifle optic will have a magnification number designator like 4×32. This means the zoom power of the scope is 4x power while the objective lens is 32mm. The zoom of this type of scope can not adjust since it is set from the factory.
Adjustable Power Lens Rifle Scopes
Variable power rifle scopes use variable power levels. The power change is accomplished by making use of the power ring part of the scope near the back of the scope by the eye bell.
The Power Level and Range of Optics
Here are some recommended scope power levels and the distances where they can be efficiently used. High power optics will not be as beneficial as lower magnification level rifle scope glass since too much magnification can be a negative aspect depending on your shooting distance. The same idea relates to extended ranges where the shooter needs to have adequate power to see precisely where to properly aim the rifle.
About Lens Coating
All cutting-edge rifle optic and scope lenses are covered. Lens finishing is a crucial element of a shooting system when buying high end rifle optics and scope systems.
HD Versus ED Lenses
Some rifle scope suppliers also use “HD” or high-def glass coatings which use different procedures, aspects, polarizations, and chemical applications to draw out different color ranges and viewable target visibility through the lens. This high-definition coating is commonly used with higher density glass which brings down light’s chance to refract by means of the lens glass. Some scope brands use “HD” to describe “ED” signifying extra-low dispersion glass. ED deals with how colors are represented on the chroma spectrum and the chromatic aberration or difference which is similarly called color distortion or fringing. Chromatic aberration may be noticeable over objects with well defined shapes as light hits the item from specific angles.
Single Covering Versus Multi-Coating for Scopes
Various optic lenses can even have various finishings applied to them. All lenses generally have at least some kind of treatment or finish applied to them prior to being used in a rifle scope or optic. This is since the lens isn’t simply a raw piece of glass. It becomes part of the finely tuned optic. It needs to have a coating put on it so that it will be optimally functional in lots of kinds of environments, degrees of sunshine (full light VS shade), and other shooting conditions.
This lens treatment can protect the lens from scratches while minimizing glare and other less useful things experienced in the shooting environment while sighting in with the scope. The quality of a single layered lens depends on the scope producer and how much you paid for it.
Some scope producers likewise make it a point to specify if their optic lenses are layered or “multi” covered. This implies the lens has had several treatments applied to the surfaces. If a lens gets multiple treatments, it can prove that a maker is taking multiple steps to fight different environmental elements like an anti-glare covering, a scratch resistant anti-abrasion covering, followed by a hydrophilic finish. This also doesn’t always imply the multi-coated lens is better than a single layered lens. Being “better” is dependent on the manufacturer’s lens treatment techniques and the quality of products used in developing the rifle scope.
Hydrophobic Lens Coating
Water on an optic’s lens does not help with retaining a clear sight picture through an optic at all. Numerous top of the line and high-end scope manufacturers will coat their lenses with a hydrophobic or hydrophilic finish. The Steiner Optics Nano-Protection is a good example of this type of treatment. It treats the exterior of the Steiner optic lens so the H2O molecules can not bind to it or develop surface tension. The result is that the water beads move off of the scope to keep a clear, water free sight picture.
Options for Mounting Glass on Long Guns
Installing solutions for scopes come in a few options. There are the standard scope rings which are individually mounted to the scope and one-piece mounts which cradle the scope. These various types of mounts also usually are made in quick release versions which use toss levers which permit rifle shooters to rapidly install and remove the scopes.
Hex Key Glass Ring Mounts
Standard, clamp type mounting optic rings use hex head screws to fix to the flattop style Picatinny scope mount rails on rifles. These forms of scope mounts use a pair of independent rings to support the scope, and are made from 7075 T6 billet aluminum which are designed for far away precision shooting. This form of scope mount is exceptional for rifles which require a resilient, unfailing mount which will not move regardless of how much the scope is moved about or jarring the rifle takes. These are the type of mounts you want for a faithful scope setup on a long distance scouting or competitors long gun that will almost never need to be changed or recalibrated. Blue 242 Loctite threadlocker can additionally be used on the scope mount’s screws to stop the hex screw threads from wiggling out after they are installed securely in position. An example of these rings are the 30mm type made by the Vortex Optics company. The set typically costs around $200 USD
Rifle Scope Mounts with Quick-Release Cantilever Rings
These kinds of quick-release rifle scope mounts can be used to rapidly remove a scope from a rifle and reattach it to a different rifle. If they all use a similar design mount, multiple scopes can also be swapped out. The quick detach design is CNC crafted from anodized 6061 T6 aluminum and the mounting levers fasten nicely to a flat top type Picatinny rail. This lets the scope to be sighted in while on the rifle, taken off of the rifle, and remounted back on the rifle while maintaining the original sighting settings. These types of mounts come in beneficial for rifles which are moved a lot, to remove the scope from the rifle for protection, or for scopes which are employed between numerous rifles. An example of this mount type is the 30mm mount designed by Vortex Optics. It usually costs around $250 USD
Details on Scope Tube Sealing and Gas Purging
Wetness inside your rifle scope can ruin a day of shooting and your expensive optic by bringing about fogging and creating residue inside of the scope tube. Most scopes prevent moisture from getting in the scope tube with a system of sealing O-rings which are waterproof.
Gas Purged Rifle Optic Tubes
Another element of avoiding the buildup of moisture within the rifle optic tube is filling the tube with a gas like nitrogen. Given that this area is already taken up by the gas, the optic is less affected by temp shifts and pressure distinctions from the outdoor environment which could potentially permit water vapor to permeate in around the seals to fill the vacuum which would otherwise be there. These are good qualities of a good rifle scope to look for.
