Rifle Scope Product Details

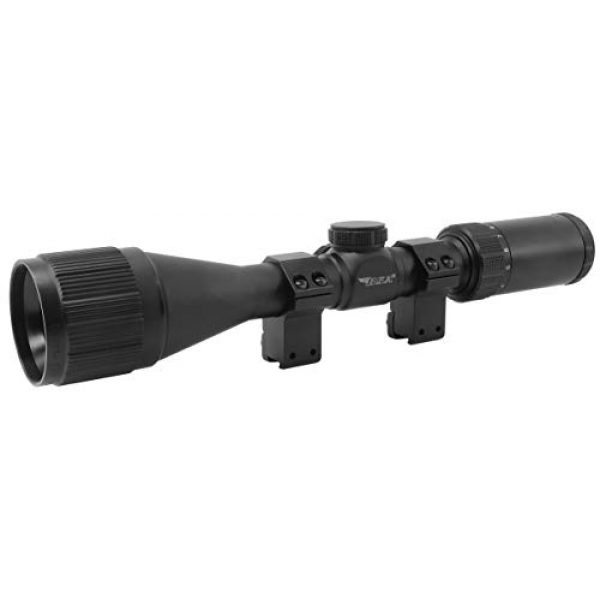

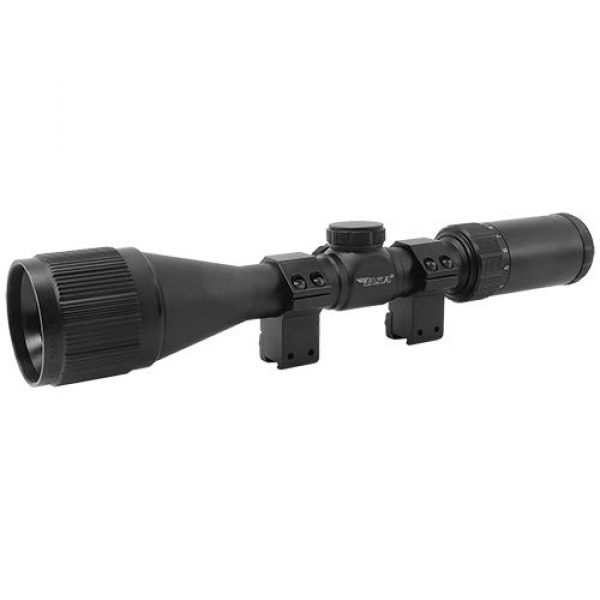

BSA Optics Outlook 3-9X40 Adjustable Objective Air Rifle Scope
Outlook air rifle Series. The new outlook Series air rifle scopes were specifically designed to withstand the reverse recoil found in the most-powerful air rifles. This Series offers fully multi-coated lenses, fast focus, an adjustable objective, low profile zero-reset turrets and a mil-dot reticle. This Series comes standard with two-piece dovetail rings. Matte Black finish. Waterproof, shockproof and fog proof. BSA Optics optics x is managed by hunters. So we know how important it is to have a scope that you can trust. That’s why we want to be able to offer bright, dependable scopes to every type of Hunter – from novice to seasoned Pro, and still keep them affordable. We have a complete range of models that cover every type of shooting. Take us Along with you The next time you go out. You’ll like what you see.
Rifle Scope Product Features
Specifically designed to withstand the reverse recoil found in the most-powerful air rifles
3X-9X magnification
Fully Multi Coated Glass Lens
Mil-Dot Reticle
40mm objective
Dovetail Rings
Adjustable Objective
BSA Optics Outlook 3-9X40 Air Rifle Scope
Specifically designed to withstand the reverse recoil found in the most powerful air rifles
The new OUTLOOK series air rifle scopes were specifically designed to withstand the reverse recoil found in the most powerful air rifles. Feature rich, this series offers fully multi-coated lenses, fast focus, and adjustable objective, low profile zero-reset turrets, and a Mil-Dot reticle. This series comes standard with 2 piece dovetail rings. Matte black finish. Waterproof, Shockproof and Fogproof
Magnification low: 3; Magnification high:9
Objective lens diameter 40 mm
Adjustment MOA: 1/4
Lens Material: Glass; Lens: Fully Multi-Coated
W/E Range: 35; Eye Relief: 3.7-4 inches
FOV LOW @ 100′ (ft): 34.5; FOV HIGH @ 100′ (ft): 11
PARALLAX SETTING (yds): 10 to Inf.
Reticle: Mil-Dot
Shockproof, Fogproof, Waterproof
Tube diameter: 1″, one piece; Aluminum Construction. Adjustable Objective.
Specification
Magnification low: 3; Magnification high: 9; Objective lens diameter: 40 mm
Mil-Dot Reticle
1 piece aluminum construction, 1 inch tube
Glass lens material, fully multi-coated
Two-piece Dovetail rings included
Shockproof, Fogproof, Waterproof
Adjustable Objective
17.70 oz weight; 12.30 in length
AIR3-9X40AOTB BSA Outlook 3-9X40 Air Rifle Scope
Specifically designed to withstand the reverse recoil found in the most powerful air rifles
BSA Outlook 4-12×44 Air Rifle Scope BSA Outlook 3-9×40 Air Rifle Scope BSA Outlook 4×32 Air Rifle Scope
Magnification 4-12 3-9 4
Objective Diameter 44 mm 40 mm 32 mm
Adjustable Objective
Lenses Fully Multi-Coated Glass Fully Multi-Coated Glass Fully Multi-Coated Glass
Shockproof, Fogproof, Waterproof
Mounts included Two-Piece Dovetail Rings Two-Piece Dovetail Rings Two-Piece Dovetail Rings
Reticle Mil-Dot Mil-Dot Mil-Dot
Illuminated Reticle Red/Green N/A N/A
Weight 19.00 oz 17.70 oz 11.80 oz
Length 12.80 in 12.30 in 10.85 in
About the BSA Optics Scope Maker
BSA Optics is a premium maker for rifle scopes, optics, mounting solutions, and other accessories used for guns like rifles and long guns. They innovate and build their scopes and related products by applying materials which are long lasting and durable. This includes the BSA Optics Outlook 3-9X40 Adjustable Objective Air Rifle Scope by BSA Optics. For additional shooting goods, visit their site.
Info Rifle Optics
Rifle scopes enable you to precisely align a rifle at various targets by lining up your eye with the target at range. They accomplish this through zoom by making use of a series of lenses inside the scope. The scope’s positioning can be adapted for the consideration of various environmental elements like wind and elevation increases to account for bullet drop.
The scope’s purpose is to understand precisely where the bullet will land based upon the sight picture you are seeing via the scope as you line up the scope’s crosshair or reticle with the intended target. Most contemporary rifle scopes and optics have around 11 parts which are found inside and externally on the optic. These scope parts consist of the rifle scope’s body, lenses, windage and elevation turrets, focus rings, and other elements. Learn about the eleven parts of rifle optics.
Rifle Glass Varieties
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. The kind of focal plane an optic has identifies where the reticle or crosshair is located relative to the optic’s zoom. It simply means the reticle is located behind or ahead of the magnifying lens of the optic. Looking for the most effective style of rifle optic is based upon what style of hunting or shooting you intend on doing.
Info About First Focal Plane Glass
First focal plane scopes (FFP) feature the reticle ahead of the magnifying lens. This causes the reticle to increase in size based on the extent of magnification being used. The benefit is that the reticle measurements are the same at the magnified distance as they are at the non amplified distance. For instance, one tick on a mil-dot reticle at 100 yards without having “zoom” is still the exact same tick at 100 yards using 5x “zoom”. These types of scopes work for:
- Quick acquisition, far away types of shooting
- Shooting situations where computations are low
- Experienced shooters who know their aim point “hold over” and “lead” equations for their weapon
- Shooters who do not mind the reticle is bigger and occupies more visual sight space than a SFP reticle
About Second Focal Plane Glass
Second focal plane scopes (SFP) come with the reticle behind the zoom lens. This causes the reticle to stay at the exact same size in connection with the quantity of zoom being used. The result is that the reticle dimensions alter based upon the zoom chosen to shoot over greater distances considering the reticle markings present different increments which fluctuate with the zoom. In the FFP illustration with the SFP optic, the 5x “zoom” one hundred yard tick measurement would be 1/5th of the non “zoom” tick. These particular kinds of scopes are useful for:
- Far away kinds of shooting where shooters have extra time to make ballistic calculations
- Shooting where most shots occur within shorter ranges and distances
- Shooters who desire a clearer optic picture with less room taken up by the bigger FFP reticle
Glass Zoom
The quantity of magnification a scope supplies is figured out by the size, thickness, and curvatures of the lenses inside of the rifle scope. The magnification of the scope is the “power” of the scope.
Single Power Lens Rifle Scope Info
A single power rifle optic comes with a magnification number designator like 4×32. This means the zoom power of the scope is 4x power and the objective lens is 32mm. The zoom of this type of optic can not change because it is set from the factory.
Adjustable Power Lens Rifle Glass Facts
Variable power rifle scopes use variable power levels. The power adjustment is handled by using the power ring part of the scope near the rear of the scope by the eye bell.
Rifle Scope Power and Ranges
Here are some advised scope power levels and the distances where they could be effectively used. Highly magnified rifle scope glass will not be as useful as lower magnification rifle scope glass considering too much magnification can be a bad thing. The exact same concept relates to extended ranges where the shooter needs to have enough power to see where to properly aim the rifle at the target.
Info on Rifle Scope Lens Coating
All contemporary rifle scope and optic lenses are covered in special coatings. There are different types and qualities of lens finishings. When looking at luxury rifle scope setups, Lens finish can be a critical component of defining the capability of the rifle. The glass lenses are one of the most significant pieces of the glass because they are what your eye sees through while sighting a rifle in on the point of impact. The coating on the lenses protects the lens surface area and also assists with anti glare from excess light and color perception.
HD Versus ED Lens Coatings
Some scope companies also use “HD” or high-definition lens finishings that apply various processes, chemical applications, polarizations, and elements to extract various color ranges and viewable definition through lenses. This HD coating is normally used with increased density glass which lowers light’s opportunity to refract by means of the lens glass. Some scope producers use “HD” to refer to “ED” indicating extra-low dispersion glass. ED handles how certain colors are represented on the chromatic spectrum and the chromatic deviance or aberration which is similarly called color distortion or fringing. Chromatic aberration can be obvious around objects with well defined outlines as light hits the object from certain angles.
Single Finish Versus Multi-Coating for Rifle Scopes
Different optic lenses can likewise have various finishings used to them. All lenses typically have at least some type of treatment or covering applied to them before being used in a rifle scope or optic.
Single coated lenses have a treatment applied to them which is generally a protective and enhancing multi-purpose treatment. This lens treatment can shield the lens from scratches while minimizing glare and other less helpful things experienced in the shooting environment while sighting in with the optic. The quality of a single covered lens depends upon the scope designer and how much you spent on it. Both are signs of the lens quality.
Some scope producers likewise make it a point to define if their optic lenses are layered or “multi” coated. This means the lens has multiple treatments applied to the surfaces. If a lens gets several treatments, it can indicate that a maker is taking multiple actions to fight various environmental factors like an anti-glare covering, a scratch resistant anti-abrasion finishing, followed by a hydrophilic finish. This also does not necessarily indicate the multi-coated lens will perform better than a single coated lens. Being “better” is dependent on the manufacturer’s lens treatment techniques and the quality of products used in creating the rifle glass.
Anti-water Lens Finishes
Water on a lens does not help with keeping a clear sight picture through a scope at all. Numerous top of the line and high-end scope makers will coat their lenses with a hydrophobic or hydrophilic finishing.
Alternatives for Mounting Scopes on Firearms
Installing solutions for scopes can be found in a few choices. There are the basic scope rings which are separately installed to the optic and one-piece mounts which cradle the scope. These different types of mounts also typically can be found in quick release versions which use toss levers which allow rifle operators to quickly mount and remove the optics.
Hex Key Optic Rings
Normal, clamp design mounting scope rings use hex head screws to mount to the flattop style Picatinny scope installation rails on rifles. These types of scope mounts use a couple of different rings to support the optic, and are made from 7075 T6 billet aluminum which is created for long range precision shooting. This type of scope mount is fine for rifles which require a long lasting, sound mount which will not move no matter how much the scope is moved or abused.
Scope Mounting Solutions with Quick-Release Cantilever Rings
These types of quick-release rifle scope mounts can be used to rapidly attach and remove a scope from a rifle before reattaching it to a different rifle. Multiple scopes can also be switched out if they all use a similar design mount. These types of mounts come in handy for long guns which are carried a lot, to remove the optic from the rifle for protection, or for optics which are used between numerous rifles or are situationally focused.
Sealing and Gas Purging for Glass Tubes
Wetness inside your rifle scope can destroy a day of shooting and your costly optic by triggering fogging and creating residue inside of the scope tube. The majority of scopes avoid moisture from entering the scope tube with a system of sealing O-rings which are waterproof.
Gas Purged Rifle Optic Tubes
Another component of preventing the accumulation of moisture within the rifle optic’s tube is filling the tube with a gas like nitrogen. Because this area is currently occupied by the gas, the optic is less impacted by climate shifts and pressure variations from the outdoor environment which could possibly enable water vapor to permeate in around the seals to fill the void which would otherwise be there. These are good qualities of a good rifle scope to look for.
