Description
Rifle Scope Product Details

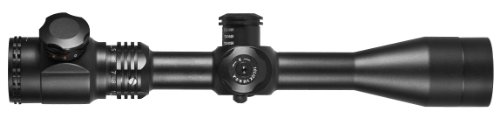

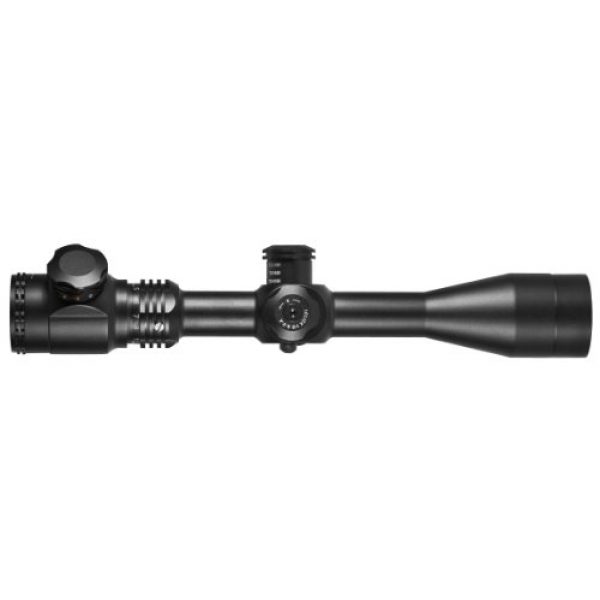

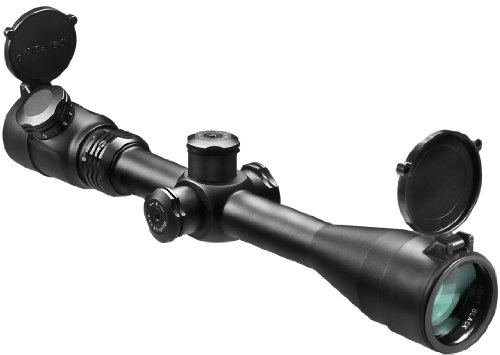

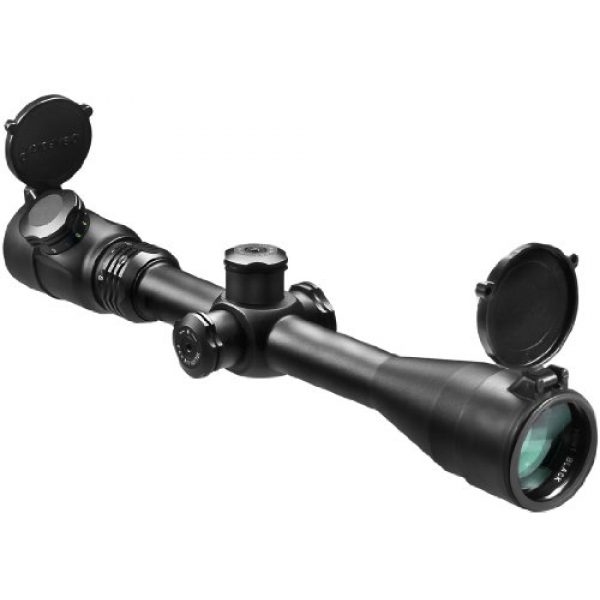

BARSKA Point Black Side Parallax Riflescope (Black Matte, 6-24×40 IR)
Product Description
The 6-24×40 Point Black Riflescope from Barska features bullet-drop technology specifically designed for .223 caliber shooting. The scope’s elevation turret is calculated to compensate for the elliptical drop of the .223 with either a 50, 55 or 62 grain bullet. A multi-grain bullet drop compensation chart (B.D.C) is engraved on the elevation turret. The Point Black riflescope can be combined with any of the large selection of firearms that chamber the high velocity .223 bullet.
Amazon.com
Barska’s Point Black series is specifically engineered for the .223 caliber bullet, with a multigrain bullet drop compensation (BDC)
The scope’s bullet drop compensation (BDC) adjustment features 50 grain, 55 grain, and 62 grain options.
chart on the exterior elevation knob to help with trajectory. The multigrain BDC–which features medium to heavyweight 50 grain, 55 grain, and 62 grain options–makes the Point Black scope an ideal choice. Point Black riflescopes also offer side parallax adjustments, helping you correct for slightly out-of-focus parallax conditions, along with fully multicoated optics to ensure the accuracy and precision you need shot after shot. And hunters will love the 6-24×40 scope’s precision 3G reticle, which includes center-lit green, red, and blue illuminated options for low-light targeting.
Other features include a variable low-to-high-power zoom magnification, a high-impact-rated shockproof construction that withstands repeated abuse in rugged shooting conditions, a 1-inch monotube construction, easy grip target-style windage and elevation adjustments, and Barska’s Accu-Lock technology. The Point Black scope–which is nitrogen purged and O-ring sealed for complete waterproof and fogproof protection–includes lens covers and flip-up scope caps and is backed by Barska’s limited lifetime warranty.
Specifications:
Magnification: 6-24x
Objective lens: 40mm
Reticle: 3G IR
The 3G reticle offers center-lit green, red, and blue illuminated settings for low light.
Field of view: 17.3 to 4.2 feet @ 100 yards
Exit pupil: 1.6 to 6.6mm
Eye relief: 3.93 inches
Click value: 1/8 MOA
Tube diameter: 1 inch
Finish: Black matte
Length: 14.25 inches
Weight: 21.89 ounces
Warranty: Limited lifetime
About Barska
Barska is a worldwide sport optics company with strong brand recognition within the optics industry, with corporate offices in La Verne, California, and warehouses and distribution centers in La Verne and Shanghai, China. Barska offers an extensive line of precision sport optics products, such as binoculars, riflescopes, spotting scopes, and telescopes. The product range has been designed and built with the latest optical technology, allowing users to enjoy all their favorite leisure time outdoor activities, including bird watching, outdoor observation, hunting, fishing, stargazing, concerts, and sporting events.
Rifle Scope Product Features
About this item
Precision Aiming: The 6-24x magnification scope features side adjustable parallax and 1/8 MOA click adjustments to improve accuracy.
Quality Construction: The scope comes with fully multi-coated optics, providing impressive viewing clarity. Tube diameter 1″.
Illuminated Reticle: The illuminated 3G glass-etched reticle with adjustable brightness and fast focus eyebell can be used to estimate range and elevation with ease.

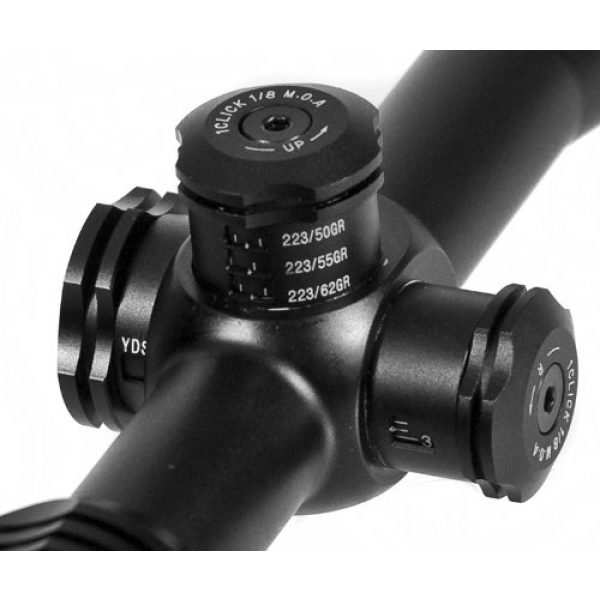

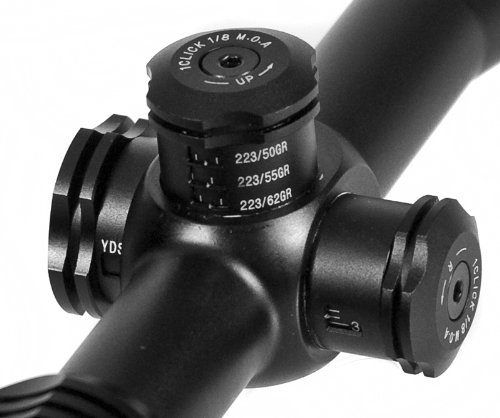

BDC Elevation: The .223 multi-grain B.D.C. chart on the exterior elevation knob features 3 common med to .223 bullet grains: 50, 55, and 62 grain.
Robust Design: The scope is built with extra-rigid construction, being waterproof, fogproof, and shockproof.
AC11392
Specs
Item: AC11392
Field of View(ft@100yds): 17.3ft @ 3x , 4.2ft @ 24x
Eye Relief: 3.93 in
Exit Pupil: 1.6mm – 6.6mm
Click Value: 1/8 MOA
Focal Plane: Second
Length: 14.25″ ; Weight: 21.89 oz ; 1″ Tube Diameter
Included: CR2032 3V Lithium battery ; Lens Cloth ; Flip-up Scope Caps
6-24×40 IR 3G Point Black .223 B.D.C. Rifle Scope
by Barska
The 6-24×40 Point Black Riflescope from Barska features bullet-drop technology specifically designed for .223 caliber shooting. The scope’s elevation turret is calculated to compensate for the elliptical drop of the .223 with either a 50, 55 or 62 grain bullet. A multi-grain bullet drop compensation chart (B.D.C) is engraved on the elevation turret. The rifle scope can be combined any of the large selection of firearms that chamber the high velocity .223 bullet.
6-24x Magnification
40mm Objective Lens
Fully Multi-Coated Optics
.223 B.D.C Elevation
Side Parallax Adjustment
Waterproof, Fogproof and Shockproof
Illuminated Multi-Color 3G Reticle
Adjustable Reticle Brightness Rheostat
Durable, Light Weight Riflescope
This 6-24×40 riflescope is durable and lightweight, perfect for hunting or target practice.
BDC Elevation
The scope comes with a .223 multi-grain bullet drop compensation chart on the exterior elevation knob, featuring 3 common med to heavy weight .223 bullet grains: 50 grain, 55 grain, and 62grain.
Zoom Adjustment
6-24x adjustable zoom allows users to get up close to the target, suitable for mid- to long-range targeting.

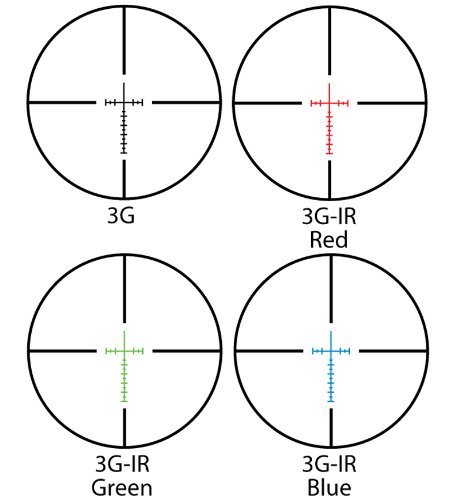

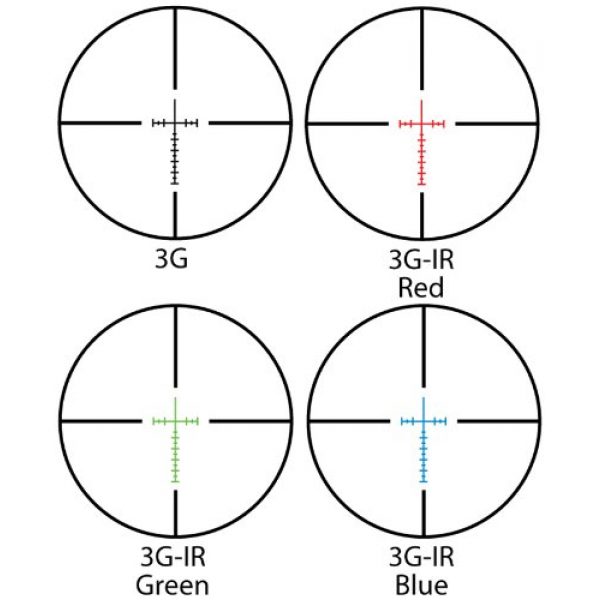

Glass- Etched Reticle
The scope comes with illuminated green/red/blue 3G glass-etched reticle, allowing the shooter to estimate in different lighting environments with high accuracy.
AC11392 AC11386 AC11384 AC11380 AC10046 AC12464
Magnification 6-24x 3-9x 2-7x 6-24x 6-24x 6-24x
Objective Lens 40mm 40mm 32mm 44mm 42mm 50mm
Lens Coating Fully Multi-Coated Fully Multi-Coated Fully Multi-Coated Fully Multi-Coated Fully Multi-Coated Fully Multi-Coated
Click Value 1/8 MOA 1/4 MOA 1/4 MOA 1/8 MOA 1/8 MOA 1/4 MOA
Reticle Illuminated 3G 3G 3G P4 Mil-Dot Illuminated Mil-Dot
Turret .223 B.D.C. .223 B.D.C. .223 B.D.C. External Locking Capped External Locking
Length 14.25″ 12.5″ 11.25″ 14″ 15.7″ 15.25″
Product Weight 21.89 oz 21.16 oz 19.04 oz 22.57 oz 20.46 oz 20.2 oz
About the BARSKA Manufacturer
BARSKA is a premium company for weapon scopes, optics, mounts, and other accessories used for firearms like rifles and long guns. They create and build their mounts, scopes, and related products working with building materials which are durable and long lasting. This includes the BARSKA Point Black Side Parallax Riflescope (Black Matte, 6-24×40 IR) by BARSKA. For more shooting items, visit their site.
What You Need to Know About Scopes
Rifle scopes permit you to exactly align a rifle at various targets by aligning your eye with the target over a range. They do this through magnifying the target using a set of lenses within the scope. The scope’s alignment can be adapted to account for many ecological aspects like wind and elevation increases or decreases to account for bullet drop.
The scope’s purpose is to understand precisely where the bullet will hit based upon the sight picture you are viewing through the scope as you align the scope’s crosshair or reticle with the intended point of impact. The majority of contemporary rifle scopes and optics have around 11 parts which are found within and on the exterior of the scope body. These optic pieces consist of the rifle scope’s body, lenses, elevation turrets or dials, focus rings, and other elements. See all eleven parts of a rifle scope.
The Varieties of Rifle Scopes
Rifle scopes can be either “first focal plane” or “second focal plane” style of scopes. The kind of focal plane a scope has determines where the reticle or crosshair lies in connection with the scopes magnification. It simply suggests the reticle is situated behind or in front of the magnification lens of the scope. Selecting the most reliable type of rifle optic is dependent on what type of hunting or shooting you intend on undertaking.
About First Focal Plane Optics
Focal plane scopes (FFP) include the reticle in front of the zoom lens. These types of scopes are beneficial for:
- Quick acquisition, long distance types of shooting
- Shooting circumstances where calculations are marginal
- Experienced shooters who understand their target “hold over” and also “lead” correlations for their weapon
- Shooters who do not mind the reticle is bigger and uses up more visual eyesight area than a SFP reticle
Info on Second Focal Plane Scopes
Second focal plane scopes (SFP) include the reticle to the rear of the zoom lens. In the FFP example with the SFP scope, the 5x “zoom” 100 yard tick reticle measurement would be 1/5th of the non “zoom” tick reticle measurement.
- Far away forms of shooting where shooters have more time to make ballistic calculations
- Shooting where most shots take place within much shorter ranges and spaces
- Shooters who want a clearer optic picture without area taken up by the larger sized FFP reticle
Ins and Outs of Optic Magnification
The quantity of magnification a scope supplies is figured out by the diameter, density, and curvatures of the lenses inside of the rifle scope. The magnification of the scope is the “power” of the scope.
Fixed Power Lens Rifle Scopes
A single power rifle optic will have a zoom number designator like 4×32. This implies the magnification power of the scope is 4x power and the objective lens is 32mm. The zoom of this type of scope can not fluctuate because it is a set power scope.
Variable Power Lens Rifle Glass
Variable power rifle scopes have adjustable power. These types of scopes will list the magnification level in a format like 2-10×32. These numbers suggest the magnification of the scope can be adjusted in between 2x and 10x power. This always includes the powers in-between 2 and 10. The power modification is accomplished by applying the power ring component of the scope near the back of the scope by the eye bell piece.
Power Levels and Range
Here are some recommended scope power settings and the distances where they may be effectively used. Bear in mind that higher magnification optics and scopes will not be as efficient as lower powered optics due to the fact that increased zoom can be a detractor. The very same idea goes for extended distances where the shooter needs enough power to see exactly where to properly aim the rifle.
Rifle Glass Lens Coating
All cutting-edge rifle glass lenses are layered. Lens covering is a significant aspect of a rifle’s setup when looking at high end rifle optics and scope setups.
HD Versus ED Scope Lens Coatings
Some scope brands also use “HD” or high-definition lens finishings which use different procedures, polarizations, components, and chemicals to draw out different colors and viewable definition through the lens. Some scope makers use “HD” to refer to “ED” to signify the lens has extra-low dispersion glass.
Single Finish Versus Multi-Coating
Different optic lenses can even have different finishes applied to them. All lenses normally have at least some type of treatment or coating applied to them before being used in a rifle scope or optic assembly. Due to the fact that the lens isn’t simply a raw piece of glass, they require performance enhancing coatings. It is part of the carefully tuned optic. It requires a coating to be applied to it so that it will be optimally functional in many kinds of environments, degrees of sunshine (full light VS shade), and other shooting conditions.
This lens treatment can offer protection to the lens from scratches while decreasing glare and other less useful things experienced in the shooting environment while sighting in with the scope. The quality of a single covered lens depends on the scope maker and how much you paid for it.
Some scope makers likewise make it a point to define if their optic lenses are layered or “multi” covered. This indicates the lens has multiple treatments applied to them. If a lens gets numerous treatments, it can show that a producer is taking multiple steps to combat various environmental aspects like an anti-glare coating, a scratch resistant anti-abrasion finishing, followed by a hydrophilic finish. This additionally doesn’t always suggest the multi-coated lens will perform much better than a single coated lens. Being “much better” depends upon the manufacturer’s lens treatment techniques and the quality of components used in developing the rifle optic.
Anti-water Lens Finishes
Water on a lens does not assist with maintaining a clear sight picture through a scope at all. Many top of the line and high-end scope makers will coat their lenses with a hydrophilic or hydrophobic coating which is water repellent.
Alternatives for Mounting Optics on Firearms
Mounting approaches for scopes come in a couple of choices. There are the standard scope rings which are individually installed to the scope and one-piece scope mounts which cradle the scope. These different types of mounts also normally can be found in quick release variations which use throw levers which allow rifle operators to rapidly mount and remove the optics.
Hex Key Scope Ring Mounting Solutions
Normal, clamp design mounting scope rings use hex head screws to mount to the flattop style Picatinny scope mount rails on rifles. These types of scope mounts use two separate rings to support the optic, and are made from 7075 T6 billet aluminum which are created for long range accuracy shooting. This type of scope mount is perfect for rifles which need a long lasting, sound mounting solution which will not move no matter how much the scope is moved or abuse the rifle takes.
Quick-Release Cantilever Rifle Glass Rings
These kinds of quick-release rifle scope mounts can be used to quickly attach and detach a scope from a rifle. If they all use a comparable design mount, multiple scopes can also be swapped out. The quick detach mount style is CNC machined from anodized 6061 T6 aluminum and the mounting levers attach nicely to a flat top design Picatinny rail. This allows the scope to be sighted in while on the rifle, taken off of the rifle, and remounted while preserving precision. These kinds of mounts are useful and convenient for shooting platforms which are moved a lot, to remove the optic from the rifle for protection, or for sight systems which are used between numerous rifles. An example of this mount type is the 30mm mount designed by the Vortex Optics manufacturer. It usually costs around $250 USD
Rifle Optic Tube Sealing and Gas Purging
Moisture inside your rifle scope can mess up a day of shooting and your pricey optic by bringing about fogging and developing residue inside of the scope tube. A lot of scopes prevent wetness from entering the scope tube with a system of sealing O-rings which are water resistant.
Gas Purged Rifle Optic Tubes
Another element of preventing the buildup of moisture within the rifle scope tube is filling the tube with a gas like nitrogen. Because this space is already occupied by the gas, the scope is less impacted by temperature alterations and pressure differences from the outside environment which might potentially permit water vapor to permeate in around the seals to fill the vacuum which would otherwise be there. These are good qualities of a decent rifle scope to seek out.
