Description
Rifle Scope Product Details

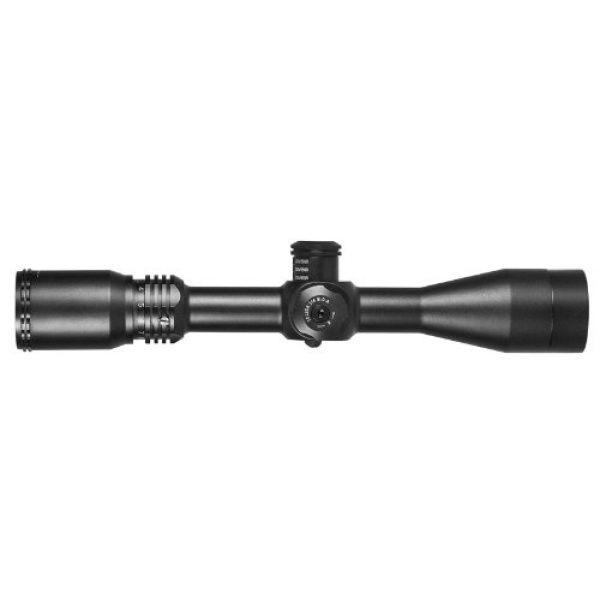

BARSKA Point Black Side Parallax Riflescope (Black Matte, 3-9×40)
Product Description
The 3-9×40 Point Black Riflescope from Barska features bullet-drop technology specifically designed for . 223 caliber shooting. The scope’s elevation turret is calculated to compensate for the elliptical drop of the . 223 with either a 50, 55 or 62 grain bullet. A multi-grain Bullet Drop Compensation chart (B. D. C) is engraved on the elevation turret, allowing for quick and accurate adjustments to the elevation. The Point Black Rifle Scope is the perfect addition to any varmint rifle, bolt action rifle, semiautomatic rifle, AR-15 / M-16 rifles, Mini-14, and any of the large selection of firearms that chamber the high velocity . 223 bullet.
Amazon.com
Barska’s Point Black series is specifically engineered for the .223 caliber bullet,
The scope’s bullet drop compensation (BDC) adjustment features 50 grain, 55 grain, and 62 grain options.
with a multigrain bullet drop compensation (BDC) chart on the exterior elevation knob to help with trajectory. The multigrain BDC–which features medium to heavyweight 50 grain, 55 grain, and 62 grain options–makes the Point Black scope an ideal choice for the large selection of high-velocity .223 firearms, including such firearms as varmint rifles, bolt action rifles, semi-automatic rifles, AR-15/M-16 assault rifles, Mini-14 rifles, and ranch rifles. Point Black riflescopes also offer side parallax adjustments, helping you correct for slightly out-of-focus parallax conditions, along with fully multicoated optics to ensure the accuracy and precision you need shot after shot. Other features include a 3G reticle, a variable low-to-high-power zoom magnification, a high-impact-rated shockproof construction that withstands repeated abuse in rugged shooting conditions, a 1-inch monotube construction, easy grip target-style windage and elevation adjustments, and Barska’s Accu-Lock technology. The Point Black scope–which is nitrogen purged and O-ring sealed for complete waterproof and fogproof protection–includes lens covers and flip-up scope caps and is backed by Barska’s limited lifetime warranty.
Specifications:
Magnification: 3-9x
Objective lens: 40mm
Waterproof: Yes
Fogproof: Yes
Reticle: 3G

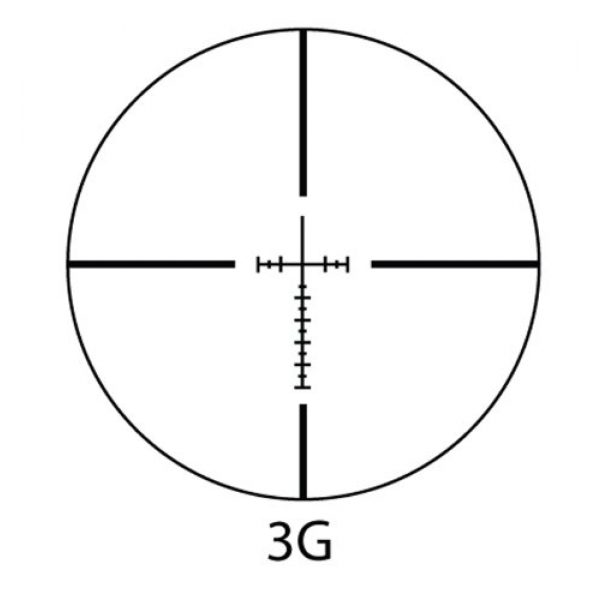

The scope includes a 3G glass-etched reticle.
Exit pupil: 4.4 to 13.3mm
Optical coating: Fully multicoated
Field of view: 33 to 11 feet @ 100 yards
Eye relief: 3.93 inches
Click value: 1/4 inch
Adjustment knob: Side parallax adjustment
Tube diameter: 1 inch
Finish: Black matte
Length: 12.25 inches
Weight: 21.16 ounces
Warranty: Limited lifetime
About Barska
Barska is a worldwide sport optics company with strong brand recognition within the optics industry, with corporate offices in La Verne, California, and warehouses and distribution centers in La Verne and Shanghai, China. Barska offers an extensive line of precision sport optics products, such as binoculars, riflescopes, spotting scopes, and telescopes. The product range has been designed and built with the latest optical technology, allowing users to enjoy all their favorite leisure time outdoor activities, including bird watching, outdoor observation, hunting, fishing, stargazing, concerts, and sporting events.
Rifle Scope Product Features
Precision Aiming: The 3-9x magnification scope features side adjustable parallax and 1/4 MOA click adjustments to improve accuracy.
Quality Construction: The scope comes with fully multi-coated optics, providing impressive viewing clarity. Tube diameter 1″.
3G Reticle: The scope is provisioned with a 3G glass-etched reticle and fast focus eyebell to improve rangefinidng capability.

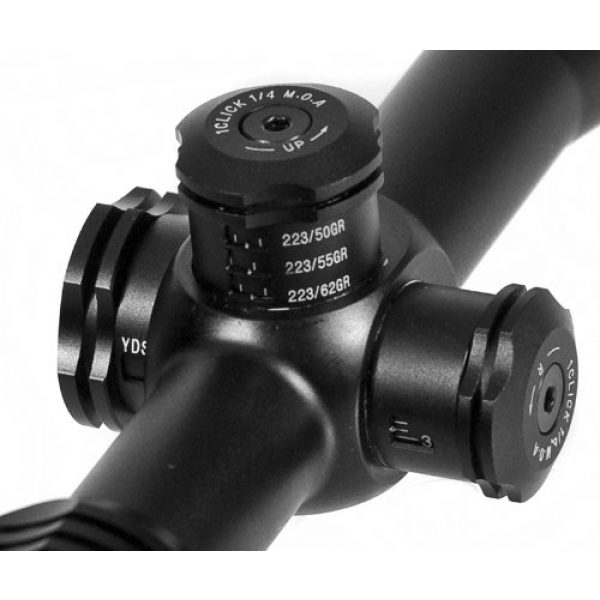

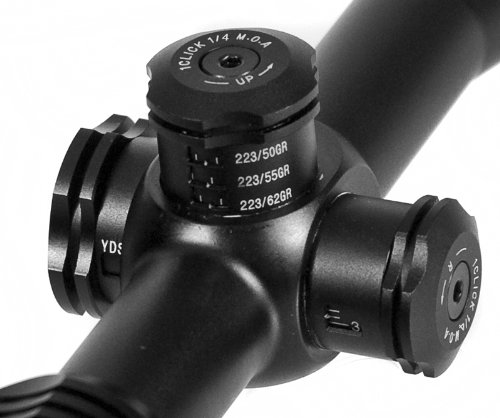

BDC Elevation: The . 223 multi-grain B. D. C. chart on the exterior elevation knob features 3 common med to . 223 bullet grains: 50, 55, and 62 grain.
Robust Design: The scope is built with extra-rigid construction, being waterproof, fogproof, and shockproof.
AC11386
Specs
Item: AC11386
Field of View(ft@100yds): 33ft@3x, 11ft@9x
Eye Relief: 3.93 in
Exit Pupil: 4.4mm, 13.3mm
Click Value: 1/4 MOA
Focal Plane: Second
Length: 12.5″ ; Weight: 21.16 oz ; 1″ Tube Diameter
Included: Lens Cloth ; Flip-up Scope Caps
3-9×40 3G Point Black .223 B.D.C. Rifle Scope
by Barska
The 3-9×40 Point Black Riflescope from Barska features bullet-drop technology specifically designed for .223 caliber shooting. The scope’s elevation turret is calculated to compensate for the elliptical drop of the .223 with either a 50, 55 or 62 grain bullet. A multi-grain BDC chart is engraved on the elevation turret, allowing for quick and accurate elevation adjustments. The scope is the perfect addition to any of the large selection of firearms that chamber the high velocity .223 bullet.
3-9x Magnification
40mm Objective Lens
Fully Multi-Coated Optics
.223 B.D.C Elevation
Side Parallax Adjustment
Waterproof, Fogproof and Shockproof
3G Reticle
Fast Focus Eyebell
Durable, Light Weight Riflescope
This 2-7×32 riflescope is durable and lightweight, perfect for hunting or target practice.
BDC Elevation
The scope comes with a .223 multi-grain bullet drop compensation chart on the exterior elevation knob, featuring 3 common med to heavy weight .223 bullet grains: 50 grain, 55 grain, and 62grain.
Zoom Adjustment
2-7x adjustable zoom allows users to get up close to the target, suitable for mid- to short-range targeting.
Glass- Etched Reticle
The scope comes with 3G glass-etched reticle, allowing the shooter to estimate range and improve accuracy.
AC11386 AC11392 AC11384 AC11310 AC11668 AC10032
Magnification 3-9x 6-24x 2-7x 3-9x 3-9x 3-9x
Objective Lens 40mm 40mm 32mm 40mm 42mm 40mm
Lens Coating Fully Multi-Coated Fully Multi-Coated Fully Multi-Coated Multi-Coated Multi-Coated Fully-Coated
Click Value 1/4 MOA 1/8 MOA 1/4 MOA 1/4 MOA 1/4 MOA 1/4 MOA
Reticle 3G Illuminated 3G 3G Illuminated Cross 30/30 Illuminated Mil-Dot Easy Shot
Turret .223 B.D.C. .223 B.D.C. .223 B.D.C. Capped External Locking Capped
Length 12.5″ 14.25″ 11.25″ 12.75″ 10″ 12.2″
Product Weight 21.16 oz 21.89 oz 19.04 oz 16 oz 20 oz 12.9 oz
About the BARSKA Company
BARSKA is a premium manufacturer for firearm scopes, optics, mounting solutions, and other accessories used for guns like rifles and long guns. They design and supply their mounts, scopes, and related products choosing building materials which are long lasting and resilient. This includes the BARSKA Point Black Side Parallax Riflescope (Black Matte, 3-9×40) by BARSKA. For more shooting items, visit their site.
Rifle Glass Facts
Rifle scopes allow you to precisely align a rifle at different targets by aligning your eye with the target over a range. They do this through zoom by employing a set of lenses inside the scope. The scope’s positioning can be adapted for the consideration of different ecological aspects like wind and elevation to make up for bullet drop.
The scope’s purpose is to understand exactly where the bullet will hit based upon the sight picture you are seeing through the optic as you line up the scope’s crosshair or reticle with the intended point of impact. The majority of contemporary rifle scopes have around eleven parts which are located internally and externally on the optic. These parts include the rifle scope’s body, lenses, windage turrets, focus rings, and other elements. Learn about the eleven parts of optics.
The Styles of Rifle Scopes
Rifle scopes can be either “first focal plane” or “second focal plane” type of scopes. The sort of focal plane a scope has establishes where the reticle or crosshair lies in regard to the optic’s magnification. It simply suggests the reticle is behind or in front of the magnification lens of the scope. Picking the most ideal form of rifle glass is dependent on what type of shooting you intend on undertaking.
First Focal Plane Scopes
Focal plane scopes (FFP) include the reticle in front of the zoom lens. These kinds of scopes are beneficial for:
- Quick acquisition, long distance kinds of shooting
- Shooting situations where calculations are very little
- Experienced shooters who understand their target “hold over” as well as “lead” equations for their long guns
- Shooters who don’t mind the reticle is enlarged and uses up more visual eyesight space than a SFP reticle
Second Focal Plane Scopes
Second focal plane optics (SFP) come with the reticle behind the magnification lens. In the FFP example with the SFP scope, the 5x “zoom” 100 yard tick reticle measurement would be 1/5th of the non “zoom” tick measurement.
- Far away forms of shooting where shooters have extra time to make ballistic estimations
- Shooting where most of the shots occur within shorter ranges and proximities
- Shooters who choose a clearer optic sight picture without room used up by the larger size FFP reticle
About Rifle Glass Magnification
The extent of scope zoom you need depends on the form of shooting you want to do. Almost every kind of rifle glass gives some degree of zoom. The amount of zoom a scope offers is identified by the dimension, thickness, and curves of the lenses within the rifle scope. The magnification of the scope is the “power” of the opic. This indicates what the shooter is observing through the scope is amplified times the power factor of what can typically be seen by human eyes.
Single Power Lens Rifle Scope Details
A single power rifle optic uses a magnification number designator like 4×32. This indicates the zoom power of the scope is 4x power while the objective lens is 32mm. The magnification of this kind of optic can not fluctuate because it is a set power scope.
Variable Power Lens Rifle Optics
Variable power rifle scopes can be adjusted between magnification power levels. These types of scopes will note the magnification degree in a format like 2-10×32. These numbers imply the magnification of the scope could be adjusted in between 2x and 10x power. This always utilizes the power levels in-between 2 and 10. The power manipulation is achieved by applying the power ring component of the scope near the back of the scope by the eye bell.
The Power Level and Range Correlation of Rifle Scopes
Here are some suggested scope powers and the distances where they could be efficiently used. Highly magnified scopes will not be as efficient as lower magnification optics considering too much zoom can be a negative aspect depending on your shooting distance. The same relates to longer ranges where the shooter needs to have increased power to see exactly where to properly aim the rifle.
About Lens Finishes
All modern-day rifle scope lenses are covered in special coatings. There are various types and qualities of glass coverings. Lens coating can be a crucial aspect of a rifle when thinking about high-end rifle optics and scope systems. The lenses are among the most essential components of the glass considering they are what your eye sees through while sighting a rifle in on the point of impact. The finishing on the lenses shields the lens surface area as well as assists with anti glare from excess sunlight and color perception.
HD Versus ED Lens Coatings
Some scope producers likewise use “HD” or high-definition lens finishings which use different processes, chemicals, polarizations, and elements to draw out various colors and viewable quality through the lens. Some scope manufacturers use “HD” to refer to “ED” implying extra-low dispersion glass.
Single Coating Versus Multi-Coating for Glass
Various optic lenses can also have various coatings applied to them. All lenses typically have at least some type of treatment or coating applied to them before they are used in a rifle scope or optic assembly. This is due to the fact that the lens isn’t simply a raw piece of glass. It is part of the carefully tuned optic. It must have a finishing placed on it so that the lens will be optimally usable in lots of types of environments, degrees of light (full light VS shade), and other shooting conditions.
Single layered lenses have a treatment applied to them which is usually a protective and enhancing multi-purpose treatment. This lens treatment can safeguard the lens from scratches while decreasing glare and other less advantageous things experienced in the shooting environment while sighting in with the optic. The quality of a single covered lens depends on the scope developer and how much you spent for it. Both the make and cost are indicators of the lens quality.
Some scope producers similarly make it a point to specify if their optic lenses are coated or “multi” covered. Being “better” depends on the manufacturer’s lens treatment innovation and the quality of materials used in developing the rifle scope.
Scope Lens Hydrophobic Covering
Water on a lens does not help with preserving a clear sight picture through a scope at all. Lots of top of the line and military grade scope makers will coat their lenses with a hydrophobic or hydrophilic finish.
Optic Installation Choices
Installing solutions for scopes can be found in a few choices. There are the basic scope rings which are individually installed to the optic and one-piece scope mounts which cradle the scope. These different types of mounts also generally can be found in quick release versions which use throw levers which enable rifle operators to quickly install and dismount the optics.
Hex Key Glass Ring Mounting Solutions
Basic, clamp style mounting optic rings use hex head screws to fix to the flattop design Picatinny scope mount rails on the tops of rifles. These types of scope mounts use two independent rings to support the optic, and are normally constructed from 7075 T6 billet aluminum which are developed for far away precision shooting. This form of scope mount is exceptional for rifle systems which are in need of a durable, hard use mount which will not move regardless of just how much the scope is moved about or jarring the rifle takes. These are the type of mounts you really want to have for a devoted optics setup on a long distance scouting or competition rifle that will almost never need to be changed or recalibrated. Blue 242 Loctite threadlocker can additionally be used on the scope mount screws to protect against the hex screw threads from wiggling out after they are installed safely in position. An example of these mounting rings are the 30mm type from the Vortex Optics brand. The set usually costs around $200 USD
Optic Mounting Solutions with Quick-Release Cantilever Rings
These kinds of quick-release rifle scope mounts can be used to rapidly take off a scope from a rifle and reattach it to a different rifle. If they all use a similar style mount, multiple scopes can often be switched out on the range. The quick detach design is CNC machined from anodized 6061 T6 aluminum and the mounting levers attach tightly to a flat top style Picatinny rail. This enables the scope to be sighted in while on the rifle, removed from the rifle, and remounted while maintaining accuracy. These kinds of mounts come in convenient for shooting platforms which are transported a lot, to take off the scope from the rifle for protection, or for sight systems which are used in between multiple rifles. An example of this mount style is the 30mm mount designed by Vortex Optics. It generally costs around $250 USD
What to Know About Glass Tube Sealing and Gas Purging
Moisture inside your rifle scope can mess up a day of shooting and your pricey optic by bringing about fogging and developing residue inside of the scope tube. Many scopes avoid wetness from getting in the scope tube with a system of sealing O-rings which are waterproof.
Details on Optic Tube Gas Purging
Another element of avoiding the accumulation of wetness within the rifle scope tube is filling the tube with a gas like nitrogen. Given that this area is already taken up by the gas, the scope is less influenced by temperature shifts and pressure differences from the outside environment which could possibly enable water vapor to seep in around the seals to fill the vacuum which would otherwise exist. These are good qualities of a good rifle scope to look for.
